Napco Gemini P801 Security Panel, 9 Zones

SKU: NPGEMP801

Usually ships in 3-5 days.

$119.86

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

9-Zone Control Panel With 8 User Codes

The Napco Gemini P801 Security Panel, 9 Zones offers an affordable, yet full-featured foundation for a Napco security system. Cover your whole home or office with 9 programmable zones, including six hardwire or wireless zones, two wireless zones, and one 2-wire fire zone.

  • Offers 9 programmable zones, including one 2-wire fire zone
  • Supports up to 8 users, 2 keypads, and 50 logged events
  • Compatible with all standard Gemini crystal-control wireless technology
  • PC programmable with PCD-Windows
  • Intuitive setup via EZ programming at keypad

Programming for the panel is easy with the Napco PCD-WINDOWS software (sold separately). With EZ programming, users can also easily set up the system through a keypad (sold separately).

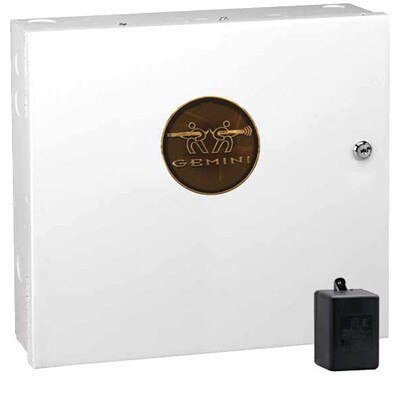

The panel also includes support for line and bell-cut supervision, double reporting and backup reporting, and multiplex expandability. It offers fuseless maintenance-free operation, and the package comes with the P801 controller in an enclosure, an integral digital communicator, and a plug-in transformer.

Built By Security Professionals For Security Professionals

The Napco Security Group is a leading diversified manufacturer of security products, encompassing burglar and fire alarms, access control systems, video and electronic digital and proximity locks, as well as panic exit hardware. Sold and installed by tens-of-thousands of security professionals, from security dealers to locksmiths to systems integrators, millions of homes, businesses, institutions and people around the globe are protected by products from the Napco Group of Companies.

Specifications

Product Features

  • Multiplex expandability using built-in EZMs in custom alpha keypads or 8-zone expansion modules
  • Up/Downloading, including unique PC-preset unattended method
  • EZ wire full-size terminal strips
  • EZ-Programming mode at keypad
  • Choice of Gemini RF receivers and transmitters
  • Multi-stage lightning protection
  • Event log with open/close suppression
  • NetLink intranet/internet alarm reporting option
  • X-10 Support with optional GEM-X10 interface
  • Telco line cut supervision
  • Support for VOIP (voice over internet protocol) communications
  • Support all major communication formats and secondary pager format
  • SIA CP01 compliant versions available
  • Includes transformer

Technical Details

Current and Voltage Ratings

  • Alarm Output:
    • Burg: 12 VDC, 2A (max.)
    • Fire: 12 VDC, 65 mA
  • Output Current Limiting:
    • Burg/Fire: 2.25 A
    • AUX Power: 750 mA
  • Residential Burglary (4 Hour Standby):
    • Combined Standby Current: 500 mA
    • Bell Output: 2 A (Using Rechargeable 12 VDC 4 AH BATTERY, minimal requirement)
  • Residential Fire (4 Hour Standby):
    • Combined Standby Current: 500 mA
    • Bell Output: 65 mA (Using Rechargeable 12 VDC 4 AH BATTERY, minimal requirement)
  • Residential Fire (24 Hour Standby):
    • Combined Standby Current: 120 mA
    • Bell Output: 95 mA (Using Rechargeable 12 VDC 7 AH BATTERY, minimal requirement)

Transformer and Battery

  • Required Transformer: NAPCO TRF12 OR BASLER 16.5 VAC 20VA
  • Required Battery: 12V 4 AH or 7 AH Rechargeable (Change Battery every 5 years or as required)
  • Maximum Charging Current: 165 mA
  • Maximum Input Current: 2.58 A

Loop Characteristics

  • Loop Voltage: 5 Volts
  • Loop Current: 1.1 mA
  • Loop Resistance: 100 ohms per zone (max.)

Device Specifications

  • Max # keypads: 4, GEM-RP8 current = 65 mA
  • Max # of receivers: 2, GEM-RECV-XP8 current = 65 mA each
  • Max # of compatible 2-wire smoke detectors: 10
  • Max Keypad wire length: 1000 feet total wire length
  • Housing Dimensions: 11(H) x 12-1/8(W) x 3(D) inches (28 x 30.8 x 7.6 cm)
  • Weight: 5.5 pounds
  • Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
  • Listings/Approvals:
    • UL HOUSEHOLD FIRE AND BURGLARY WARNING SYSTEM CONTROL UNIT, STANDARDS # 1023, 985
    • California State Fire Marshal (CSFM) – Control Unit (Household) # 7187-0992:126
    • VERIFIED TO COMPLY WITH F.C.C. PART 15 AS CLASS B : DIGITAL DEVICE
