Napco Gemini P3200 Hybrid Security Panel, 8-32/48 Zones

Schedule Up To 255 Events

The Napco Gemini P3200 Hybrid Security Panel, 8-32/48 Zones is an 8-zone hybrid control panel that can be expanded to 32 zones or 48 RF wireless points. This microcomputer-based burglary and residential fire alarm control panel features a built-in scheduler that allows you to program up to 255 scheduled events. The P3200 also offers an onboard programmable lug and GEM-ACCESS access control compatibility, allowing versatile use in most residential and commercial applications.

• 8 to 32 hardwired or wireless zones/points; up to 48 RF wireless points
• Allows you to program up to 255 scheduled events
• Supports up to 48 users, 7 keypads, and 800 logged events
• Compatible with GEM-ACCESS access control

With EZ programming, users can easily set up the system through a keypad. The panel also includes support for two RF receivers, an interior bypass group, automatic system arming/disarming, and three relay outputs (expandable to 24). This hardwire/wireless control panel also features programmable partitioning, allowing independent control of two separate areas. Its exclusive V.A.L.I.D. feature (Verifying Automatic Line Integrity Diagnostic) reduces false alarms due to changes in line resistance. Additionally, the overview mode permits monitoring and control of total system from one keypad.

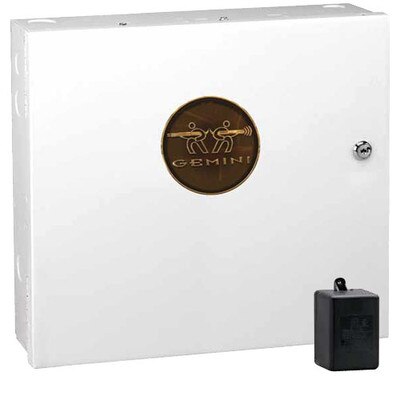

The control panel features fuseless maintenance-free operation. It comes with the P3200 controller in an enclosure, an integral digital communicator, and a step-down transformer.

Built By Security Professionals For Security Professionals

The Napco Security Group is a leading diversified manufacturer of security products, encompassing burglar and fire alarms, access control systems, video and electronic digital and proximity locks, as well as panic exit hardware. Sold and installed by tens-of-thousands of security professionals, from security dealers to locksmiths to systems integrators, millions of homes, businesses, institutions and people around the globe are protected by products from the Napco Group of Companies.

Product Features

Control Panel

• 8 End-of-line-resistor burglary zones programmable for area, exit/entry delay, interior, follower, day zone, chime, fire options, sensor watch, swinger shutdown, zone anding and a variety of other features
• Up to 48 points of up to 32 zones with optional zone-expansion modules 4- zone keypad EZMs (built-in)
• Including up to 2 2-wire fire zones
• Up to 32 individually coded users, each with a programmable authority level
• 3 on-board relay outputs, expandable 24 external relay outputs
• 3 keypad panics: fire, police and auxiliary
• 2 independent area partitions
• Up to 7 separate access stations by up to 32 users
• Up to 24 separately-addressable X-10 devices with the GEM-X10KIT
• English-language prompts and system status messages from choice of keypad (8) models
• User-customized zone descriptions, reprogrammable as required
• 2-wire and 4-wire smoke detectors
• Reports alarms, restores and troubles by zone
• 255 event schedule
• 800 event log
• Overview mode permits monitoring and control of total system from one keypad
• 2 programmable entry delay times
• Interior-bypass group
• Dynamic battery test interrupts charging and places battery under load every four hours
• Chime by zone; programmable duration
• Non-volatile RAM retains memory during power losses
• Quickloader programmable
• Auto-Download Log
• Exclusive V.A.L.I.D. feature (Verifying Automatic Line Integrity Diagnostic) reduces false alarms due to changes in line resistance

Communicator

• Compatible with all major receiver formats, including BFSK, 4/2, Modem 2, SIA, 4/3/1, 4 + 2 Express and Point ID
• Rotary dial and TouchTone with Rotary backup
• 3 20-digit telephone numbers
• Backup reporting, double reporting; split reporting
• 32 User codes with opening/closing reporting by user
• AC failure reporting with programmable report delay
• Supervised telephone line cut with programmable delay
• Pager capability

Technical Details

• Panel Dimensions: 12.375(L) x 13.875(W) x 3.55(H) inches (without cover)
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Input Power: 16.5VAC via CLASS 2 Plug-In 40VA or 50VA Transformer
• Loop Voltage: 10-13VDC
• Loop Current: 2.4mA with 2.2K Ohm end-of-line resistor (Model EOL2.2K); 5mA for 2-wire smoke-detector zones; 1.4 mA using a 3.9K Ohm resistor (Model EOL 3.9K) with Zone Doubling
• Loop Resistance: 300W max.; 50W for 2-wire smoke-detector zones
• Relay Outputs (Burglary; Reset; Aux): Wet, 12Vdc, 1.2A max.; Dry (cut related jumper for dry contacts; see Wiring Diagram), SPDT contacts 24Vdc, 2A, 0.6 PF
• Auxiliary Power Output: 12VDC regulated
• Remote Power Output: 12VDC regulated (for keypads)
