Luxul Epic 4 Multi-WAN Gigabit Router

Share Gigabit Internet Across Your Network

Create the ultimate network platform effortlessly with the Luxul Epic 4 Multi-WAN Gigabit Router. This gigabit network router includes 6 ports to create and connect powerful networks with secure remote access and configuration. Powerful web content filtering, dual-WAN capabilities, and VPN and VLAN support make your network smarter, safer, and more reliable. Rear connection ports and front facing LEDs exhibit provide an optimized and aesthetically pleasing design.

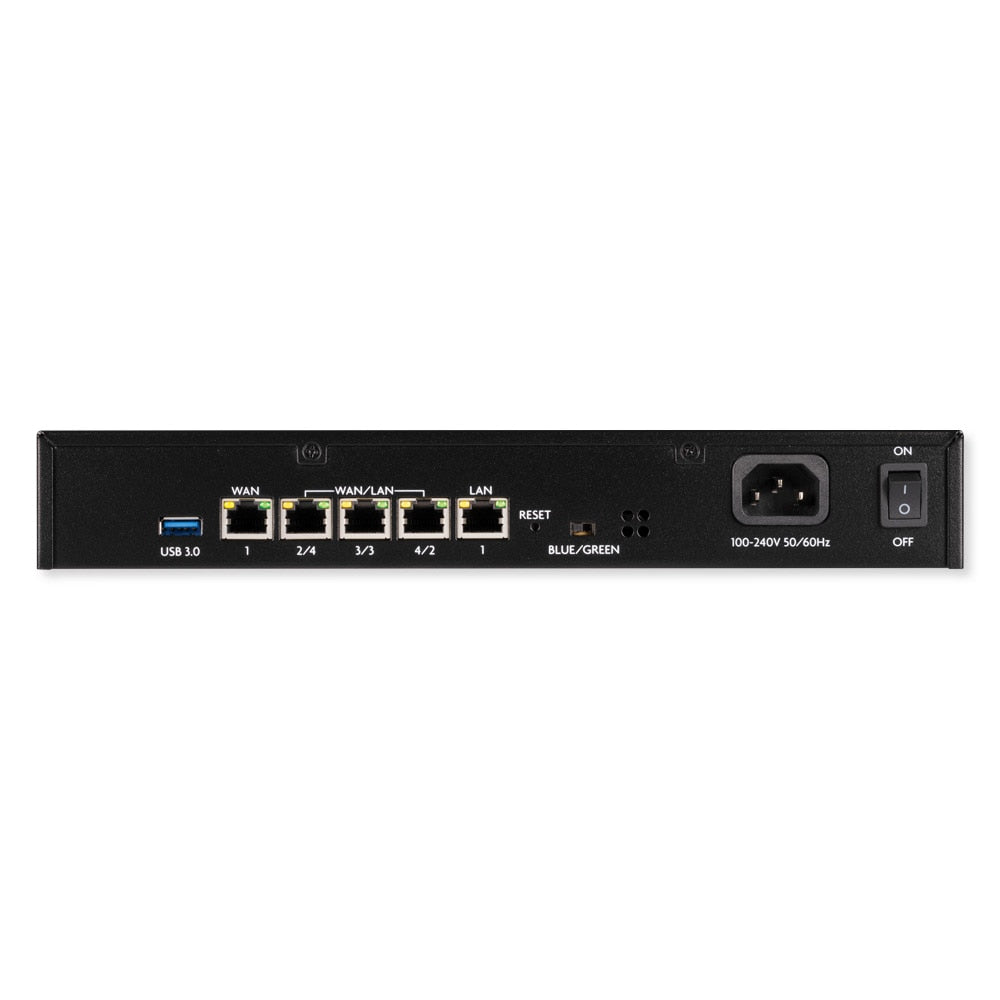

• 6 Connectivity Ports: 1 Dedicated WAN, 1 Dedicated LAN, 3 LAN/WAN Configurable Ports, and 1 USB
• Build and manage Virtual Private and Virtual Local Area Networks using Domotz* online service
• ProWatch compatibility enables remote monitoring and control of this device and devices connected to the router
• Multi-WAN Capability: Connect the LAN to multiple internet connections with load-balancing and failover control
• Custom Content Filtering: Customizable web content filtering and scheduling to control when and how the network is used
• Users choose between blue or green glow for front-facing LEDs

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

• ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
• ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
• ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Enabled and ProWatch+ device, this device allows for remote monitoring of a single network, either local or remote, and devices connected to the network, as well as allowing for remote reboots, power cycling, firmware updates, and notification delivery.

Installation Details

The gigabit router can be rack-mounted or placed upon your desktop, shelf, or other flat surface. Make sure there is adequate space around the router for proper ventilation and heat dissipation. For desktop/shelf installation, attach the included four rubber feet to the indentation corners on the bottom of the router before placing the router on a solid, level platform. The router can fit into a 19-inch server or AV rack using the included L brackets.

Contents

• Multi-WAN Gigabit Router
• (2) Rack Mounting Ears
• (4) Rubber Feets
• Power Cord
• Quick Install Guide

NOTE: Requires an ethernet cable and Internet connection to access online web browser.
*Domotz remote network monitoring sold separately.

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

Product Features

• Fanless for Silent Operation
• DDNS Service & MAC Address Cloning
• DHCP Server, Client Address Reservation
• Backup & Restore Configurations
• Firmware Upgradeable via Browser

Technical Details

• Manufacturer Part #: ABR-4500
• UPC: 655003920161
• Interface
• One 10/100/1000M WAN Port (Auto MDI/MDIX)
• One 10/100/1000M LAN Ports (Auto MDI/MDIX)
• Three 10/100/1000M LAN/WAN Configurable Ports (Auto MDI/MDIX)
• One USB 3.0 Port
• Button: Reset Button
• Power: Internal Switched Power: AC 100-240V 50/60Hz 0.3A Input
• Max Power Consumption: 12 Watts
• VPN Support: PPTP, L2TP, IPsec
• VLAN/Guest Network Support: Yes
• Dimensions: 11.6" L x 7" W x 1.75" H (294 L x 178.8 Wx 44.5 Hmm)
• Weight: 2.85 lbs (1.30 kg)
• LEDs: Power, SYS, USB, WAN, LAN, WAN/LAN (3)
• Certifications: CE, FCC, RoHS
• Warranty: 3-Year Limited

»Luxul ABR-4500 Epic 4 Multi-WAN Gigabit Router Spec Sheet(.pdf)
»Luxul ABR-4500 Epic 4 Multi-WAN Gigabit Router Installation Manual (.pdf)
