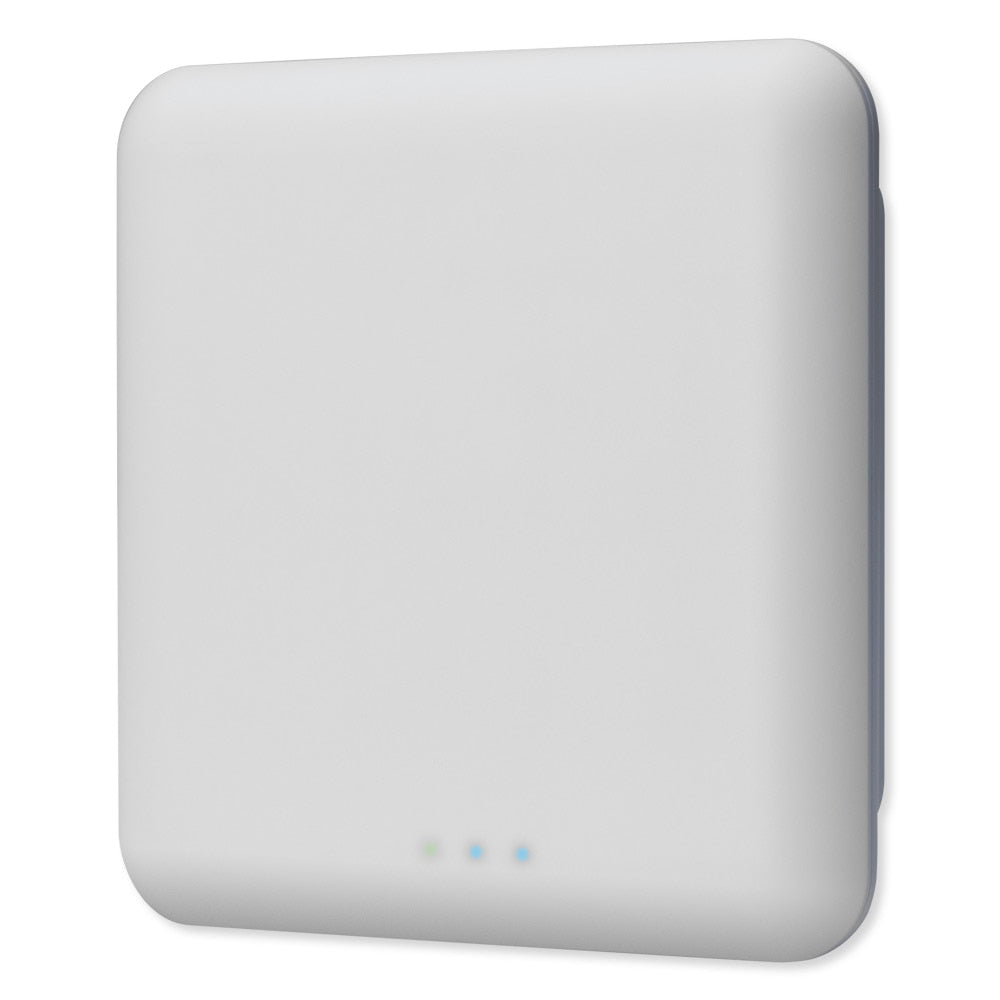

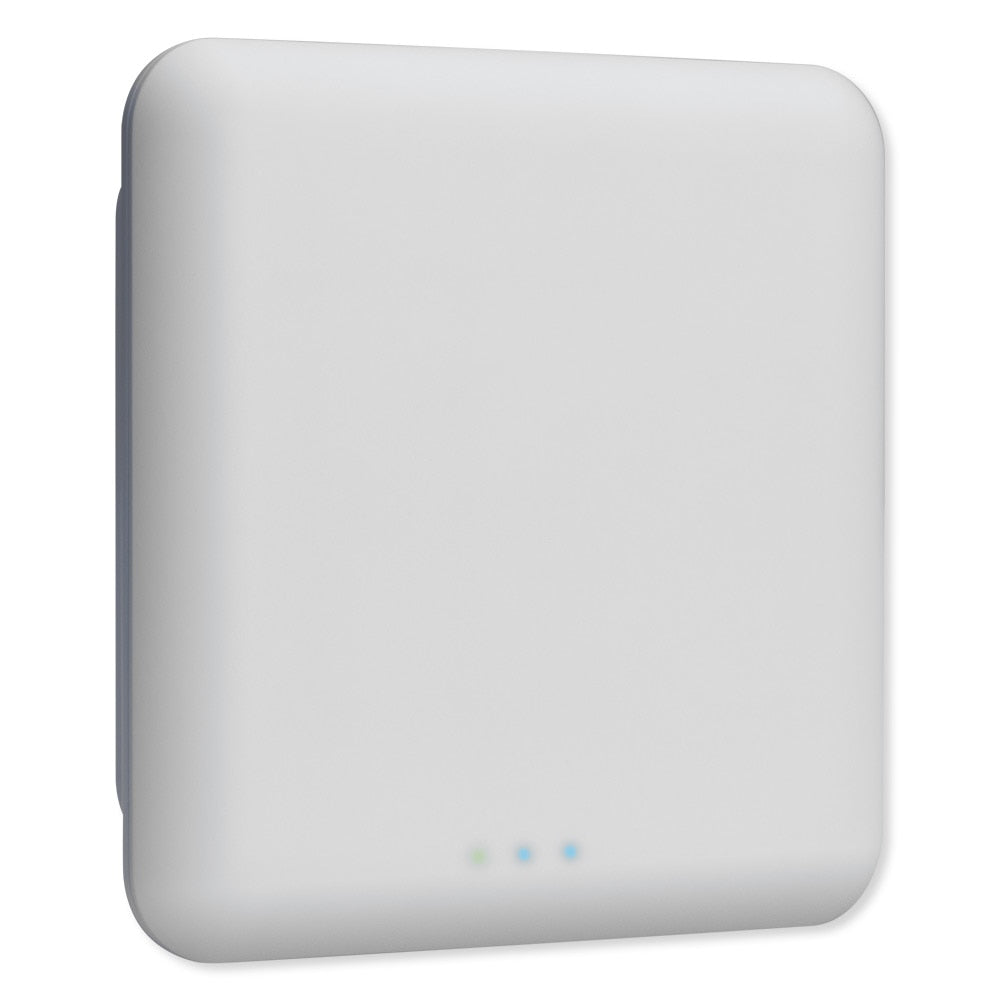

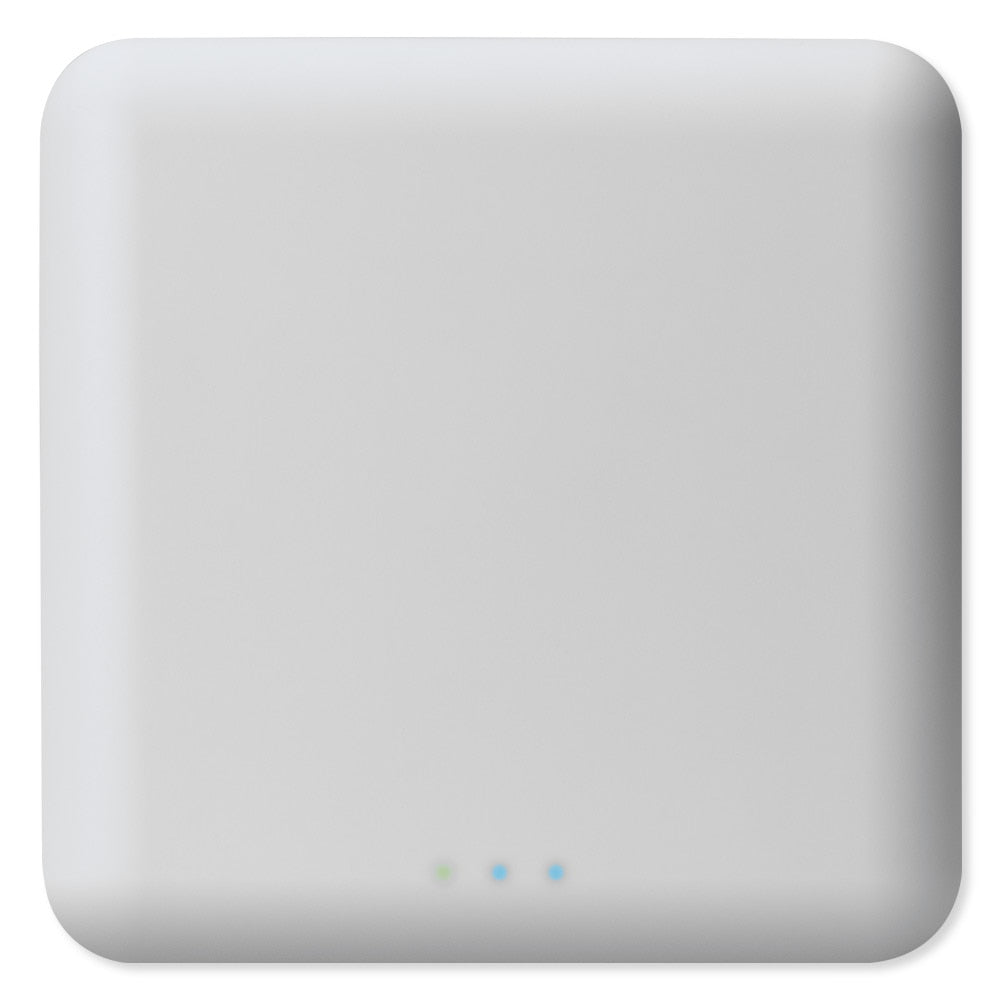

Luxul AC1900 High Power Dual-Band Wireless Access Point

Add Gigabit Wireless Coverage to Your Network

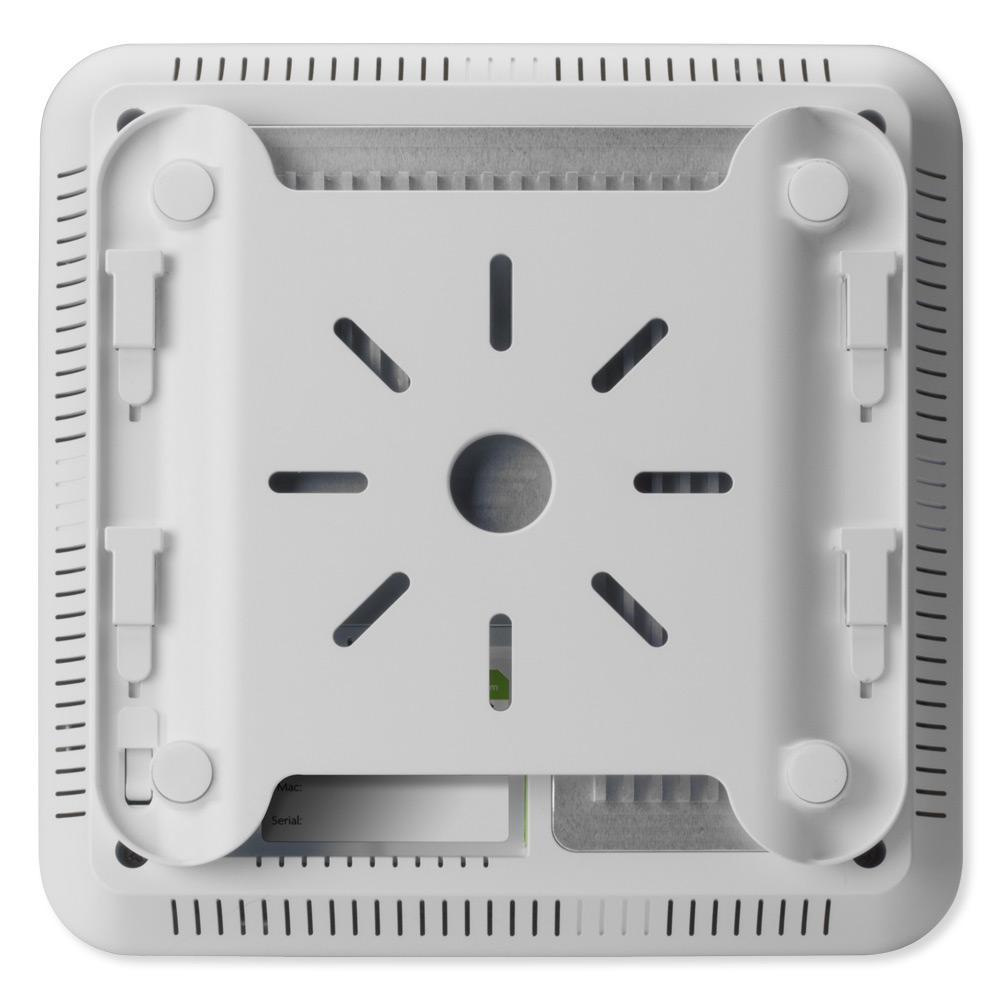

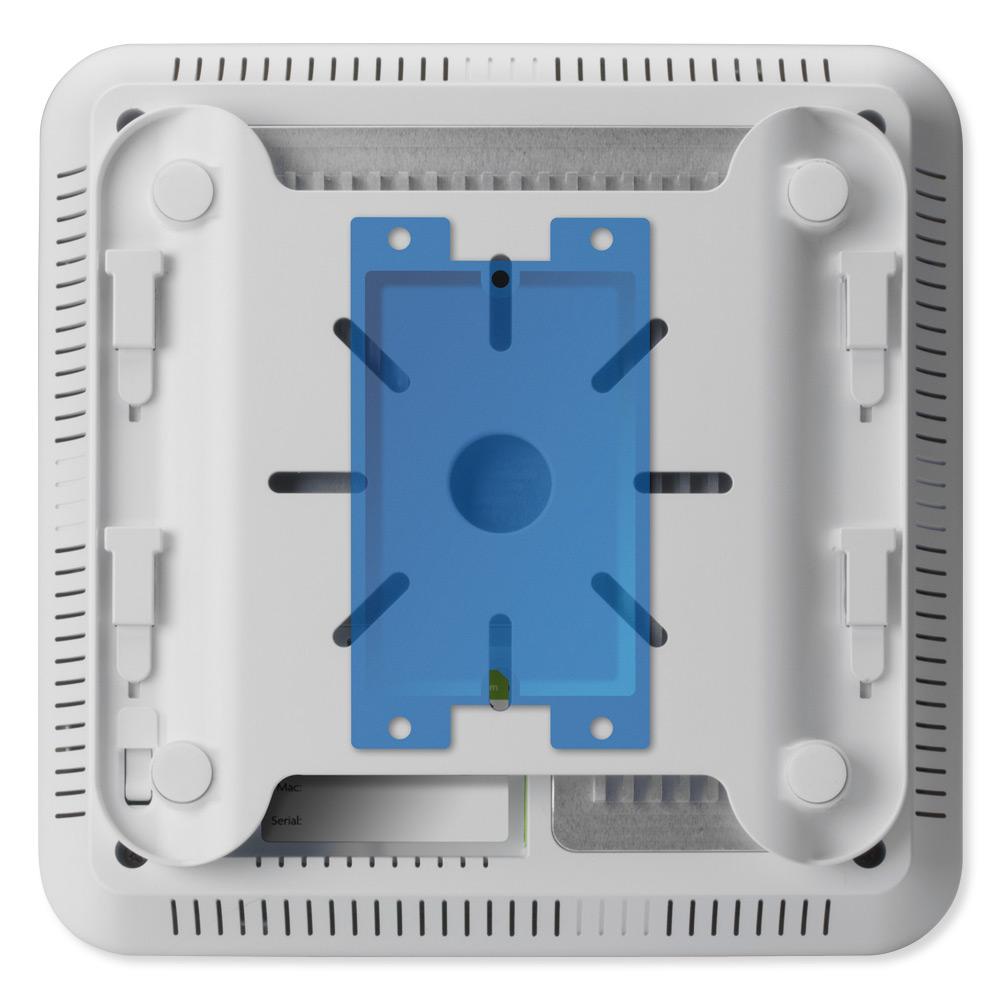

Deliver high speed Wi-Fi coverage with the Luxul High Power AC1900 Dual-Band Wireless Access Point. This wireless access point delivers reliable WiFi coverage across dual-band frequencies with speeds to 1.3 Gbps. The Dual-Band Wireless Access Point can be set up as the single wireless gateway to your local network or as one of multiple access points within a single network. Installation is fast and simple thanks to its PoE injector port and its universal mounting design that allows it to be placed on most flat surfaces.

• Stream data up to 600 Mbps at 2.4GHz and 1.3 Gbps at 5GHz
• Supports high-bandwidth tasks including HD streaming, video surveillance, or gaming applications
• Compatible with the Luxul XWC-1000 Wireless Controller
• Supports up to 4 SSID's per Band, up to 8 SSIDs total
• VLAN supports creation of a secure guest network
• PoE connection simplifies installation

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

• ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
• ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
• ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Enabled device, this device can be remotely monitored and controlled via the ProWatch software, receive OTA firmware updates, deliver notifications, and remotely restarted.

Contents

• High Power Dual-Band AP
• Mounting Bracket and Hardware
• PoE Injector and Power Adapter
• Quick Install Guide

Notes

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

• Manufacturer Part #: XAP-1510
• UPC: 729440674922
• Standards: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
• Interface: Two 10/100/1000M Ports
• Antenna: Three Dual-Band Antennas
• Button: Reset
• Power Supply: PoE (injector included)
• Power Consumption:
• Idle Power Consumption: 10W
• Max Power Sumption: 25.3W
• LEDs: Power, 2.4GHz, 5GHz (can be turned off/on via user interface)
• Frequency: Concurrent 2.4GHz and 5GHz with Beamforming
• Wireless Speed:
• 2.4GHz: 600 Mbps
• 5GHz: 1.3 Gbps
• Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2
• Operating Mode: Wireless AP
• Other Functions and Features:
• Remote Web Management
• System Logging
• Backup & Restore Configurations
• VLAN/Guest Network Support
• Up to 4 SSIDs per Band for a total of 8 SSIDs
• Firmware Upgradeable via UI
• XWC-1000 Wireless Controller Compatible
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Dimensions: 7.25 (L) x 7.25 (W) x 2 (H) inches (184.15 x 184.15 x 50.8 mm)
• Certification: CE, FCC, RoHS
• Warranty: 3-Year Limited
