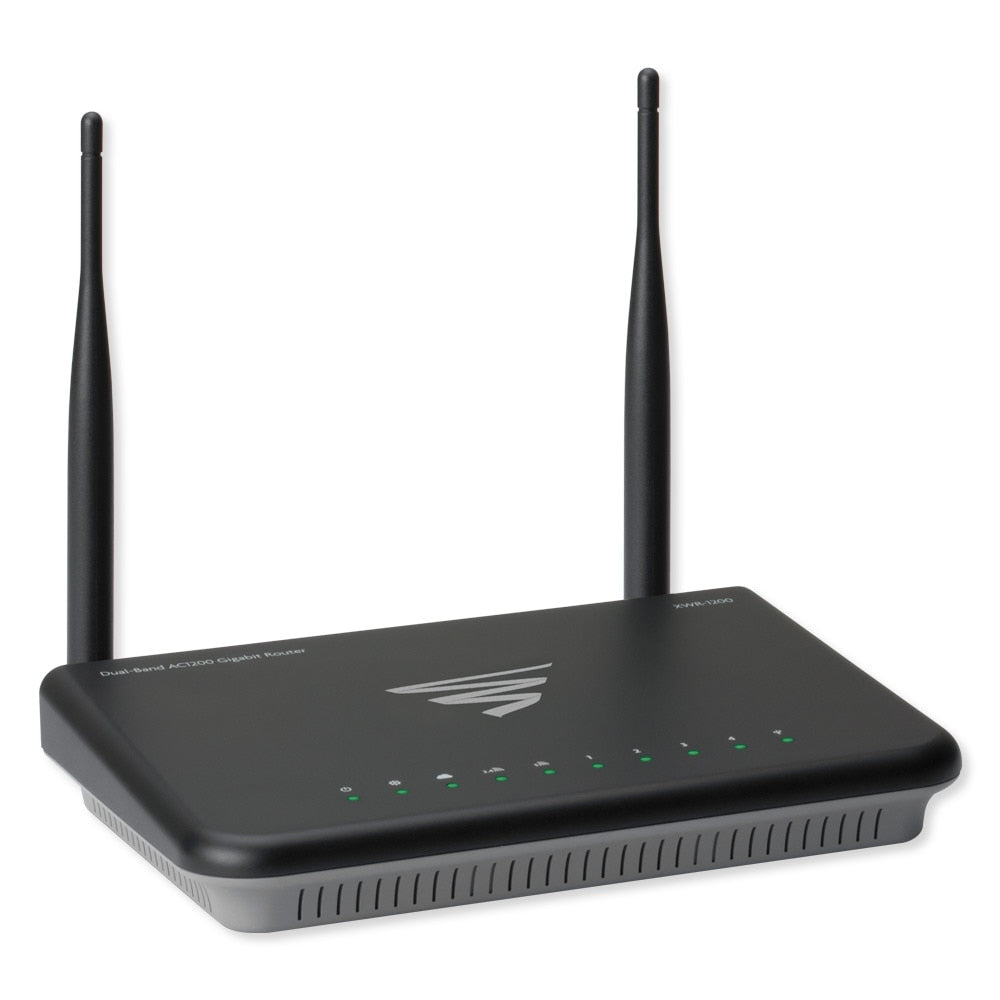

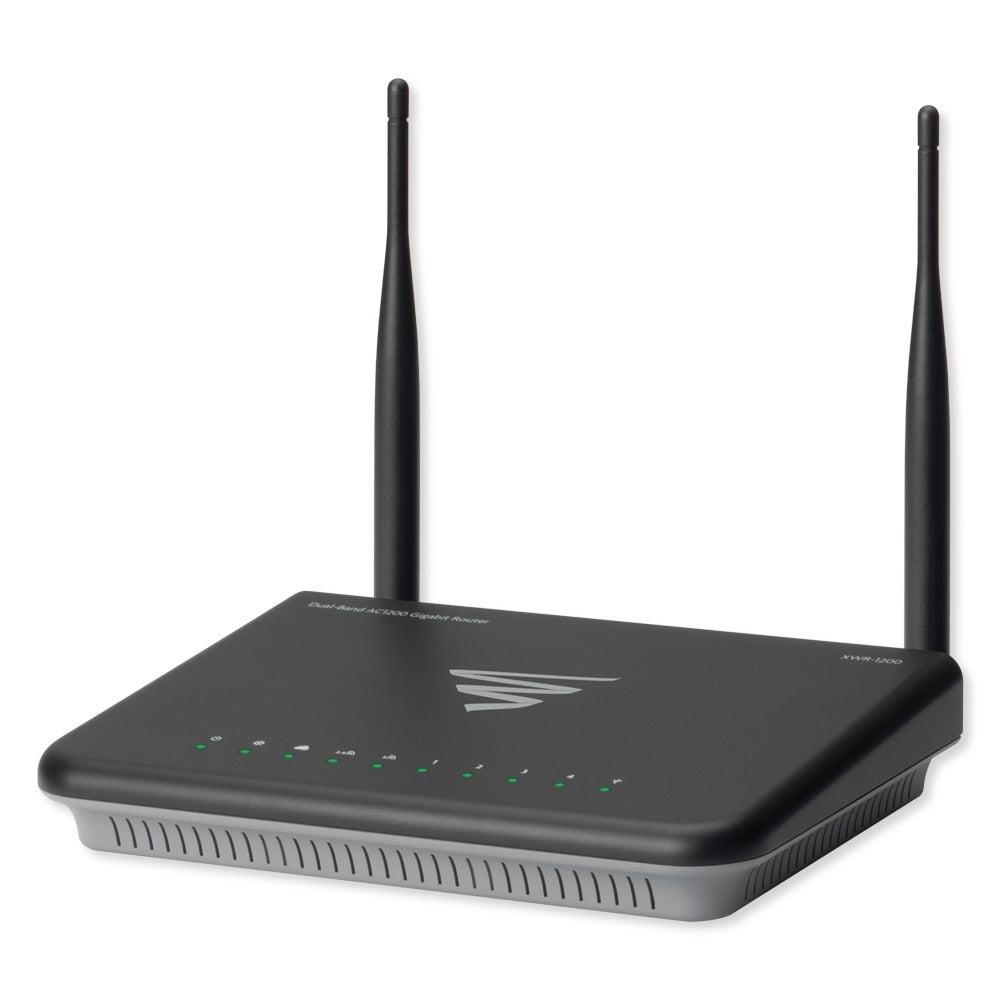

Luxul AC1200 Dual-Band Gigabit Wireless Router


Usually ships in 3-5 days.


WARNING: Cancer and Reproductive Harm –


DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Distribute Wi-Fi Coverage With Up To 2 Additional APs

The Luxul AC1200 Dual-Band Gigabit Wireless Router features 80211ac 2x2 MIMI technology to provide powerful Wi-Fi coverage and routing. Ideal for both homes and small businesses, this Gigabit wireless router features Luxul's Roam Assist functionality built-in, which will allow you to add up to two wireless access points (APs) to your network for seamless roaming. The router features one WAN port for your Internet connection and four Gigabit ports (10/100/1000Mbps) to connect up to four network devices via Ethernet cables. It also provides wireless data transfer speeds of up to 1200Mbps and 5GHz Beamforming technology for creating a wireless connection that's faster, stronger, and more reliable.

  • 80211ac 2x2 MIMI technology provides powerful Wi-Fi coverage and routing
  • Provides four Gigabit ports and one WAN port
  • Easily expands Wi-Fi Network with up to (2) additional Access Points
  • Enables VPN remote access to the network
  • Network security and firewall for secure network communication

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

  • ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
  • ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
  • ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Enabled and ProWatch+ device, this device allows for remote monitoring of networks, either local or remote, and devices connected to the network, as well as allowing for remote reboots, power cycling, firmware updates, and notification delivery.


  • Dual-Band Wireless AC1200 Gigabit Router
  • Ethernet Cable
  • Power Adapter
  • Quick Install Guide
  • Dual-Band Omni-Directional Antennas

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.



  • Web Browser
  • Ethernet Cable
  • Internet Connection to View Documentation Online

Technical Details

  • Manufacturer Part #: XWR-1200
  • UPC: 655003919998
  • Standards Compliance: 2.4GHz: IEEE802.11n, IEEE802.11g, IEEE 802.11b; 5.xGHz: IEEE 802.11n, IEEE 802.11a; 802.11ac

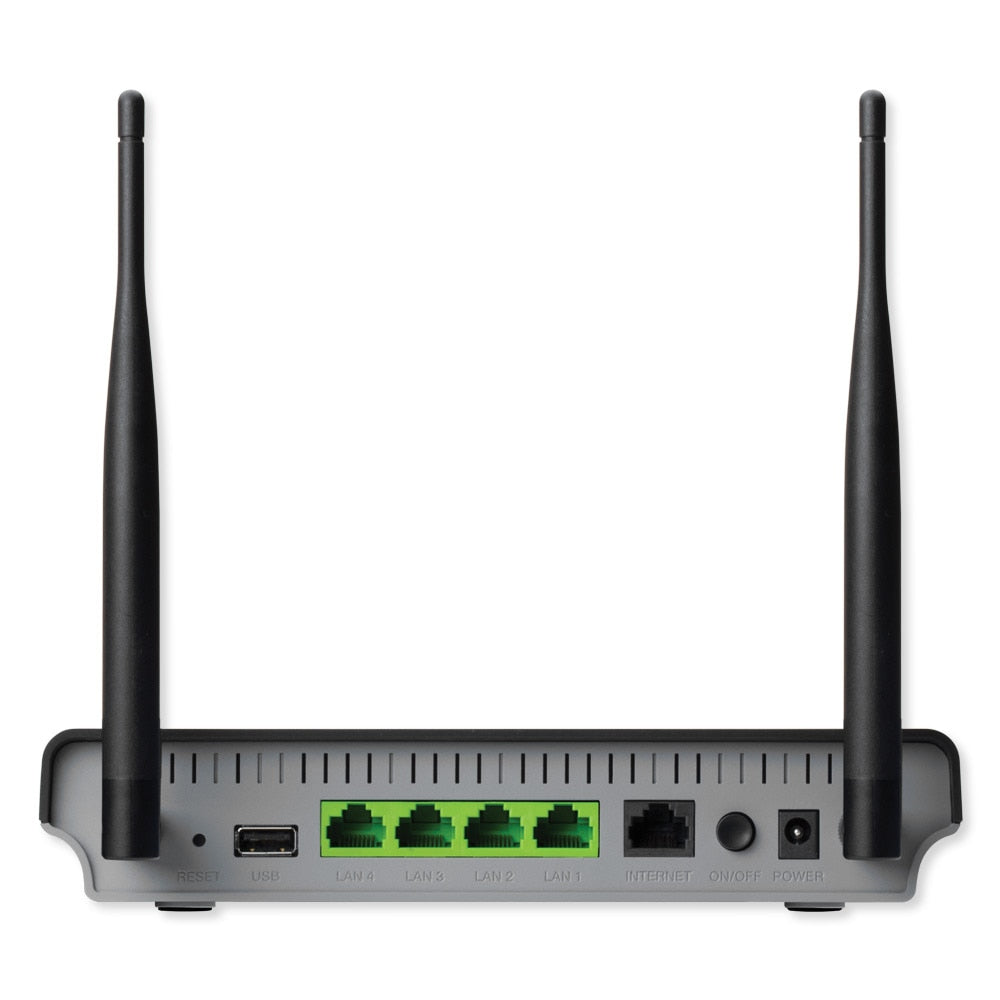

  • Interface:
    • One 10/100/1000M WAN Port
    • Four 10/100/1000M LAN Ports
    • One USB 2.0 Port
  • Antenna: Two Dual-Band Detachable Omni-Directional Antennas
  • Button: Power Button/Reset Button
  • Power: Input: 12V/2A DC Power Jack
  • Max Power Consumption: 18W
  • Environmental Temperatures: -4°F to 122°F (-20°C to 50°C)
  • Dimensions: 8.1 x 5.6 x 1.5 inches (206 x 142 x 38mm)
  • LEDs: Power, SYS, USB, WAN, LAN (4), 5GHz, 2.4GHz
  • Wireless Speed:
    • 2.4GHz: 300Mbps;
    • 5GHz: 866Mbps.
  • Frequency: Concurrent 2.4GHz and 5GHz
  • Wireless Security: WPA-PSK/WPA2-PSK, WPA/WPA2
  • Operating Mode: Wireless Router, Wireless Controller
  • Performance:
    • 5 GHz – up to 500 Mbps at 1/4 Mile
    • 5 GHz – up to 435 Mbps at 1/2 Mile
    • 2.4 GHz – up to 90 Mbps at 1/2 Mile
  • Other Functions and Features:
    • Quality of Service (QoS)
    • Guest Network Support
    • VPN Support: PPTP, L2TP, IPSEC
    • Port Forwarding
    • MAC Address Cloning
    • DHCP Server, Client, Address Reservation
    • Backup & Restore Configurations
    • Firmware Upgradeable via Browser
    • Secure Remote Access via VPN
  • Certification: CE, FCC, RoHS, IC, RCM
  • Warranty: 3-Year Limited
