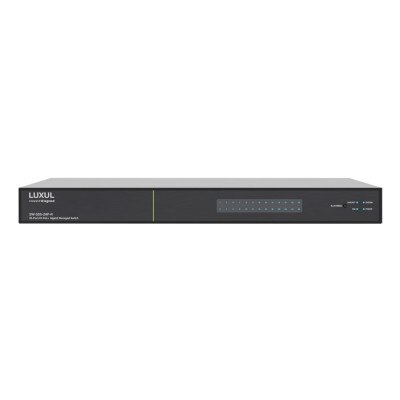

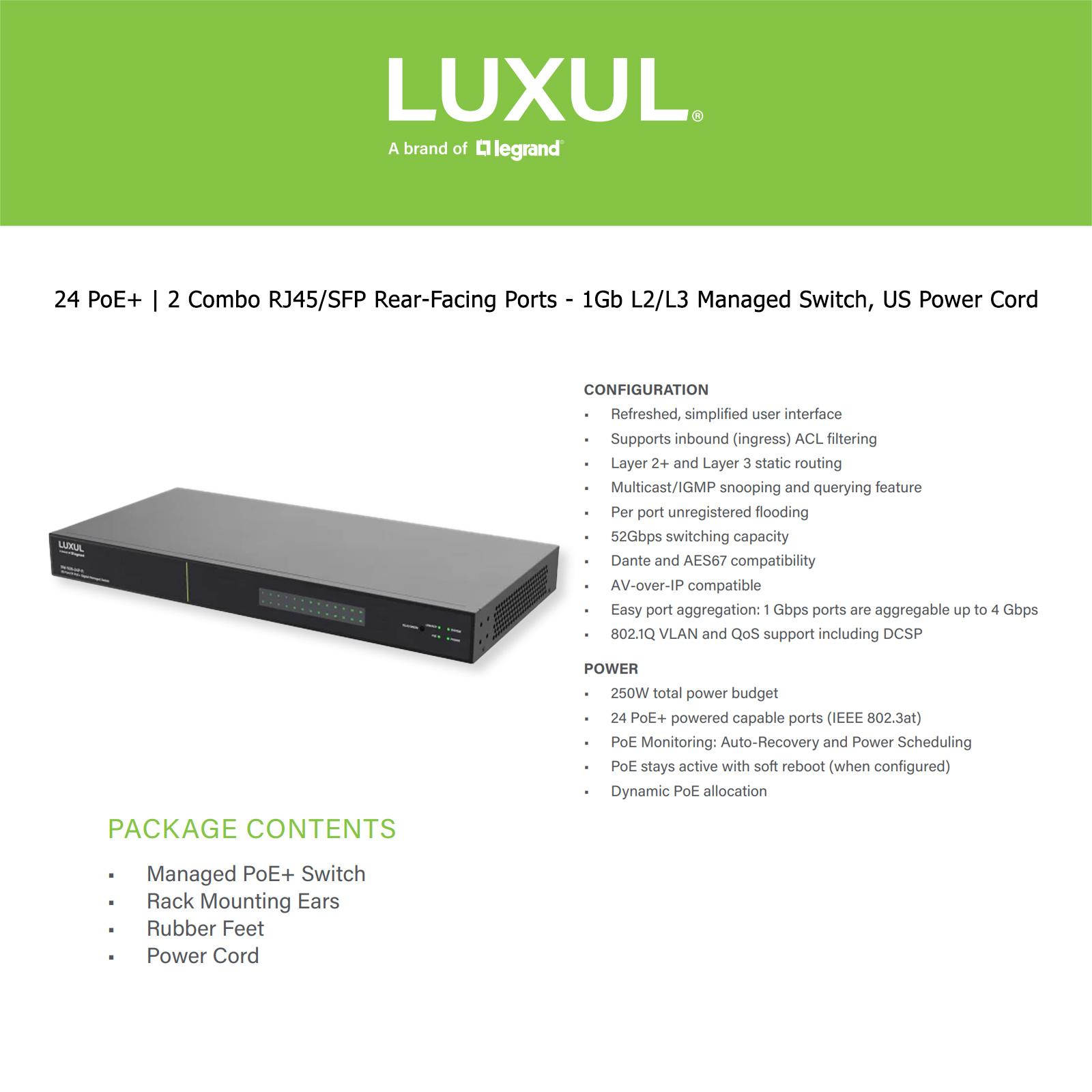

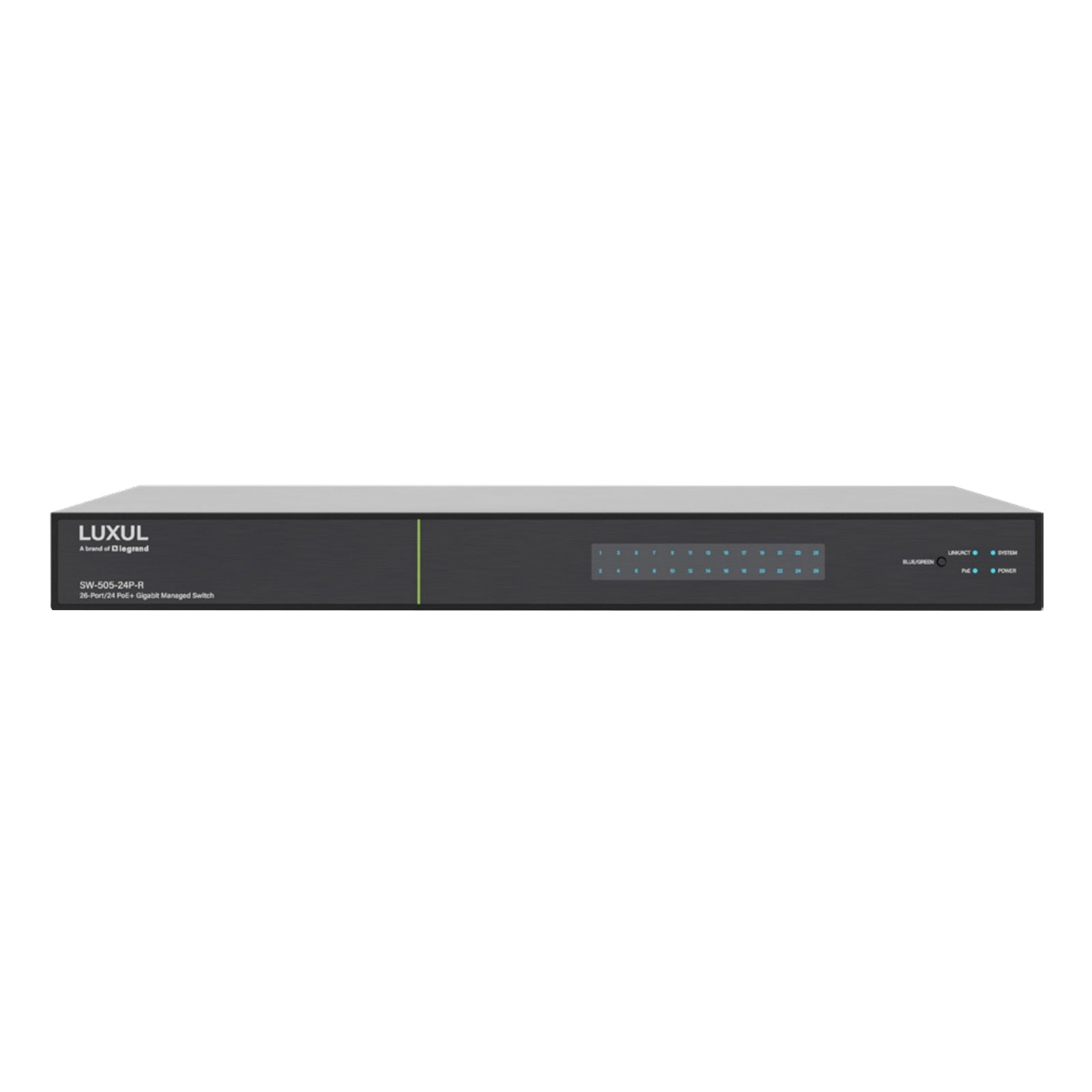

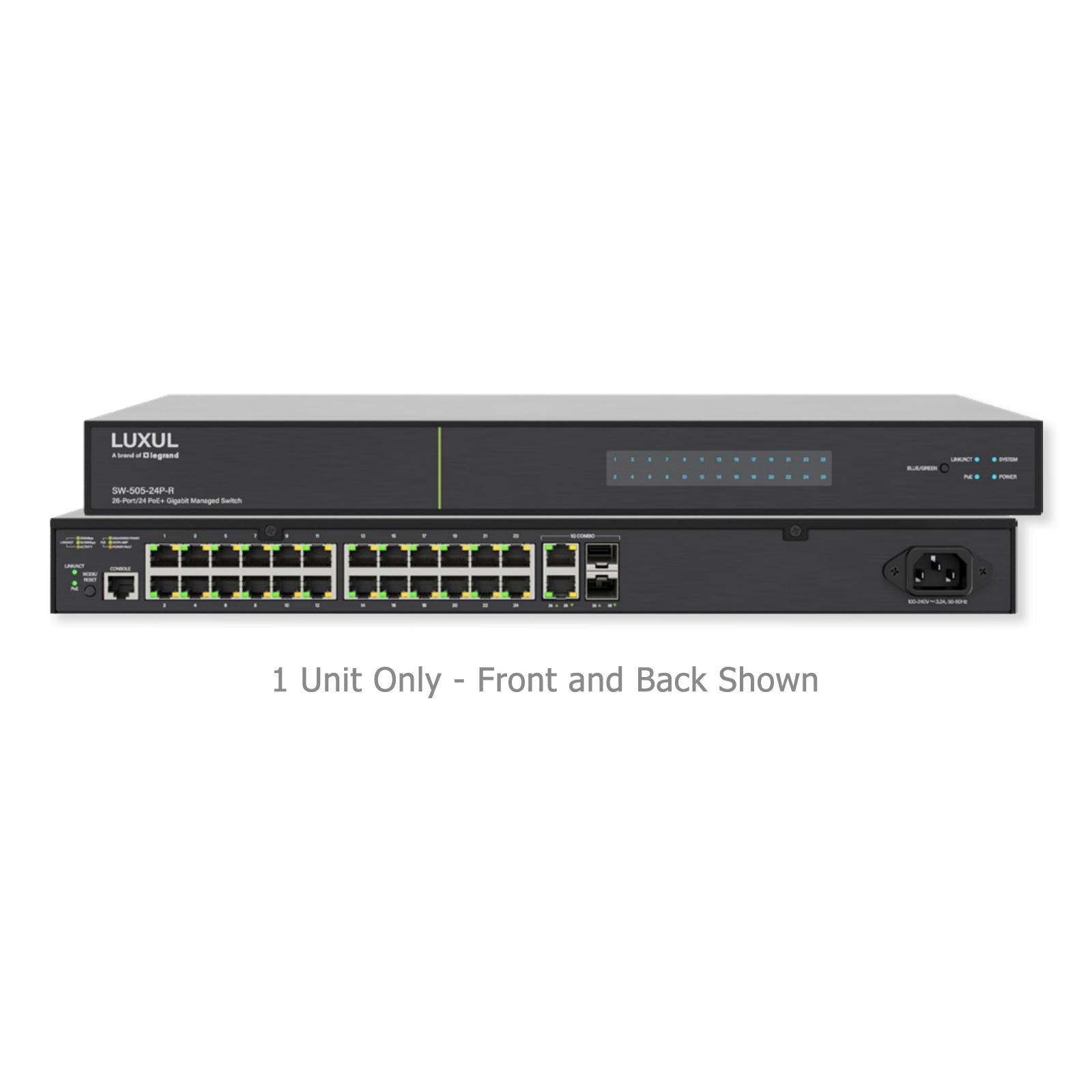

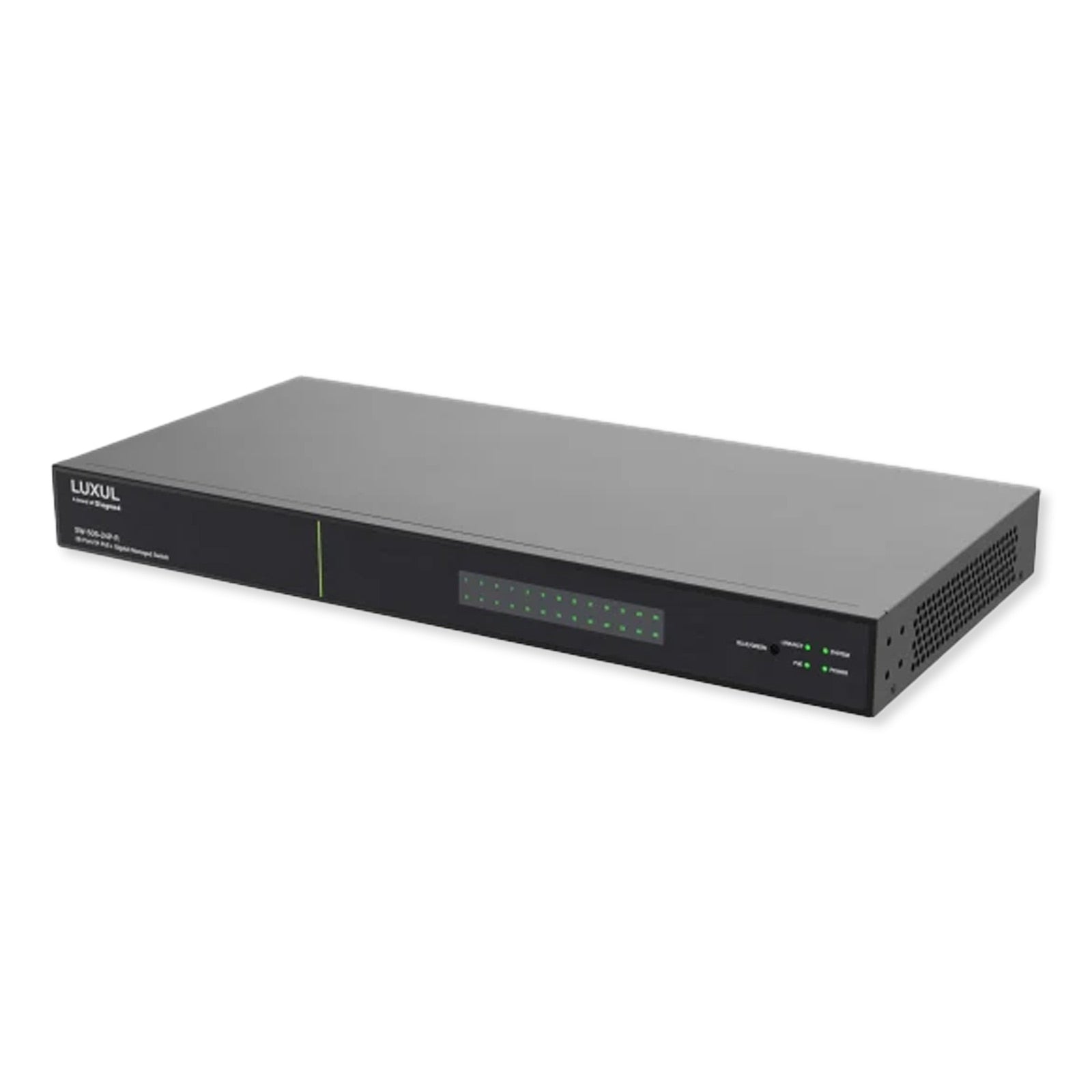

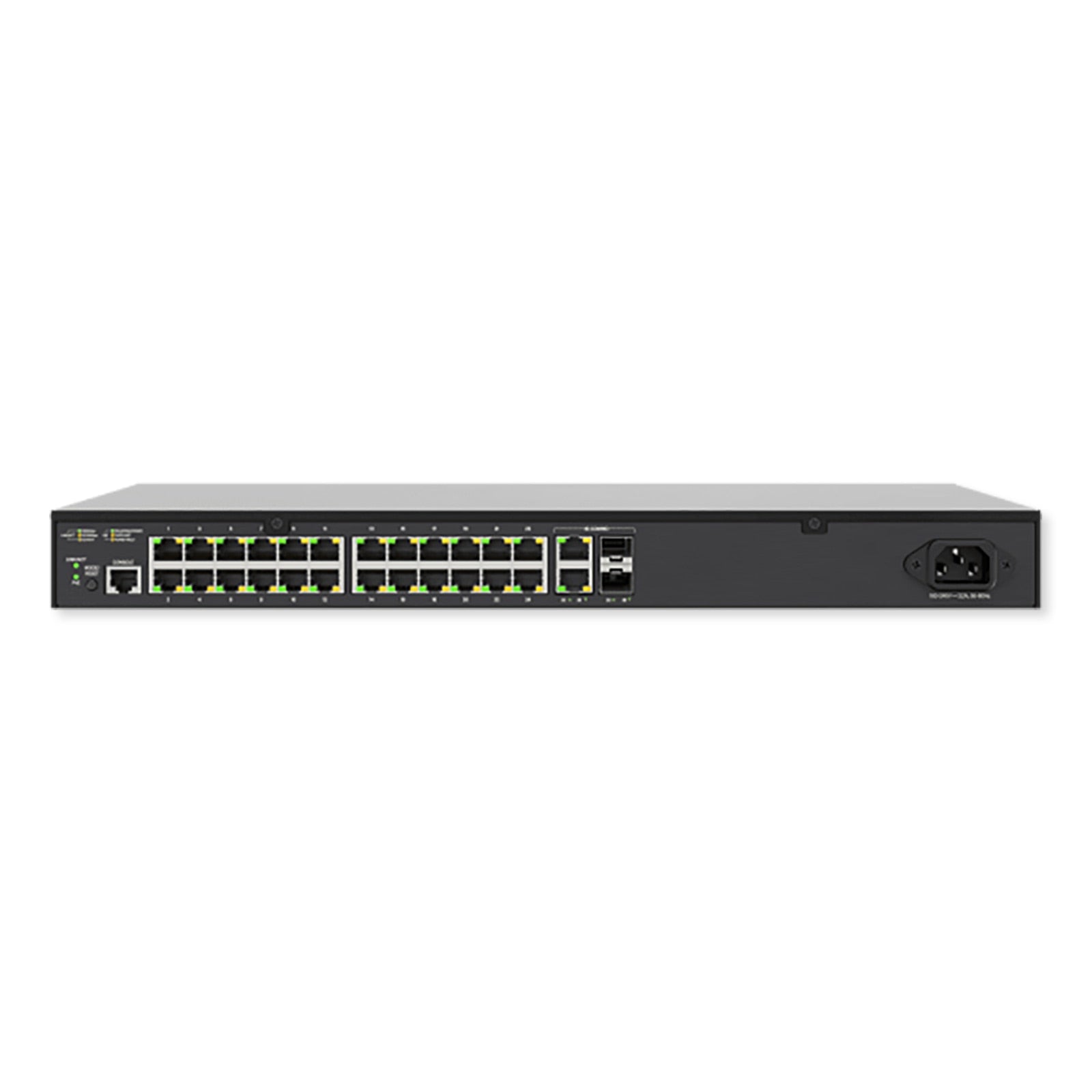

Luxul 26 Port/24 PoE+ Gigabit Managed Switch, Rear Facing

Support 28 Network Devices with Room to Expand Your Network

Manage a medium to large network infrastructure of 28 devices with the Luxul 26 Port/24 PoE+ Gigabit Managed Switch! This fanless rear-facing managed network switch is designed to distribute Gigabit data transmissions for security, networking, and AV-over-IP (AVoIP) applications. This 26 port model features twenty four 1 Gigabit Power over Ethernet (PoE) ports and two Gigabit SFP expansion ports with a 52 Gbps switching capacity and 250W total power budget. Each of the twenty four PoE ports use a single PoE cable (Cat5 or above) to transmit data and power to 802.11af/at-compliant devices and can handle a max of 30W per port. Devices that are separately powered can use one of the PoE ports for network connectivity only. Each SFP expansion port allows for connection with additional network switches and both ports can be aggregated together to reach a 2 GB connection speed. The switch includes Layer 2/Layer 3 features and an easy-to-use management interface to simplify configuration from a local computer or controller. Easily setup Internet group management protocol (IGMP) on a per-port basis to customize your local network.

• Gigabit Switch connects up to 26 network devices via Ethernet and SFP connections
• Supports twenty four (24) PoE ports and two (2) SFP expansion ports
• 52 GB switching capacity and 250W total power budget, up to 30W per PoE port
• Designed for Audio/Visual-over-IP (AVoIP) applications, VLAN, QoS, video surveillance, or automation and security systems applications
• Supports PoE monitoring features such as Auto-Recovery and Power Scheduling for live updates of device status
• Layer 2/Layer 3 capabilities (static routing included) and per port configuration allows for Multicast/IGMP snooping, querying, and more networking features
• Fanless design allows for silent operation

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

• ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
• ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
• ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Integrated device, this device is capable of self-reporting its information to a connected ProWatch+ device, such as a Luxul router, Mesh Node, or Access Point.

Installation Details

The Luxul 28 Port/24 PoE+ Gigabit Managed Switch can be placed atop or within a media cabinet or desktop, or rack mounted with the included 19 inch rack mounting kit.

Contents

• 24 PoE+ | 2 Combo RJ45/SFP Ports – 1 Gigabit L2/L3 Managed Switch
• Power Cord
• Rack Ears and Set of Four (4) Rubber Feet
• Quick Install Guide & Regulatory Documentation

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

• Manufacturer Part #: SW-505-24P-R
• UPC: 655003923445
• Forwarding Capacity: 38.69 Mbps (64 byte packets)
• Switching Capacity: 52 Gbps
• Mac Table: Up to 8K (32768) MAC addresses
• Jumbo Frames: Frame sizes up to 9216 Bytes
• Interface Options:
• RJ45: 10BASE-T, 100BASE-T, 1000BASE-T
• SFP: up to 1Gbps
• PoE Monitoring: Auto-Recovery, Power Scheduling, PoE stays active with soft reboot
• VLAN:
• 802.1Q max 4094 VIDs & VLAN Trunking
• Supports 1 Management VLAN
• Surge Protection: RJ-45 port surge protection tested to 6KV per EN 61000-4-5
• Network Data Transfer Rate:
• Ethernet: 10Mbps (Half-duplex), 20Mbps (Full-duplex)
• Fast Ethernet: 100Mbps (Half-duplex), 200Mbps (Full-duplex)
• Gigabit Ethernet: 1000Mbps (Half-duplex), 2000Mbps (Full-duplex)
• SFP: 1Gbps
• Multicast Support:
• IGMP Snooping, Querier, Per Port Unregistered Flooding
• Snooping and Querier available on each VLAN
• Port statistics allow users to troubleshoot IGMP
• ACL Ingress Filtering of Multicast Traffic
• LED:
• Per Unit: System, Link/Act or PoE status
• Per Port: Link/Activity and POE
• Quality Of Service (QoS):
• 8 Hardware Queues
• Queue Scheduling: Strict Priority and Weighted Round Robin (WRR) VLAN priority based
• Layer 2 CoS QoS
• Port based Layer 3 DSCP QoS
• Port based bandwidth control
• ACL Ingress Filtering
• Port Count: 24 PoE+, 2 Combo RJ45/SFP 1Gb ports
• Power Budget:
• 370W, Configurable as statically assigned or dynamically allocated
• Up to 30W per port
• Max Power Consumption: 428W @ 100VAC, 414W @ 240VAC
• Power Supply: Internal Switched Power, AC 100-240V, 50-60Hz input
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 10% to 90% (Non-condensing)
• Dimensions: 17.4" L x 8.3" W x 1.75" H (442 x 211 x 44 mm)
• Weight: 6.6 lbs (3.0 kg)
• Protocols And Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af/ at, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1ab, IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1X
• Certifications: FCC Part 15 Class A, IC, CE-EMC, CE-LVD, CB(IEC 62368-1), RCM, VCCI, RoHS, UL, cUL, TAA, NDAA, UKCA
• Warranty: 3-Year
