Lithe Audio Wireless Wi-Fi Micro Subwoofer

Mighty Bass From A Wireless Compact Sized Subwoofer

Add high-quality bass to your home audio system with the Lithe Audio Wireless Wi-Fi Micro Subwoofer. Designed in a compact size, this subwoofer delivers powerful bass and can wirelessly connect to Lithe Audio multi-room audio systems or other Wi-Fi compatible speakers. It features 1 x active and 2 x radiator 4" drivers to deliver audio between 40Hz-200Hz at -10dB, allowing the subwoofer to emit low-end frequencies and smooth-sounding bass from any connected source. It also has Chromecast built-in and works with Apple Airplay2, Amazon Alexa, and Spotify Connect, allowing you to pair it with compatible speakers so you can easily play your favorite audio from any compatible smart device. The subwoofer can easily be set up using the Lithe Audio app for iOS and Android devices to give you full control over the crossover frequency, phase, volume, gain, and low and high pass filters, with customizable presets.

• Uses Wi-Fi technology to wireless connect to Lithe Audio multi-room setups or other compatible speakers
• 1x active and 2x radiator 4" drivers deliver detailed and immersive bass
• Works with Amazon Alexa devices and any GoogleCast and AppleAirplay2 speakers
• Ethernet hardwired connection for streamlined cable management and a solid data connection
• Music services supported include: Airable Radio, Podcast, Tidal, Deezer, Soundmachine, Amazon Music, Napster, Spotify, and more
• Use the Lithe Audio mobile app (Android or iOS) for full control over the crossover frequency, phase, volume, gain, low and high pass filter with presets

Installation Details

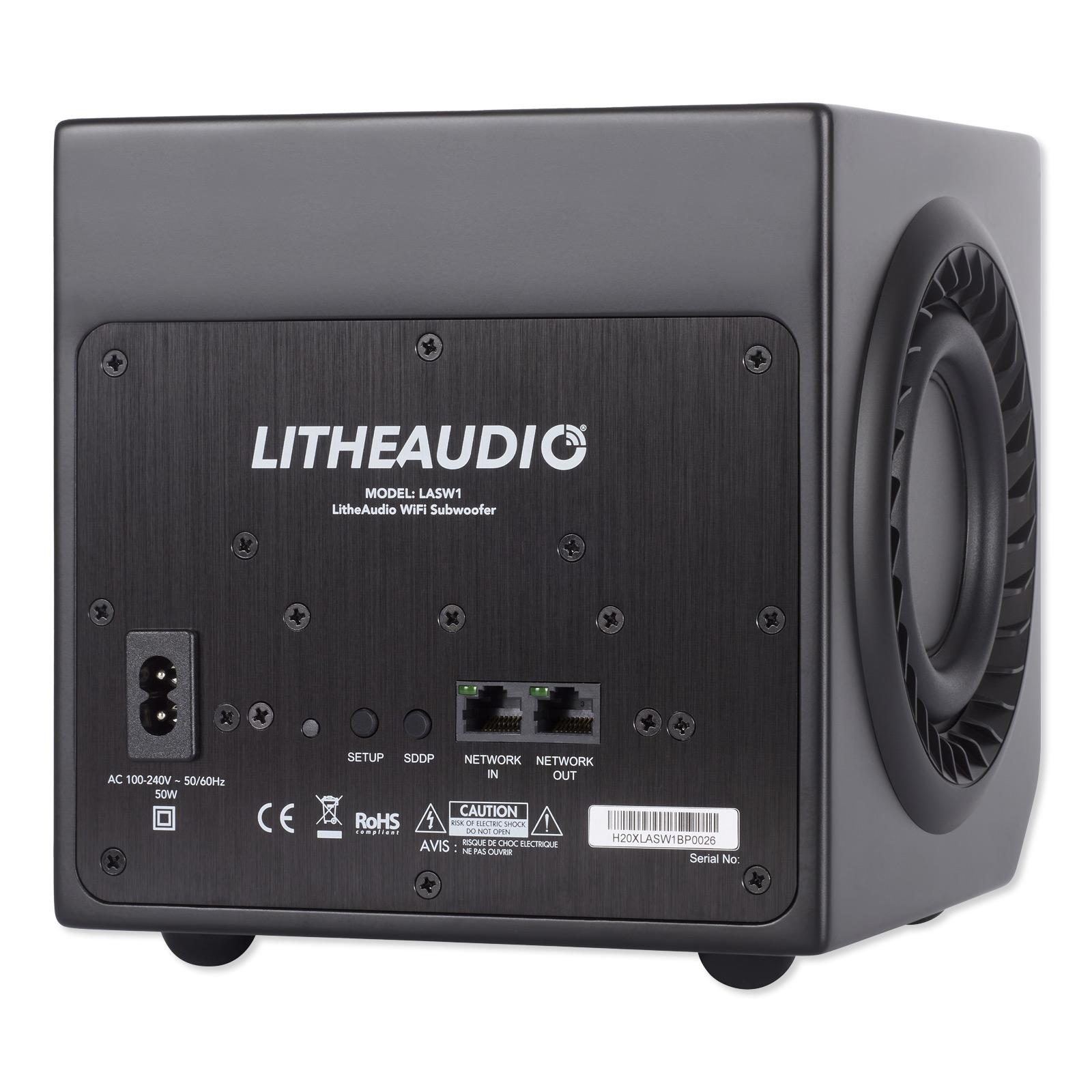

The Lithe Audio Wireless Wi-Fi Micro Subwoofer has an easy plug and play design. To gain overall bass output, it's recommended to place the subwoofer on the floor and in the corner of the room in the vicinity of the ceiling speakers. Once placed in a desired location, plug the subwoofer into a socket using the included power cable. Then use the Lithe Audio app to sync the subwoofer to your home's Wi-Fi network and group it with any existing compatible speakers. Additionally, the Sub Woofer is designed with an Ethernet hardwired connection, enabling you to run an Ethernet cable from a router or network switch and daisy chain Ethernet connections to reduce cable runs.

Lithe Audio App

The Lithe Audio app for iOS and Android devices lets you effortlessly control the music throughout your home from a single interface. It's simple and easy to set up thanks to automatic detection of all Wi-Fi speakers that are connected to your network. Easily drag and drop rooms into groups to play the same music in multiple spaces, or keep rooms separate to enjoy different music in each area simultaneously. You can fully personalize your zones, allowing speakers to be independently renamed, switched between Left and Right speaker output, and volume controlled. Lithe Audio Speakers are ideal for the entire family.

Contents

• Sub Woofer
• Power Cord
• Instruction Manual

NOTE: Requires an Internet connection.

Innovative Audio Products

As an innovative audio company based in the United Kingdom, Lithe Audio specializes in wireless audio technologies for the residential and hospitality markets. They offer an extensive selection of active ceiling speakers, each designed with cutting-edge innovation. Their expertise lies in Wi-Fi and Bluetooth technologies, seamlessly integrating with leading smart home brands like Apple, Amazon, Google, and Control4. This enables customers around the world to fully embrace the evolving audio landscape of today and the future.

• Manufacturer Part #: 01675
• EAN: 5060544553764
• Woofer:
• 4" Polypropylene Driver
• 4" Passive radiator x 2
• Audio Compression: 192Khz/24bits
• Type: Class D (Digital)
• RMS Power: 50W RMS @ 4 Ohm load
• Sound Quality: THD+N<0.009%, 40Hz-200Hz @ -10dB
• Sensitivity (1W/1m): 90dB
• Music Access:
• Audio Formats Supported: MP3, WMA, AAC (MPEG4), AAC+, ALAC, FLAC, APE, WAV, OGG, LPCM
• Audio Sample Rate: up to 192kHz 24bit
• Music Services Supported by Lithe Audio include; Airable Radio, Podcast, Tidal, Deezer, Soundmachine, Amazon Music, Napster, Spotify, etc.
• Operating Systems (for stored files) Windows XP SP3 and higher; Mac OS X 10.6.8 and higher; NAS (network attached storage) devices supporting CIFS
• Wireless Networking:
• Add multiple speakers within same Wi-Fi network
• Wi-Fi Connectivity: Wi-Fi CERTIFIED™ 802.11 b, g, n, ac WPA™ – Personal WPA2™ – Personal WMM®, Wi-Fi Protected Setup™
• Wireless connectivity works on your home Wi-Fi network with both 2.4GHz/5GHz broadcast routers
• Standby Power: 1.3W / 0.02A
• Connected Power: 1.5W / 0.03A
• Playing Music: 2.8W – 10.5W / 0.03A – 0.09A
• General: 50/60Hz / 3A
• Output Supply:
• DC24V / 3A >5mins
• DC24V / 5A Peak power >10s
• Dimensions: 6.85(W) x 6.85(D) inches (174 x 174 mm)
• Operating Temperature: 32° to 104° F (0° to 40° C)
• Storage Temperature: 4° to 158° F (-20° to 70° C)
• Weight: 6.61lbs. (3kg)
• Warranty: 2-Year Limited

»Lithe Audio 01675 Wireless Micro Sub Woofer Spec Sheet (.pdf)
»Lithe Audio 01675 Wireless Micro Sub Woofer Installation Manual (.pdf)
