Linear Multi-Code Gate Receiver, 110V, 1-Channel

Add Wireless Control to a Gate Opener

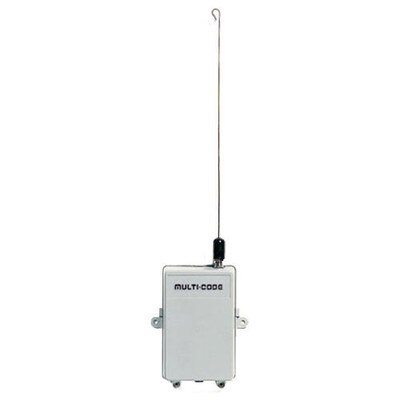

The Linear Multi-Code Gate Receiver (110V, 1-Channel) is used to wirelessly operate a gate opener, in conjunction with a Multi-Code format transmitter (sold separately). The receiver is designed to be housed in a metal enclosure (not included) and plugged into a 115VAC power outlet with the included 24VAC transformer. An 11-inch wire whip antenna is included to provide reliable reception when the receiver is shielded by an enclosure.

• Adds remote control to one gate opener
• Works with all 300 MHz Multi-Code transmitters
• 1,024 code combinations provide security
• Designed to be housed in a metal enclosure
• Includes wire whip antenna for improved reception

The 1-channel receiver connects to one gate opener’s radio activation terminals via the supplied 3-foot, 2-conductor wire lead with spade lugs. It controls the gate opener through a normally open (NO) relay output that can switch up to 1A at 30VAC.

The receiver is programmed with a 10-position coding switch. When a Multi-Code transmitter set to the same code is activated, the receiver’s output will activate, triggering the gate operator.

Contents

• Gate Receiver
• Whip Antenna, 11-inch
• Power Transformer

Note: Requires a compatible transmitter, sold separately. Compatible with 300 MHz Multi-Code transmitters only.

Security, Access Control and More By Linear

For more than forty years, Linear LLC has been known as a worldwide provider of radio based transmitters and receivers for the traditional security market. Millions of Linear transmitters have been sold over the years. Linear security products are offered via a worldwide network of distribution. While Linear continues to be a leading supplier of devices for the security market, we have expanded our products to include focused product lines in the Access Control, Remote Control and Garage Door Operator markets.

• Manufacturer Part #: 109920
• Codes: 1,024 (set by dip switches)
• RF Frequency: 300 MHz
• Dimensions: 3.625(W) x 5.25(H) x 1.50(D) inches
• Warranty: 18 Months

»Linear 109920 Multi-Code Gate Receiver Installation Instructions (.pdf)
