Linear Multi-Code Key Ring Transmitters

For Automatic Door & Gate Operator Applications

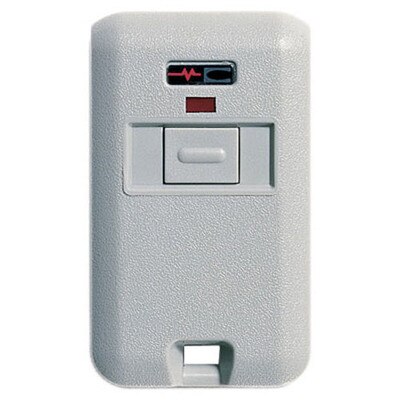

The Linear Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications.

This transmitter is a single-channel device, pressing the pushbutton will send a signal to the receiver. The transmitter has a red test/operate indicator and is powered by a 12-volt battery. A molded-in hole in the case is for attaching the transmitter to a key ring.

The Transmitter is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.

Available Channel Types: 1-Channel or 2-Channel.

Radio Controls For Every Requirement From Linear

From garage door openers to gate operators, from loading dock doors to access control systems, from everyday entry to high security, Linear makes radio controls to cover the industry’s diverse range of applications. Single and multi-channel transmitters and receivers can be mixed and matched within product families to address just about any user need.

• Compatible with 300 MHz Multi-Code receivers
• Powered by 12-volt battery
• Easy access to battery and coding switch
• 1,024 codes
• RF Frequency: 300 MHz
• 1.5" W x 2.5" H x 0.625" D

»Linear 306010, 308301 Multi-Code Key Ring Transmitters Installation Manual (.pdf)
