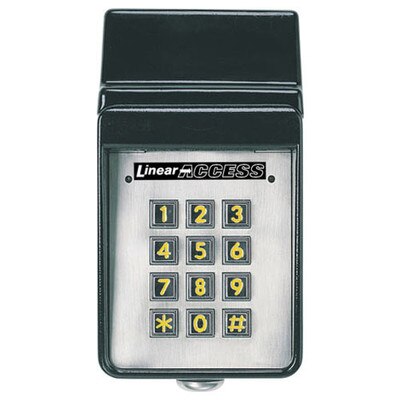

Linear MegaCode Exterior Keypad Transmitter

Program Individual User Pin

The MDKP Exterior Wireless Keypad can transmit a unique signal for each 1-6 digit PIN code entered. It has a built-in radio transmitter with a 250-foot range in line-of-sight conditions. Access codes are programmed into the access controller or receiver.

To operate the MDKP, a user simply enters a PIN followed by the # key, and the code is transmitted to the receiver for validation. Downlighting can be turned on by pressing the # key twice; it remains on for 30 seconds or until a code is sent. The MDKP can be mounted on either a wall or a gooseneck.

Security Products, Access Control & More By Linear

For more than forty years, Linear LLC has been known as a worldwide provider of radio based transmitters and receivers for the traditional security market. Millions of Linear transmitters have been sold over the years. Linear security products are offered via a worldwide network of distribution. While Linear continues to be a leading supplier of devices for the security market, we have expanded our products to include focused product lines in the Access Control, Remote Control and Garage Door Operator markets.

• Internal antenna
• 1-6 digit PIN for each user
• Long life lithium battery
• Rugged cast aluminum housing
• Built-in downlight
• Power: 9-volt lithium battery
• Codes: 1,000,000+ (MegaCode format)
• RF Frequency: 318 MHz
• Dimensions: 4" W x 7" H x 3" D

»Linear MDKP MegaCode Exterior Keypad Transmitter Installation Manual (.pdf)
