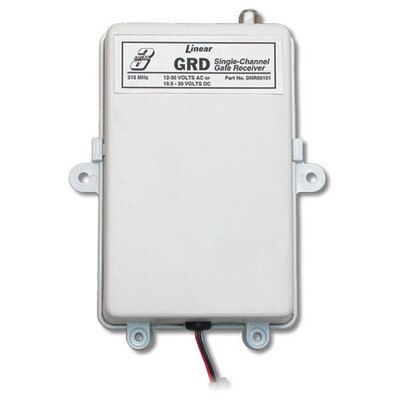

Linear Delta-3 Gate Receiver, 1-Channel

SKU: LNGRD

Usually ships in 3-5 days.

$47.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Delta-3 Format

The GRD is a 1-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The receiver uses the Delta-3 radio format, with 256 possible codes, set by dipswitch.

  • Auto voltage sensing – no jumpers to set
  • Single Form "A" (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
  • Supplied with whip antenna, three feet of coaxial cable and bulkhead connector

Linear Delta-3 Format Gate Receivers

The GRD and the GRD-2 are two auto sensing Delta 3 format gate receivers from Linear. They eliminate any chance of damage to either the gate operator or themselves from running off the wrong voltage. Nearly all gate operators offer either 24 or 12 volts AC or DC as accessory power. Because the GRD and GRD-2 are auto sensing, each receiver recognizes the gate operator’s correct voltage. As a result, installers can be assured of always having the correct model gate receiver on the truck.

The two receivers can operate from 12-30 volts AC or 10.5-30 volts DC and are normally powered from the gate operator. Their relay contact(s) are rated at 5 amps @ 30 volts AC/DC.

Linear’s Delta 3 is a popular radio format for gate receivers, making the GRD and the GRD-2 compatible with all Delta-3 transmitters, including two and fourchannel models. It uses a frequency of 310 MHz and offers 256 programmable codes. Programming of the GRD and GRD-2 is easy. Codes are set using the 8-position coding switches inside the units.

The GRD has a single relay. It replaces two different Linear gate receivers, the DRG and the DRG-LV. It is designed for use with automatic gate operators or systems where a remote antenna is needed. The GRD-2 comes with two relays and replaces Linear models DRG-2 and DRG-2-LV. It will operate two gates, one gate and an obstacle sensor, or channel one can open the gate and channel two can close the gate. Both models come with a 9-inch local antenna, three feet of 75 ohm coaxial cable, and a bulkhead connector for locating the antenna outside the gate operator enclosure.

Specifications

  • Manufacturer Part #: DNR00101
  • Color: Color
  • Warranty: 1 Year
