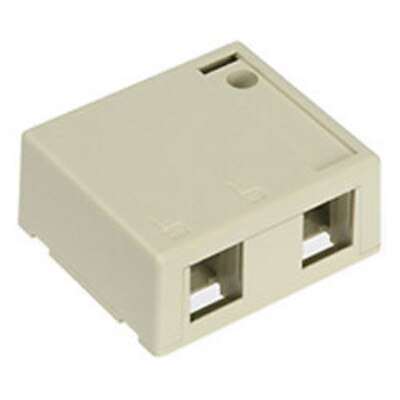

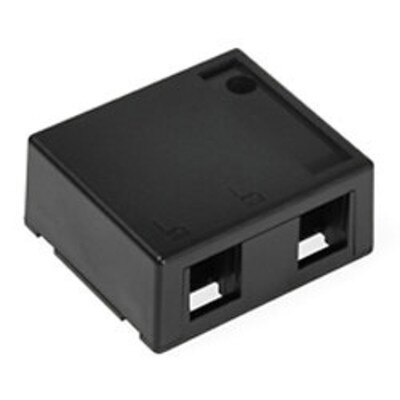

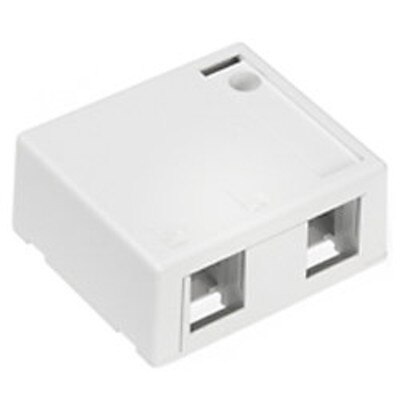

Leviton QuickPort Surface-Mount Box, 2-Port

Customize Your Own Multi-Media Wallplates With Mix & Match Components

The Leviton QuickPort Surface Mount Housing supports voice/data applications in open office, retrofit or other surface mount environments. The Surface Mount Housing is field-configurable for most QuickPort Snap-in connectors and adapters (sold separately). The housing features port identification windows, and the ability to snap an optional security screw to prevent removal of the cover.

• Very small footprint/profile.
• The housing base functions as a punchdown platform for stabilizing connectors during termination.
• Includes a blank to allow for use as a 1- or 2-port device, and allow for future expansion when only one port is initially used.

Leviton's QuickPort Family

The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.

Design Considerations

• Very small footprint.
• Can be used for 1- and 2-port applications.
• Specify whether the product will mount with adhesive tape or screws or magnet.
• Specify side or rear cable entry. (Rear entry is recommended to help m eet cable bend radius standards).
• A blank insert is included to allow for future expansion.

Technical Details

• Dimensions: 2.52"H x 2.22"W x 1.10"D
• Capacity: 1 or 2 snap-in modules
• Materials: High-impact, fire-retardant plastic rated UL 94V-0
• Mounting: Use screws (included), adhesive tape (included), or magnet

»Leviton LV410892x QuickPort Surface Mount Housing Spec Sheet (.pdf)
»Leviton LV410892x QuickPort Surface Mount Housing Instructions (.pdf)
