Leviton Basic Home Networking Plus Panel
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Voice, Data & Video Distribution

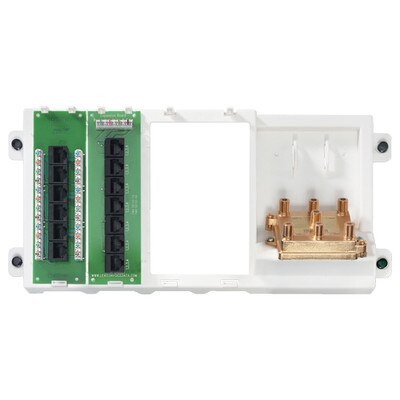

Leviton’s Basic Home Networking Plus Panel combines a Telephone Patching Expansion Board, Cat5e Voice & Data Board and a 6-way 2 GHz Video Splitter in a dedicated bracket. This offers your connected home essential telephone, video distribution and home networking.
- Handles up to six 4-line telephone connections and routes video to 6 locations.
- Provides data or telephone to 6 remote locations.
- Fits into any Leviton Structured Media enclosure or used as a stand-alone unit.
Leviton’s pre-configured panels combine the most popular voice, data and radio frequency modules to create an economical, one stop home media distribution point. Some modules are available in expansion styles to fill unused panel slots. Choose the pre-configured combination that best meets your needs and then enhance it with expansion boards or stand alone modules.
Pre-configured panel includes:
- Cat 5e Voice Data Module: 1
- Telephone Patching Expansion Board: 1
- 6-Way 2 GHz Video Splitter: 1
- Mounting Bracket
Leviton Connected Home
The Connected Home is a requirement of modern living. Access to music, movies, entertainment, and information has never been easier, and a Leviton Connected Home system makes it possible to make the most of that access – individually or as a group – while being sure to safeguard access and maximize bandwidth performance. Leviton Connected Home solutions equip both single family homes and multifamily dwellings with enterprise-grade connectivity networks to provide the technologically-integrated homes that today’s consumers expect, and that only a wired connection can ensure.
Specifications
- Cat5e Voice Data Module: 1
- Telephone Patching Expansion Board: 1
- 6-Way 2 GHz Video Splitter: 1
- Standards and Certifications: CULUS/FCC/TIA/EIA
- Warranty: 2 Year Limited
Design Considerations
- Determine outlet locations and carefully plan cable routing to ensure the selected unit satisfies requirements. Expansion boards available separately.
- Install 75 Ohm termination caps on unused outputs of 6-way 2 GHz Video Splitter to reduce signal distortion or ghosting.
- Use Video Amplifier (48210-VA) for increased signal strength.
Mechanical Specifications
- Telephone Patching Expansion: One 110-Type IDC Bridged to 7 8P8C/RJ45 Conn
- Cat5e Voice Data: 6 Cat5e ports and 6 110-IDC Conn.
- Video Splitter: 1 F-Type Female Input, 6 F-Type Female Output
- Video Splitter Frequency: 2 GHz
Material Specifications
- Bracket: ABS plastic, white.
- Telephone Patching Expansion Board: Printed circuit board with one 110-Type IDC connector bridged to seven 8P8C connectors or RJ45-style connectors.
- Category 5e Voice and Data Board: Printed circuit boards with six Category 5e ports and six 110-IDCs.
- 6-way 2 GHz Video Splitter: Die-cast housing and printed circuit board construction.
Dimensions
- Bracket: 6.13"H x .13.30"W x 2.01"D
- Telephone Patching Expansion Board: 2.24"H x 6.57"W x 1.82"D
- Category 5e Voice and Data Board: 2.24"H x 6.57"W x 1.96"D
- 6-way 2 GHz Video Splitter: 3.0"H x 6.58"W x 1.4"D
- Insertion Loss: 11.0 dB -14 dB
- Return Loss: 11.5 dB – 23.5 dB
- Isolation: 35.0 dB – 39.5 dB
