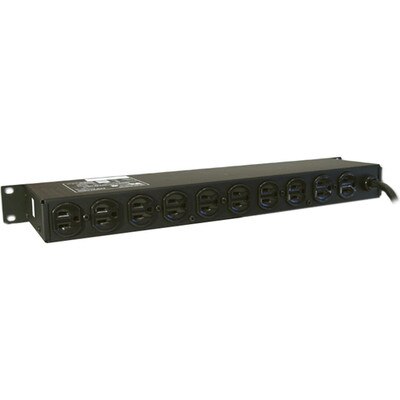

Leviton 19" Rack-Mounted Surge Suppressor

SKU: LV5500190

Usually ships in 3-5 days.


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Sleek Design, 12 Outlets

This heavy duty surge suppressor will handle unlimited main breaker panel current. A transient surge capacity of 680 joules, and 50,000 amps of surge current all with an instantaneous response time!

Protect The Whole Home

The popularity of home offices, the internet and home theaters means that there are more home electronics that are vulnerable to voltage surges than ever before. A Whole-House protection plan must protect against voltage surges on both the powerline and the telephone or communication lines. Homeowners may be unaware that surges can enter their expensive electronic equipment (modems, FAX machines, answering machines, TV’s and VCR's) through telephone lines and cable TV or satellite dish connections. Most surge protective devices (SPD's) designed for the AC powerline will not prevent telephone or communication line surges from damaging valuable equipment. As a result, Leviton offers a complete selection of SPD’s for powerline, telephone and communication line applications.


  • Voltage and Amperage: 120 Volt 15 Amp
  • Housing Material: Steel
  • Circuit Protection: Circuit Breaker
  • Duty: Data Sensitive
  • Diagnostics: PWR/Protection/Polarity
  • Application: Micro Processor Based Equipment
  • Type: 19 Inch Rack Mount w/Switch and 5-15P Plug
  • Joules Rating: 1440
  • UL1449 Impulse 6kV/500A L-N: 330V
  • Max surge Current kA L-N: 27kA
  • Noise Rejection: -5 to -40 dB at 100kHz-30MHz
  • Circuitry: MOV-Based Suppression
  • Cord Length 14-3-SJT: 12 Feet
  • Standards and Certifications: UL1449 / CSA / ANSI/IEEE Cat AB
  • Color: Black
