KBSound In-Wall Bluetooth Audio Receiver with Two 2.5 In. Speakers and Power Supply, White, US

SKU: ES5280A

Order now and we'll ship same business day (if ordered before 3 pm PST).

$229.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Pair Your Bluetooth Device And Listen To Quality Sound From 2-1/2" Speakers

The KBSound In-Wall Bluetooth Audio Receiver with Two 2-1/2" Speakers and Power Supply, White (U.S.), can be wired to external speakers and paired with Bluetooth-enabled devices to provide quality sound when listening to digital audio content. This kit includes an audio receiver, two 2-1/2 speakers, and a power supply. The audio receiver can fit into any DECORA light switch opening, allowing it to perfectly blend with other DECORA style light switches. The receiver features right and left speaker outputs and has a signal reach of 33 feet so you can easily pair it with your smartphone or other Bluetooth-friendly device. This will allow you to listen to all of your favorite online music streaming stations, podcasts, and other online audio content.

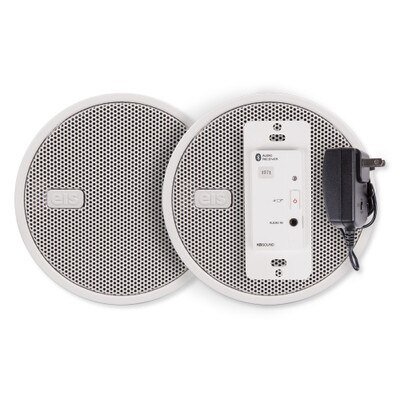

  • Includes a Bluetooth Audio Receiver, two 2-1/2" speakers, and power supply
  • Pairs with Bluetooth devices and connects to external speakers for streaming music, online podcasts, or other audio content
  • Fits into Decora style light switches
  • Left and right speaker outputs for connecting to external speakers
  • External audio input (3.5mm Jack)
  • Line output for extending signal to a different area/room
  • Bluetooth ID can be assigned to each module so that they can co-exist in the same installation

The KBSound In-Wall Bluetooth Audio Receiver features an external audio input (3.5mm Jack), a power connect button, an LED status light, and a Bluetooth identifier number to allow different modules to coexist in the same installation. The receiver also provides a stereo line output so you can extend the audio signal to a secondary area/room or increase the audio output level with an auxiliary amplifier (part# 13204, sold separately).

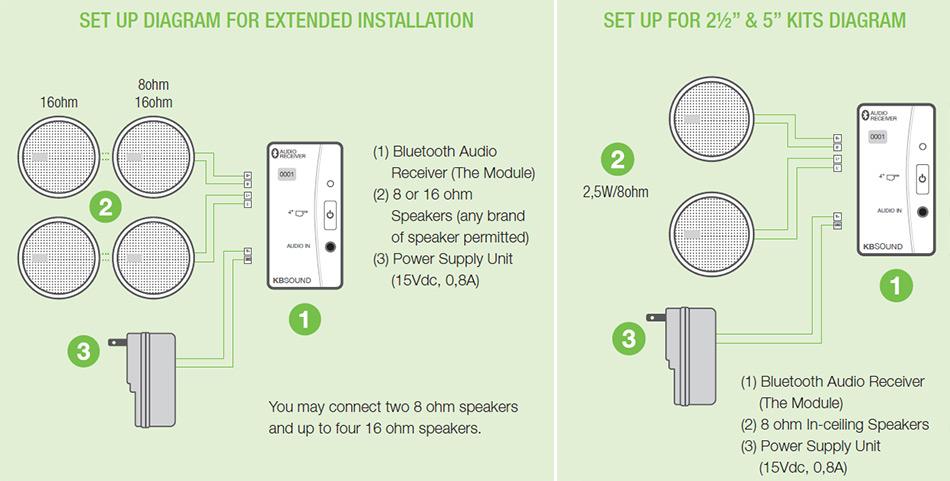

You can connect up to two 8 ohm speakers (included) or up to four 16 ohm speakers (not included) with a maximum stereo speaker output of 5W. This module also has a Max Volume Limit Switch in the back with 2 positions that will allow the installer to select what the maximum volume will be during normal operation.

Each audio receiver module has a KINGBT-XXXX identifying number associated with it. The XXXX will be the serial number that lets the user identify each individual module that co-exists within the same installation. An adhesive label with the serial number is included with each module so you can fix it to the face cover. This will allow users to choose which module to stream audio through from their smartphone or other Bluetooth friendly device.

Contents

  • Audio Receiver
  • (2) 2-1/2" Speakers
  • Power Supply
  • Manual

Notes

  • It's recommended that the rough in back box should be a one or two gang UN/CSA approved 18ci plastic junction box.
  • Do not use metal back boxes which may interfere with the Bluetooth signal.

KBSound: Providing Quality Audio Solutions

Since 1993, KBSound has been producing innovative products in the Multiroom Audio Sector. As the first to create an audio control unit specifically designed to fit and mimic the look of most popular light switches, KBSound's in-wall audio control units provide an easy way to listen to digital audio content in quality sound. From In-Wall Bluetooth Audio Receivers to Soundaround Wi-Fi Speakers, KBSound's product range is always evolving so that consumers have the very best audio solutions available.

Specifications

  • Manufacturer Part #: 5280A
  • UPC: 8436031618679
  • Outputs:
    • Stereo Line
    • Right Speaker
    • Left Speaker
    • Amplifier Trigger
  • Speaker Impedance: 4/8/16 ohms
  • Speaker Output: 5W stereo max.
  • Speaker Color: White
  • Other Connection: Volume limitation and mono/stereo jumpers
  • LED Display:
    • Off: Disconnected and Audio Off
    • Bluetooth: Blue Flashing – searching BT Device
    • Bluetooth: Blue On – BT connected
    • Audio-In: Red On – Audio-In Activated
  • Voltage Terminals VDC, GND:
    • Normal: 15Vdc
    • Max: 16Vdc
  • Consumption Demand Bluetooth Operation:
    • Minimum: 22mA
    • Normal: 111mA
  • Consumption Demand Jack 3.5mm:
    • Minimum: 22mA
    • Normal: 99mA
  • Input Signal Jack 3.5mm:
    • Normal: 100mVrms
    • Maximum: 550mVrms
  • Input Signal Jack 3.5mm Input Impedance:
    • Minimum: 7Kohms
    • Maximum: 60Kohms
  • Output Signal Output 4 ohm:
    • Maximum: 5Wrms
  • Output Signal Output 8 ohm:
    • Maximum: 2.5Wrms
  • Output Signal Output 16 ohm:
    • Maximum: 1.5Wrms
  • Line Output Signal Terminals 65, 66, 4:
    • Maximum: 1.82Vrms
  • Line Output Signal Terminals 65, 66, 4 Output Impedance:
    • Maximum: 50ohm
  • Amplifier Trigger Signal Terminals 62, 4:
    • Maximum: 14Vdc
  • Amplifier Trigger Signal Terminals 62, 4 Output Impedance:
    • Maximum: 1Kohms
  • Left/Right Channel Separation:
    • Normal: 58dB
  • Passband:
    • Minimum: 45Hz
    • Maximum: 20,000Hz
  • Distortion:
    • Normal: 0.1%
  • SNR:
    • Normal: 84dB
  • Bluetooth Identification Number:
    • Minimum: 0000
    • Maximum: 9999
  • Bluetooth:
    • Class2 BT2.1 + EDR
    • A2DP 1.2
    • AVRCP 1.4
  • Wireless Transceiver: 2.4GHz
  • RF Power Transmitter: 7 dBm
  • Dimensions:
    • Exterior: 1.77 x 4.17 x 1.77 inches (45 x 106 x 45mm)
    • Cavity: 1.77 x 1.77 x .41 inches (45 x 45 x 36mm)
    • Face Cover: 1.30 x 2.60 inches (33 x 66mm)
  • Range: 33 feet (10m)
  • Warranty: 2-Year
