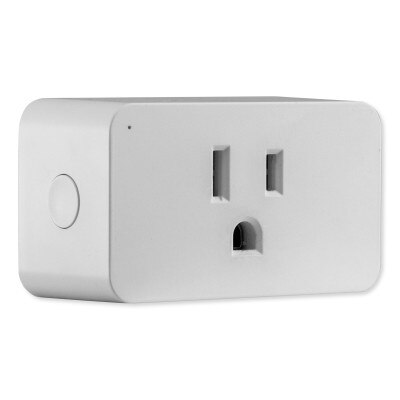

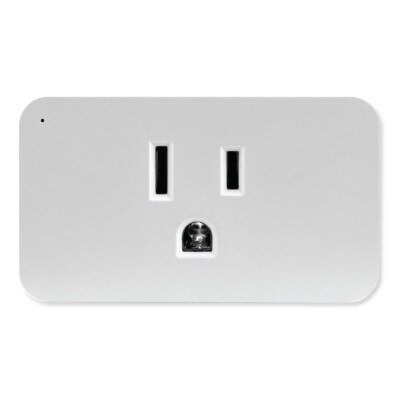

JascoPro Series Z-Wave Plus v3 Plug-in Smart Switch, 800 Series

Add Z-Wave Control & Monitor Energy

Add Z-Wave Plus control to any plug-in device and monitor its energy usage with the JascoPro Series Z-Wave Plus v3 Plug-in Smart Switch, 800 Series. This Z-Wave 800 compatible plug-in control module plugs into a standard outlet and provides remote Z-Wave control and inclusion into automation scenes to devices plugged into the Smart Switch. A button on the side of the module allows you to manually turn On/Off the module and prevent the controlled device from being controlled from the local switch. This Z-Wave device can be programmed to switch between traditional Z-Wave mesh transmissions and Z-Wave LR (Long Range) transmissions. Z-Wave LR communication protocol trades Z-Wave's traditional wireless mesh functionality with extreme long range point to point transmissions up to 1 mile/1.6km between a Z-Wave Hub and Z-Wave LR device. You can choose what kind of Z-Wave communication protocol you'd prefer the Plug-In Smart Switch to use from your Z-Wave hub's mobile application.

• Smart plug-in module adds remote and automated On/Off control to plugged-in device via Z-Wave hub/controller
• Can be included in multiple Z-Wave automated groups or scenes
• Manual On/Off control via side push button allows/prevents power to flow to plugged in device

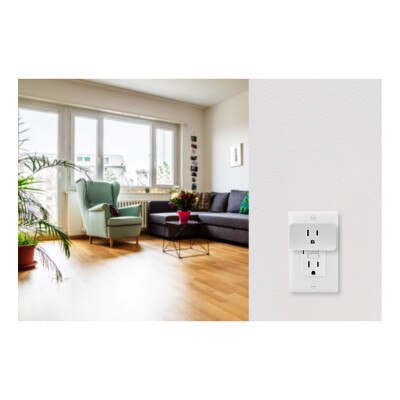

• Compact design doesn't block neighboring outlets
• Can communicate with either standard Z-Wave mesh protocols or Z-Wave LR point to point protocols
• Standard Z-Wave mesh protocol range reaches up to 150 feet (45m) line of sight to the nearest Z-Wave receiver or hub
• Z-Wave LR point to point protocol reaches up to 1,300 feet (396m)
• Z-Wave 800 software provide increased power, longer range, faster transmissions, and improved security
• Z-Wave Smart Start technology pairs news devices quickly and S2 framework ensures enhanced security

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 1300ft/400m (or 7900 ft/2400m point-to-point range with Z-Wave LR), three layers of encryption, faster operation, and longer battery life.

Contents

• Plug-in Smart Switch
• Manual

Jasco: Leader And Innovator In Electronics

Established in 1975, Jasco Products is a leader in the design and development of home automation products and wireless accessories. Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 79244
• UPC: 030878792448
• Color: White
• Protocol: Z-Wave Plus 800 series
• Signal Frequency: 908.4/916MHz
• Classic Range (Signal Repeating): Up to 150ft. line of sight to the wireless controller and closest Z-Wave receiver module
• Long Range (Direct to Hub): Up to 1,300ft. line of sight to the wireless controller, no signal repeating
• Power: 120VAC, 60Hz
• Max Load:
• Incandescent, LED, CFL: 1250W (10A)
• Motor: 1/2 HP
• Resistive: 1875W (15A)
• Operating Temperature Range: 32°to 104°F (0°to 40°C)
• Environmental Conditions: For indoor use only.
• Approvals: FCC, IC, UL
• Warranty: 2 Years

»Jasco 79244 JascoPro Series Z-Wave Plug-in Smart Switch Spec Sheet (.pdf)
»Jasco 79244 JascoPro Series Z-Wave Plug-in Smart Switch User Manual (.pdf)
