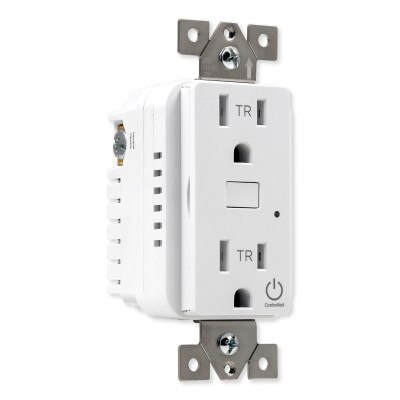

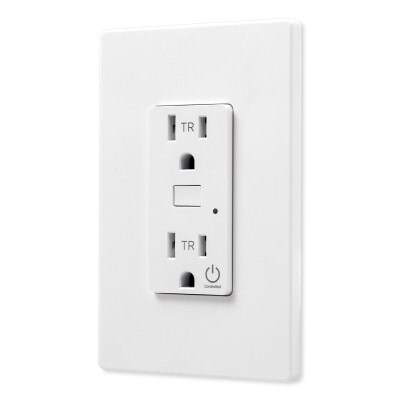

JascoPro Series Wi-Fi In-Wall Smart Outlet, 15A

Control A Single Device Or Lamp From Your Phone Via Wi-Fi

Add plug-in appliances and lights at home to your Wi-Fi smart home network with the JascoPro Series Wi-Fi In-Wall Smart Outlet, 15A. This Wi-Fi connected outlet adds smart wireless control to a single electrical device plugged into the bottom outlet, enabling you to remotely command plug-in lights, small appliances, or electronics from your mobile device via the JascoPro series app. The Outlet supports incandescent lights up to 1000W, LED/CFL bulbs up to 500W, and a total resistive load up to 1875W/15A between both outlets. The top outlet is a standard "always on" pass-through outlet for devices that do not benefit from smart home control. Devices plugged into the bottom outlet can be commanded to turn On/Off at your discretion, according to pre-scheduled times, or as a part of pre-programmed scene or automated routine. Unlike most other wireless devices, the JascoPro Series Wi-Fi In-Wall Smart Outlet can be directly controlled from your smartphone or tablet via Wi-Fi and does not require an automation hub to operate.

• Smart outlet adds Wi-Fi control over a plug-in light or appliance rated to 125VAC, 60HZ with total resistive load up to 1875W (15A)
• Supports plug-in LEDS & CFLS up to 500W and incandescents up to 1000W
• Schedule load to turn On/Off at specific times or group with other devices in scenes to control simultaneously
• Turn On/Off locally with button or over Wi-Fi via Jasco Pro Series app
• Tamper-resistant shutters prevent insertion of non-electrical plug objects
• Operate as a standalone device or integrate into an automation system
• Onboard memory maintains ON/OFF status of loads and during minor power fluctuations
• Works with IFTTT and SmartThings compatible devices
• Voice-control compatible with Amazon Alexa and Google Assistant

Control Wi-Fi Lighting with JascoPro

Control plug-in and hardwired equipment from anywhere using the free JascoPro™ mobile app for Android and iOS. The JascoPro™ app allows for on-demand On/Off operation, timer-based shutdown, daily or weekly scheduling, and custom automations via your Wi-Fi network. The JascoPro app acts independently of Wi-Fi automation hubs compatible with JascoPro devices.

Installation Details

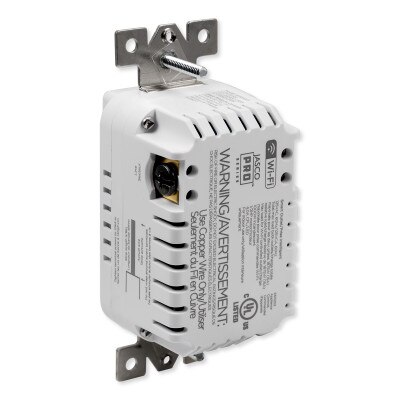

The JascoPro Series Wi-Fi In-Wall Smart Outlet, 15A fits into a single-gang box and replaces a standard wall outlet. The receptacle's shallow design allows for optimal spacing for wiring with the electrical box. The Outlet requires Line, Neutral, and Ground wires for installation.

Contents

• JascoPro Series Wi-Fi In-Wall Smart Outlet, 15A, White
• Light Almond Faceplate
• Manual

Notes

• For indoor use only.
• Standard rocker wallplate not included.
• Wireless operation requires a Wi-Fi network and the free JascoPro Series mobile app.

Jasco: Leader And Innovator In Electronics

Established in 1975, Jasco Products is a leader in the design and development of home automation products and wireless accessories. Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 64562
• UPC: 030878645621
• Power: 125VAC, 60Hz
• Total Max Load for Both Outlets: 1875W (15A) resistive load
• Max Load for Wi-Fi Controlled Outlet:
• 1000W incandescent
• 500W (4.0A) CFL/LED
• 1/2 HP motor
• 1875W (15A) resistive
• Signal Range: Up to 150ft. from the router
• Operating Temperature Range: 32 to 104° F (0 to 40° C)
• Warranty: 10 years
