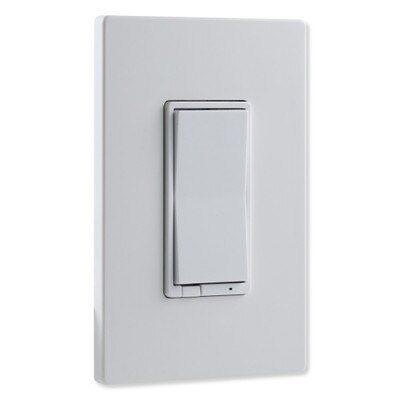

Jasco Zigbee 3.0 In-Wall Dimmer

SKU: JA43113

Order now and we'll ship same business day (if ordered before 3 pm PST).

$Dealer

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Command Dimmable Lights with Zigbee or Your Voice

The Jasco Zigbee 3.0 In-Wall Paddle Dimmer uses Zigbee technology to add remote Dim/Brighten control for compatible lights, along with On/Off control over fans or appliances. The paddle dimmer can be included in multiple automation groups or scenes and a blue LED indicator informs you of the switch's status and leads you to the switch through the dark. This wall switch utilizes Zigbee 3.0 technology, which enables it to directly connect to Amazon Echo products for voice control commands without requiring a Zigbee hub. Non voice command automated functions still require a compatible Zigbee hub.

  • Adds remote control over dimmable lights, fans, and appliances using Zigbee wireless technology
  • Adjust light levels for dimmable LED, CFL, incandescent, and halogen lights
  • Range up to 150 ft (line of sight) between the closest Zigbee receiver and wireless controller
  • Suitable for single- or multi-pole applications with compatible add-on switches
  • Can be included in multiple Zigbee automated groups or scenes
  • Supports direct connection with Amazon Echo products without requiring a Zigbee compatible hub

Installation Details

The In-Wall Paddle Dimmer supports single-pole or up to 5-way wiring configurations with compatible Jasco add-on switches (JA46199), and can be integrated into multiple automated zones/scenes in your Zigbee system. The switch requires standard screw terminal installation with wiring connections for Line (Hot), Load, Neutral, and Ground. Multi-pole installation also requires a neutral wire.

Notes

  • For indoor use only.
  • A neutral wire is required for installation.
  • Wallplate not included. Uses standard single-gang wallplate.
  • Direct voice command control compatible only with select Amazon Echo products.
  • A compatible Zigbee hub is required for non-voice controlled automated functions.
  • The switch is designed only for use with permanently installed fixtures.

Jasco: Leader And Innovator In Electronics

Established in 1975, Jasco Products is a leader in the design and development of home automation products and wireless accessories. Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

Specifications

  • Manufacturer Part #: 43113
  • Power: 120 VAC, 60 Hz
  • Frequency: 2.4Ghz IEEE 802.15.4
  • Max Load Ratings:
    • 1-Gang: 600W
    • 2-Gang: 500W
    • 3-Gang: 400W incandescent; 300W CFL/LED
  • Range: Up to 150 feet line of sight between the Wireless Controller and the closest Zigbee receiver module.
  • Environmental Conditions: For indoor use only.
  • Operating Temperature Range: 32 to 104° F (0 to 40° C)
  • Approvals: FCC, IC
  • Warranty: 2 Year Limited
