IST MyDoor Wireless IP Video Doorbell

Talk With Visitors At Your Front Door No Matter Where You Are

Use your smartphone or tablet to see or speak with visitors at your front door with the IST MyDoor Wireless IP Video Doorbell. This wireless video doorbell provides two-way communication between your front door and smart device using its adjustable camera, microphone, and HD video recording to a MicroSD card (sold separately). It also features Remote Unlock Technology (supports 2 relay outputs), allowing you to unlock your door or gate from a remote location via the free IST-MyDoor app.

• Allows you to see or speak with visitors at your door via a smartphone or tablet
• HD adjustable camera with 160° degree field of view
• Receive alerts when motion is detected or doorbell is pushed
• LED Night Vision Technology mode enables vision in near total darkness
• Record snapshots and video to MicroSD card (sold separately)
• Free App (iOS and Android) with easy setup, no monthly fees
• Remote Unlock Technology: 2 locks/strikes can be connected
• IP 65 Rated (vandal proof and weather resistant)

This smart video doorbell camera is useful for remotely answering your door and enhancing your home security. If a package is stolen off your porch, the motion-activated camera can potentially capture a photo of the thief and/or recorded them on video. This smart doorbell camera sports a hardy, IP65-rated weatherproof design to ensure long-lasting and reliable performance in nearly any outdoor conditions.

By downloading the IST-MyDoor app for iOS or Android, you'll receive notifications when someone rings the bell. You'll then be able to use your smartphone or tablet to have two-way communication with whoever is at your front door, unlock your door or gate, and monitor what is happening at your property via the HD camera.

Connectors

• Lock #2 Relay: You can connect up to two locks/strikes.
• Rest/Programming Button: This button serves as both the reset and initial programming button.
• SD Card Slot: Internal storage for the device can be expanded up to 64GB using a standard Micro SD card (the oldest data will be overwritten as the card reaches its maximum storage capacity).
• Lock #1 Relay: You can connect up to two locks/strikes.
• Ethernet/RJ45 Connector: Connect a CAT5 cable to this port (from your home router or switch) for the best data transfer.
• Adjustable Camera: Prior to installation, you can adjust the angle at which the camera is pointing.

Installation Details

Before installation, be sure that the MyDoor unit has been powered on and connected to the home Wi-Fi network. Position the unit to the desired installation location to determine the angle of the camera. Ensure to feed all of the wiring through the Rain Shield (included). After connecting all the wires to the MyDoor unit, make sure to secure the Rain Shield in place behind it. Position the Cover over the MyDoor unit and secure it in place with the included bolts.

Contents

• MyDoor Video Doorbell
• Cover
• Rain Shield
• Installation Hardware
• Manual

Notes

• Requires an Internet connection to connect to IST-MyDoor app.
• Requires MicroSD card (sold separately) to record snapshots and video.
• Requires door release mechanism and power source to unlock the door remotely via the IST-MyDoor app, both sold separately.
• Connect a CAT5 cable (sold separately) from your router or switch to get the best Internet data transfer speeds.

IST Takes You Inside Your Sound

Since 2005, IntraSonic Technology (IST) has been enriching the residential audio experience by manufacturing robust yet easy-to-use home audio systems. The IST product line offers a premium home audio selection, including music distribution systems, video door intercom systems, and associated accessories. Envelop yourself "inside your sound" with IntraSonic Technology.

• Manufacturer Part #:

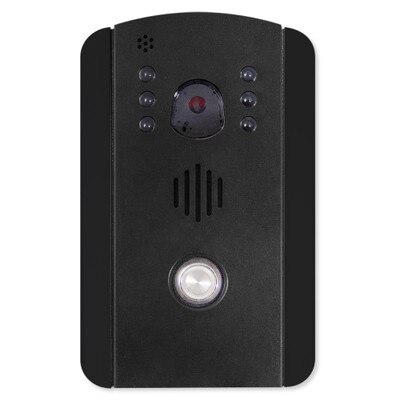

• MYDOOR-B: Black

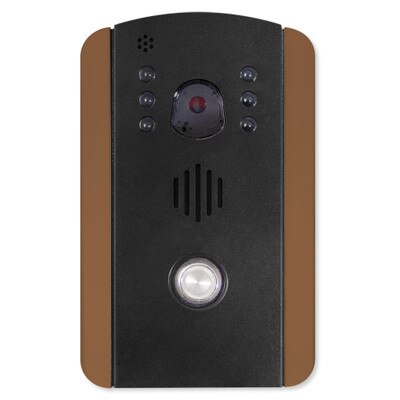

• MYDOOR-RB: Rose Gold/Black

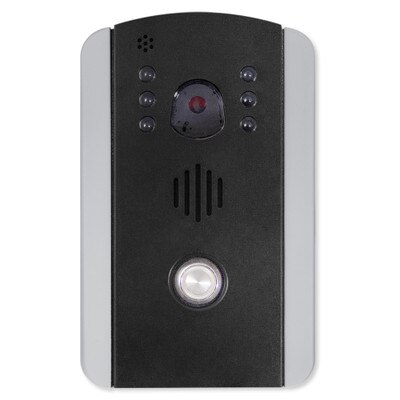

• MYDOOR-SB: Silver/Black

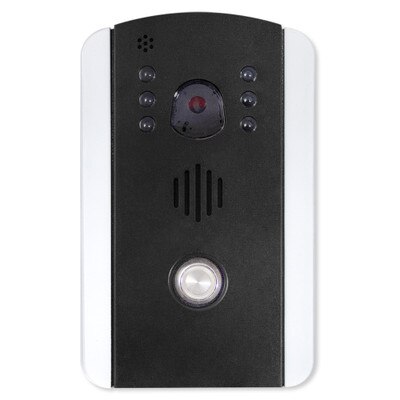

• MYDOOR-WB: White/Black
• Camera View: 160°
• LED: Night vision technology
• Wireless Door: Unlatch/release with 2 relays
• Sensor: Motion activated with notifications
• Network Port: Ethernet/RJ45
• Rated: IP65 (vandal proof, weather resistant)
• Video Recording: Built-in MicroSD Storage
• Warranty: 2 Years
