IST I2000 Music & Intercom Standard 5-Room Kit
Complete System For Five Rooms
Enhance the way you experience music and communication in your home by installing the IST I2000 Music Intercom Standard 5-Room Kit. Designed for new construction applications, this complete whole-home system combines music distribution and intercom communications to provide an all-in-one audio solution.
The sleek Master Station features a built-in speaker, connection points for all types of external audio sources, radio and more. The five included Room Stations and one outdoor Patio Station produce crisp, clear audio for five additional rooms and an outdoor area. The system can play up to three different audio sources at once, so your family members can listen to what they want, where they want. Need to talk to someone in another room? Just pause your tunes and make an intercom call. This system even allows you to answer your door via intercom.
- Built-in AM/FM radio with 10 presets
- Docking station and ports for external audio sources
- All stations support 8-ohm external speakers
- System can expand up to 20 zones (room, patio and door stations)
- Voice control and audio streaming compatible with Alexa

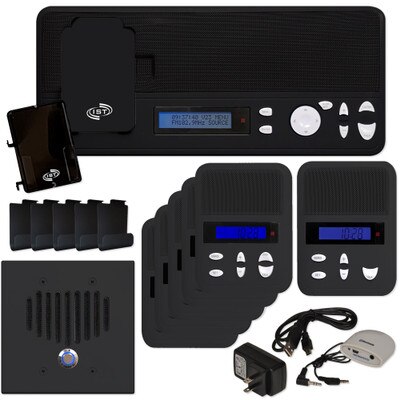

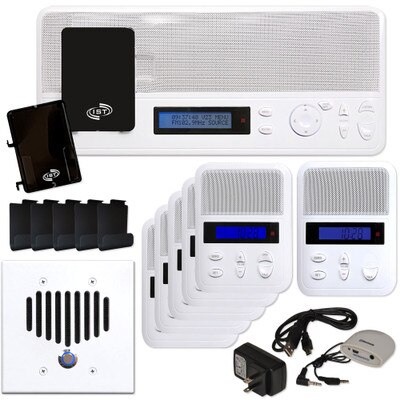

The I2000 Music Intercom 5-Room Kit comes with a Master Station, five indoor Room Stations, one outdoor Patio Station, one outdoor Door Station and one Bluetooth Receiver, all of which are available in three different colors. The color you choose will determine the color of all stations (Master, Room, Patio, and Door).
How the System Works
The Master Station is the main intercom station and distribution hub of the system. It allows you to communicate with and play music through any and/or all stations in the system. The system supports up to 20 stations total, allowing you to connect additional stations as needed.
- Master Station: As the hub of the system, the Master Station links all other stations with one another. The unit features a built-in AM/FM radio with 10 presets, a dock for MP3 players and other audio sources, USB and Firewire charging ports, and an optional door release feature. You can also control volume levels, bass and treble levels, clock settings, and privacy settings.
- (5) Room Stations: Each Room Station allows you to communicate with other stations in the system and play music distributed from the Master Station. When a call is initiated from any station, all stations will be paged for the call. When the call is answered, the conversation becomes private to the two stations involved, and the receiving station can talk hands-free. You can use any Room Station to listen in on other individual or multiple stations, perfect for monitoring children. Each Room Station also comes with an optional Hanger Bracket that allows you to dock a mobile device locally, rather than at the Master Station.
- Patio Station: This weather-resistant outdoor intercom station provides the same functionality as indoor Room Stations, with the exception of monitoring and door unlock features to ensure your privacy and security. The station is designed for installation in protected areas, such as a porch or covered patio.
- Door Station: When a visitor presses the doorbell button on the Door Station, all the stations in your system will produce your selected doorbell chime. You can then answer the door from any station.
- Bluetooth Receiver: Simply plug the receiver into the Master Station, and then pair it with a Bluetooth-enabled audio device, such as a smartphone or tablet. You can then stream music from your Bluetooth device through your speaker system.
You can create an entire whole-room audio system with the Master Station or any Room/Patio Station by optionally connecting 8-ohm 30W external speakers (sold separately) to the unit.
Add voice command compatibility with Amazon Alexa to play music or issue voice commands through your IST system. You can connect an Amazon Echo or Echo Dot to the master station via auxiliary cable or Bluetooth connection. For Bluetooth connection, go into the Amazon app, select Bluetooth Settings, and pair with IST. Once connected you can issue voice commands directly to your Amazon device or by pressing the Talk button on the master station or any room or patio station. Responses or selected media will be played through your IST intercom system.
- Master Station (I2000M)
- (5) Room Stations (I2000R)
- Patio Station (I2000P)
- Door Station (I2000D)
- (5) Hanger Brackets for MP3 player (I2000HGR)
- Personal Music Player Door (I2000PMPDoor)
- Bluetooth Receiver (BT-Receiver)
NOTE: Not all installation accessories are included. Requires the IST Intercom Rough-In Kit (12000H, sold separately) for installation.
IST Takes You Inside Your Sound
Since 2005, IntraSonic Technology (IST) has been enriching the residential audio experience by manufacturing robust yet easy-to-use home audio systems. The IST product line offers a premium home audio selection, including music distribution systems, video door intercom systems, and associated accessories. Envelop yourself "inside your sound" with IntraSonic Technology.
- Manufacturer Part #:
- Almond: I2000MPACA
- Black: I2000MPACB
- White: I2000MPACW
- External Speakers Supported: 30W 8-ohm speaker
- Master Station: 15-1/2(W) x 6-5/8(H) inches
- Room Station: 6-1/4(W) x 4-7/8(H) inches
- Patio Station: 4-7/8(W) x 6-1/4(H) x 1(D) inches
- Warranty: 2-Year Limited
