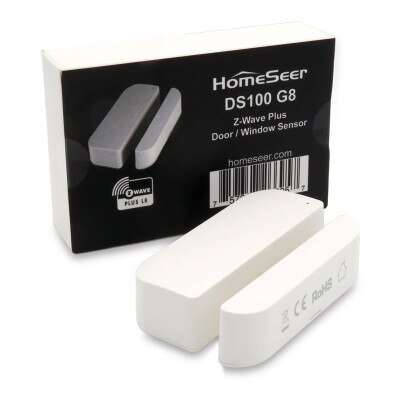

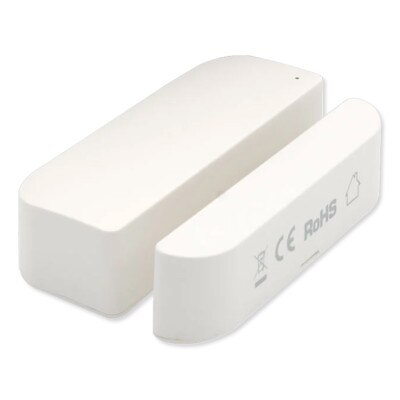

HomeSeer DS100 G8 Z-Wave Plus Long Range Door/Window Sensor

Improve Security With Wireless Z-Wave Plus Door/Window Sensor

Receive immediate alerts when your doors, windows, or other objects have been opened or closed with the HomeSeer DS100 G8 Z-Wave Long Range Door/Window Sensor. This magnetic contact sensor will inform you of the Open/Close status of an object, which includes doors, windows, drawers, and more. With a Z-Wave range of up to 300 feet (line of sight) or up to a mile, the sensor provides reliable coverage for most homes and larger offices. Just add it to your Z-Wave network and install it on your door or window for enhanced security. Additionally, it features Z-Wave Plus certification and S2 encryption for fast performance and enhanced security; and you can even add it to home automation scenes such as turning on your home interior lights whenever the front door is opened or sounding the alarm when a closed window is opened.

• Monitors open/closed status of doors, windows, drawers, and more
• Z-Wave Plus range
• Z-Wave 700 and Z-Wave LR software provide increased power, longer range, faster transmissions, and improved security up to 300 feet (line of sight) or up to a mile
• Works with certified Z-Wave controllers and supports S2 security
• Battery-powered (includes AAA alkaline batteries), no wiring required
• Small sleek design for indoor use only

Installation Details

The HomeSeer DS100 G8 Z-Wave Long Range Door/Window Sensor must be added to a Z-Wave network prior to using. The sensor easily mounts to the fixed jamb of the door/window while the magnet mounts on the actual door/window. The sensor has a distinguishing mark that identifies where the magnet should be aligned relative to the sensor. When the two are separated or brought together (opened or closed), the sensor will send an alert.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless mess relay range (or even greater point-to-point range with Z-Wave LR), three layers of encryption, faster operation, and longer battery life.

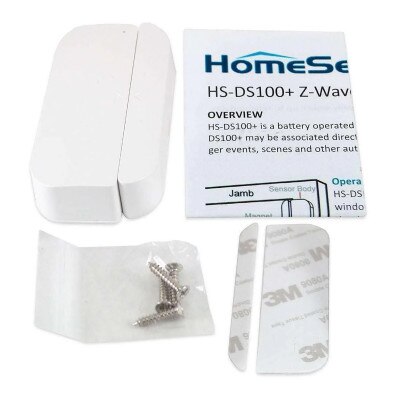

Contents

• DS100 G8 Sensor Body
• Magnet Piece
• Double Stick Tape
• Mounting Screws
• (2) AAA Alkaline Batteries
• User Guide

NOTE: Requires a Z-Wave network controller to operate.

Home Automation For Your Life And Family

HomeSeer can be used to monitor and control lighting, appliances, climate, security, telephones, irrigation, window shades, and home entertainment equipment. Then mix and match any combination of interfaces you like to suit the needs of your family. Control the system with your choice of in-wall button controllers, touchscreens, wireless remotes, microphones, mobile devices, standard telephones (voice and touch-tone control), and personal computers.

All HomeSeer home automation systems are web-enabled to allow access to your home while you're away at work or on vacation. Easily keep tabs on your home and family using any web browser from anywhere. Receive emails or calls when things happen at home or people come and go.

Now, with HomeSeer home automation, you can finally have the peace of mind that comes from knowing your family is safe and secure and your home is operating at peak efficiency!

• Manufacturer Part #: DS100 G8
• UPC: 757347266957
• Z-Wave Frequency Range: 908 MHz (US), up to 300 Ft line of sight (standard) or Up to 1 Mile (Long Range)
• Z-Wave Certification: Z-Wave Plus LR
• Power Supply: Requires (2) AAA 1.5V Batteries
• Operating Temp Range: 32 to 104°F (0 to 40°C)
• Dimensions:
• Sensor Body: 3 x 1.1 x .75 inches (76 x 28 x 19mm)
• Magnet Piece: 3 x .5 x .75 inches (76 x 13 x 19mm)
• Warranty: 1 Year
