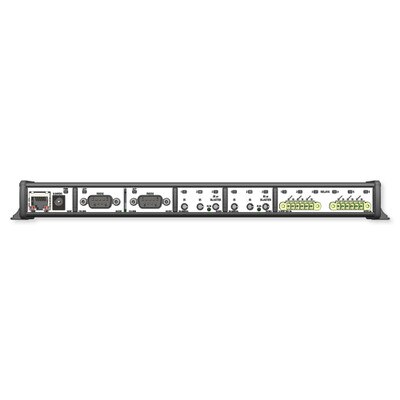

Global Cache Global Connect, GC7 w/ Serial x2, IR Ports x2, CC Relays

Usually ships within 3-5 business days

SKU: GC7NE2SL2IRRT
$503.50

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Modular Network Hub for Multiple Connections

The Global Caché Global Connect, GC7 is a high performance preconfigured modular network hub that is capable of supporting multiple devices communicating across different communication protocols simultaneously. This Global Connect GC7 Model includes Bidirectional Serial connections, IR Emitter and IR Blaster modules, and Contact Closure Relay connections.

  • Modular network adapter enables universal control over multiple connection types
  • Supports Serial, IR, and Contact Closure connections
  • Configure Module Setting using the Global Connect Online Web Portal
  • Control connected devices via PC or Internet-connected device
  • Reduces clutter by centering around a singular network connection hub
  • Backwards compatibility with existing Global Caché devices

Global Connect supports multiple communications simultaneously for a diverse range of automation, security, and entertainment applications. Each preconfigured Global Connect chassis provides a unique range of connection and customization for your local network and devices.

Single Ethernet Network Module

Each Global Connect includes a network module. The network module provides the network connection and power input for the entire unit. Network modules can be powered with any power supply between 5v and 24V DC. All Global Connect units ship with an appropriately rated power supply.

Serial RS232 Bi-directional

The bidirectional Serial module features a male DTE (Data Terminal Equipment) DB9 connector in order to connect RS232 devices to your local network using serial cables. Connected serial devices can then be configured by using Global Caché's simple and highly configurable online web interface.

3 IR Output/ 1 IR Sensor Input

Infrared (IR) modules can interact with any device that use IR transmissions, such as TV remotes. The module includes 3 IR transmitters, or "blasters", and 1 IR Emitter Sensor Input. The IR blasters send signals up to 35 feet to IR receivers. IR Emitters act as "shortcuts" for delivering IR signals to IR receiver by mounting directly onto receivers and converting signals sent over the Internet to selected device. These IR emitters have a range of around 1 inch (2.5 cm). It is important to place the IR emitters directly on top of the IR receiver of the controlled device. This allows IR commands to bypass any latent signal interference.

Contact Closure Relays

Contact closure relays use a simple dry contact to trigger a relay event by controlling power delivered to voltage or contact inputs. The Global Connect allows you to remotely trigger relay events from your PC or web-connected device.

Installation Details

The Global Connect is a freestanding chassis that can placed on your entertainment stand or in your office or server room. Connect Global Connect to your home network via Ethernet.

Global Caché Global Connect uses an online web tool to set up and configure each module installed in the Global Connect chassis. Additionally, Global Caché has a list of partner apps and software that can integrate with their online web tool and even allow for remote control of your connected devices.

To configure the Global Connect, download and run Global Caché's iHelp program. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.

Contents

  • Global Connect
  • Power Supply

IMPORTANT NOTE: Global Caché products are not available to ship outside the U.S. Please contact Global Caché directly for international orders.

Simply Connect With Global Caché

The Global Caché family of connectivity products provides choices for the industry professional and the consumer by significantly reducing costs and providing a scalable platform for today and the future. Global Caché's belief in open systems and the evolution of the automation market is being played out today, since cost-effective PC-based and phone-based control applications are now becoming widely available. iTach devices, Network Adapters, and other Global Caché connectivity products have radically changed the automation dynamic. These products are engineered to integrate easily into any control environment, even high-end proprietary systems, providing a path to open systems and better competitive leverage.

  • Manufacturer Part #: GC7/NE/2SL/2IR/RT

Single Ethernet Network Module

  • Network Connector: RJ45
  • Network Speed: 100Mbps, Full Duplex
  • Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
  • Power Input: Range: 5V-24V
  • Chassis Slots Occupied: 1

3 IR Emitters/ 1 IR Blaster Cable

  • Ports: 3 x IR Outputs/Sensor Inputs
  • Included Cables: 3 x IR Emitters, 1 x IR Blaster
  • IR Output Frequency: 20KHz – 500KHz
  • IR Learner Frequency: 20KHz – 200KHz
  • Chassis Slot Occupied: 2

Serial RS232 Bi-directional

  • Ports: 1 x Male DB9
  • Baud Rate: 300-115200 baud
  • Flow Control: Hardware, None
  • Parity: None, Even, or Odd
  • Data Bits: 8
  • Stop Bits: 1, or 2
  • Chassis Slots Occupied: 1

Contact Closure Relays

  • Ports: 6 x SPST Relays
  • Maximum Rating: 250V AC, 30V DC, or 6 Amps
  • Compatible Wire Gauges (Connector): 14-30 AWG
  • Relay Type: Normally Open (NO)
  • Chassis Slots Occupied: 2
  • Certifications: CE, FCC, CTick, RoHS
  • Warranty: 1 Year
