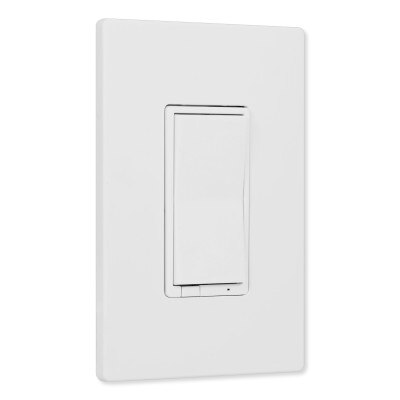

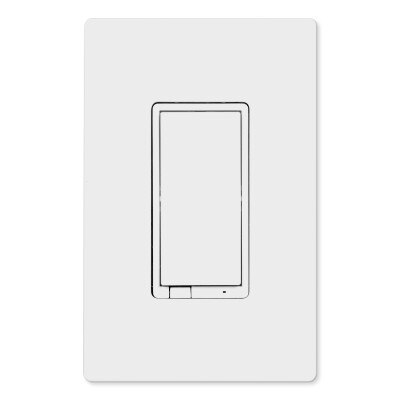

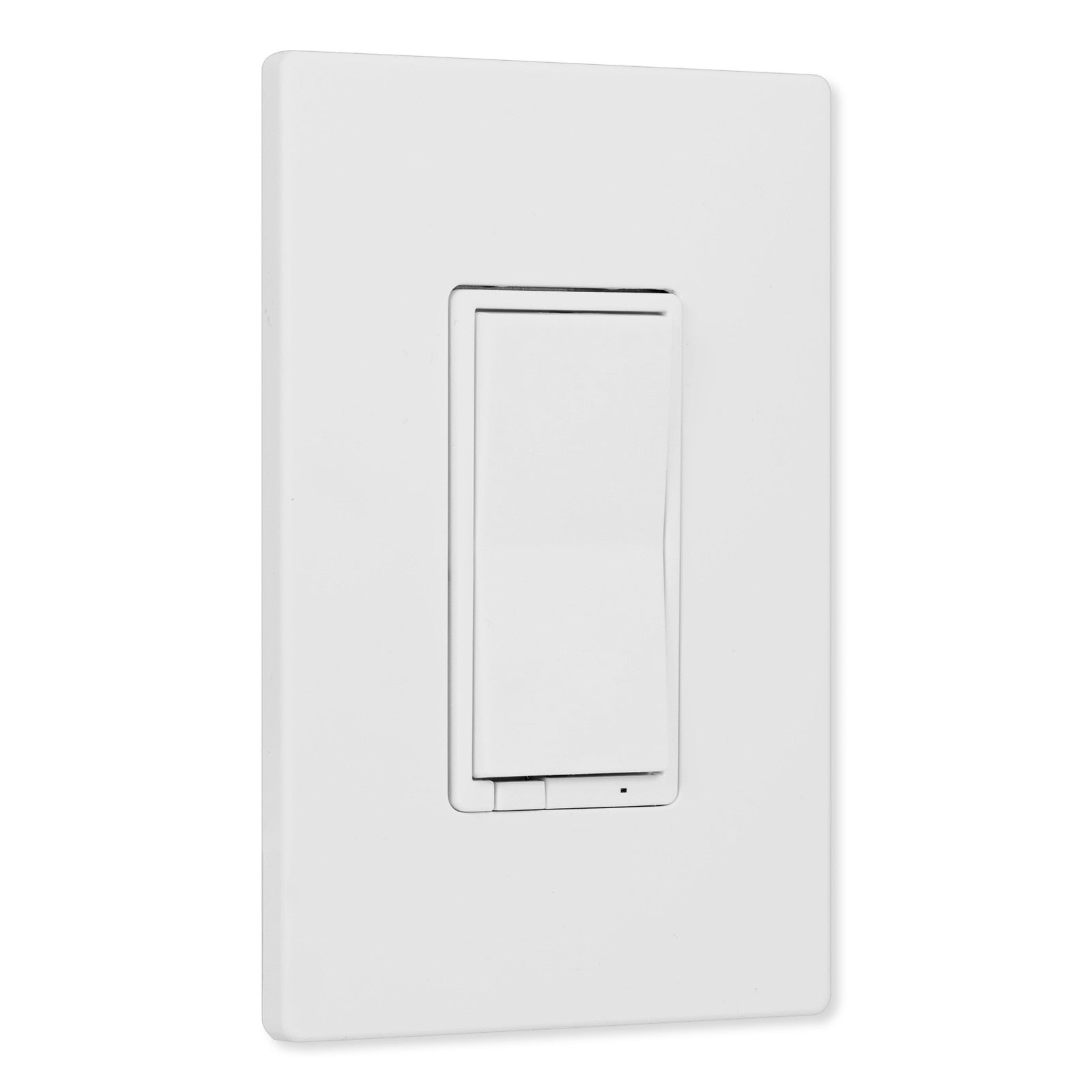

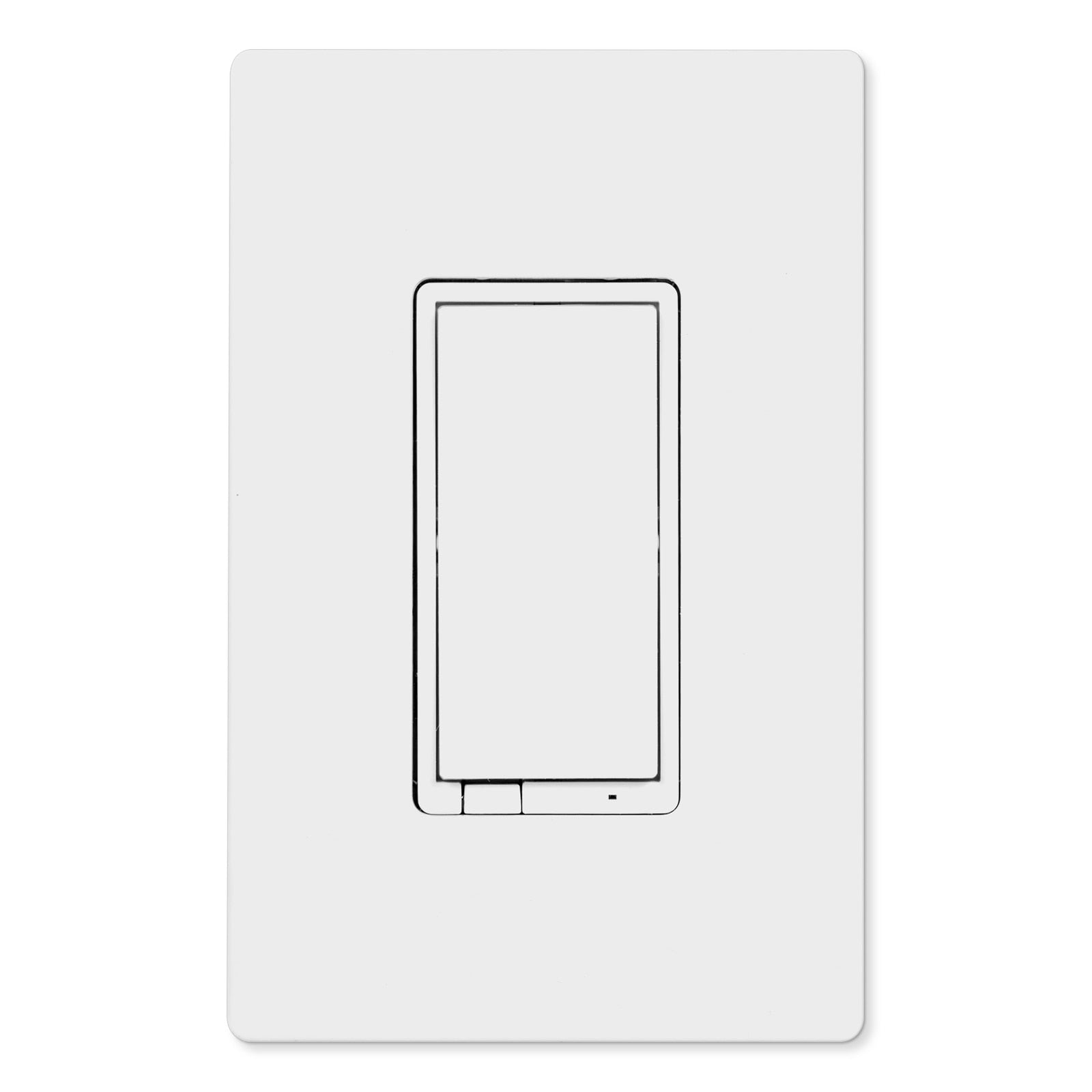

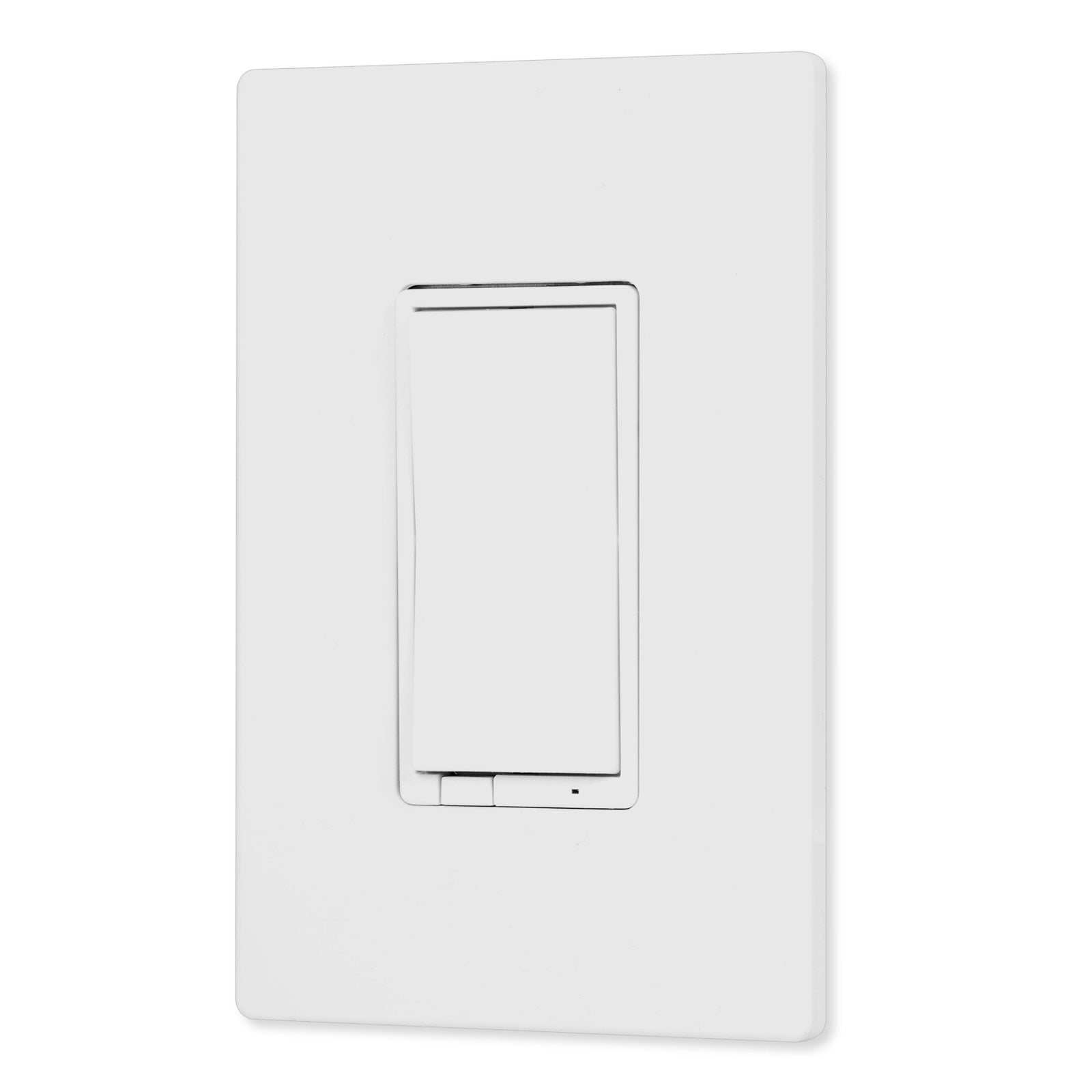

Enbrighten Z-Wave Plus v2 In-Wall Smart Paddle Dimmer, 700 Series

Command Dimmable Lights with Remote Z-Wave Control

Add the latest Z-Wave features to your dimmable lights with the Enbrighten Z-Wave Plus v2 In-Wall Smart Paddle Dimmer, 700 Series! This Z-Wave compatible dimmer adds Z-Wave Plus remote On/Off/Dim/Brighten control for wired lights and On/Off for appliances alongside manual control. The dimmer switch can be installed in single or multi-way wired applications to work in tandem with up to 5 add-on switches. Its Z-Wave Plus 700 compatibility enables it to utilize the latest Z-Wave features such as wireless range up to 2600 ft/800 m, three layers of encryption, and faster transmissions. Finally, a multicolor LED indicator leads you to the switch in the dark.

• Z-Wave toggle dimmer controls dimmable incandescent, halogen, LED, CFL lighting
• Supports loads up to 600W incandescent or 300W dimmable CFL/LEDs
• Issues standard On/Off control for non-lighting devices
• Suitable for single-pole or multi-pole applications with up to 5 additional switches
• Can be included in multiple Z-Wave automated groups or networks through a Z-Wave compatible hub
• Voice control with Amazon Alexa and Google Assistant through a compatible hub

Installation Details

The dimmer supports single-pole or multi-pole applications, capable of coordinating with up to five add-on switches in multi-way wiring configurations. The dimmer's line and load terminals are clearly labeled to aid installation. Multi-pole installation requires a neutral wire. The dimmer requires standard screw terminal installation with wiring connections for Line (Hot), Load, Neutral, and Ground. This model can also be included in Z-Wave compatible automation networks and multiple Z-Wave automated zones/scenes.

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Paddle Dimmer, White
• Light Almond Paddle

Notes

• Requires a Z-Wave network controller for remote operation.
• A neutral wire is required for installation.
• Wallplate not included.
• Uses standard single-gang wallplate.

Enbrighten: Leader And Innovator In Electronics

Enbrighten products are a subsidiary of Jasco, a leader in the design and development of home automation products and wireless accessories. Established in 1975, Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 58438
• UPC: 030878584388
• Color: White
• Size: 1-Gang
• Power: 120 VAC, 60 Hz
• Protocol: Z-Wave Plus
• Frequency: 908.4/916 MHz
• Maximum Loads: 600W, 2-gang 500W or 3-gang 400W incandescent, 360W/3A Dimmable CFL/LED
• Environmental Conditions: For indoor use only.
• Operating Temperature Range: 32 to 104° F (0 to 40° C)
• Approvals: FCC, IC
• Warranty: 5-Year Limited

»Enbrighten 58438 In-Wall Smart Dimmer Installation Manual (.pdf)
