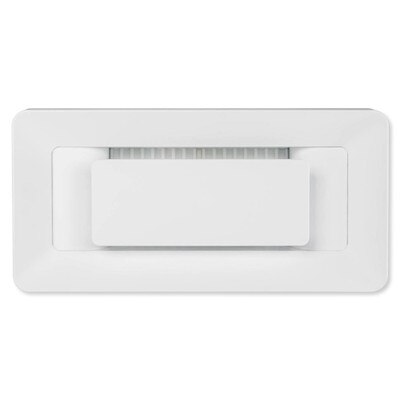

Ecovent Smart Wall Vent

Install Motorized Vents to Improve Airflow

Control airflow in your home with the Ecovent Wall Smart Vent. This room-by-room HVAC and air regulation device replaces your standard air vents with smart, wireless controlled vents that provide more precise temperature control for individual rooms. With enough of these HVAC wall vents installed, you can create and control multiple indoor temperature zones unique to each room within your home for a more comfortable and energy efficient home environment. The Smart Vent's built-in air pressure and temperature sensors monitor your air ducts to ensure your HVAC system runs smoothly, only restricting airflow within safe parameters.

• Individual room temperature control through motorized air vents
• Integrated temperature and air pressure sensors protect your HVAC system
• Quiet motor opens and closes vents when prompted
• Magnetic trim and battery cover for seamless aesthetic and easy adjustment
• Control room temperatures with Apple or Android smart devices
• Easy to install with just a screwdriver, no wiring, ductwork, or calibration
• Requires Ecovent Room Sensor (EVSENS) and Smart Hub (EVHUB)

Smart Room-to-Room Temperature Zones

In standard single zone HVAC systems, the measured and target temperatures are determined by the room where the thermostat is located. This setup causes some rooms to require more or less forced air than others due to environmental differences, such as rooms exposed to more direct sunlight or smaller rooms that are heated/cooled more quickly than other rooms in the home.

When you replace your standard air vents with Ecovent Smart Vents, you gain improved control over airflow into your rooms and around your home. The HVAC wall vents direct airflow from your HVAC system to targeted zones by opening/closing themselves to let the right amount of forced air into the room to reach and maintain target temperatures faster and with greater efficiency.

With enough Smart Vents installed, you can create comfortable temperature environments anywhere within your home. These HVAC wall vents enable you to adjust the temperature of targeted rooms without wasting energy and air on unoccupied or undesired spaces. This way you can cool down a sunny family room without freezing family members or roommates in their bedrooms.

It is recommended to outfit your entire home with Ecovents in order to protect your HVAC system and build a comfortable and energy efficient home environment.

Installation Details

Replace your standard wall vent in a single room with the Ecovent Smart Wall Vent. Once installed, connect the HVAC wall vent to the Ecovent Smart Hub along with the Room Sensor (both sold separately). Control the Wall Vent with the Ecovent smartphone app.

Ecovent App

Control your Ecovent Zoning System with the Ecovent App for iOS and Android. The Ecovent App allows you to manually adjust temperatures within individual rooms and/or schedule when to use the HVAC wall vents.

• Schedule usage according to time of day or by room occupancy
• Set individual temperature points for individual rooms
• Manually adjust temperature and airflow according to needs
• Receive alerts and notifications when temperature points have been reached

The Ecovent app requires a mobile device running iOS 8.0 or Android 4.4 or later.

Contents

• Smart Vent
• (4) AA Batteries

Notes

• Requires Internet connection and a forced air central heating and/or cooling system to operate.
• Smart Hub (ENEVHUB) and Room Sensors (ENEVSENS) sold separately.
• Recommended to replace all vents in a single room to achieve full airflow control.

Ecovent – Convenient Home Comfort

Ecovent is devoted to making indoor climate control and HVAC services more intelligent and accessible. Their intuitive smart vent zoning devices are designed to make living at home more comfortable and while also keeping your HVAC system running smoothly. Their smart vent system measures temperature and air pressure within individual rooms and air ducts to safely and efficiently distribute forced air throughout your home, allowing you to efficiently control your indoor environment without damaging your HVAC system.

• Manufacturer Part #:
• EV410W: 4 x 10 inches
• EV412W: 4 x 12 inches
• EV610W: 6 x 10 inches
• EV612W: 6 x 12 inches
• Connectivity: 915 MHz encrypted network
• Maximum Signal Range: 100m (328 feet)
• Materials: PC-ABS polymer and polyoxymethylene
• Color: White
• Compatibility:
• All ducted forced air heating and/or cooling systems:
• Single/variable speed fans
• Single stage, two stage, and variable speed furnaces
• Split systems, packaged units, and heat pumps
• Thermostats:
• Nest (1st and 2nd generation)
• ZEN Thermostats
• Physical Dimensions with faceplate: H x W x D
• EV410W: 5.84 x 11.84 x 2.03 inches
• EV412W: 5.84 x 13.84 x 2.03 inches
• EV610W: 7.84 x 11.84 x 2.03 inches
• EV612W: 7.84 x 13.84 x 2.03 inches
• Power Supply: 4 x AA Batteries
• Battery Life: 3 to 5 years
• Warranty: 5 years

»Ecovent Home Owner Brochure (.pdf)
»Ecovent Spec Sheet (.pdf)
»Ecovent System Overview (.pdf)

Ecovent Mobile App

Control your Ecovent Zoning System with the Ecovent App for iOS and Android. The Ecovent App allows you to manually adjust temperatures within individual rooms and/or schedule when to use the vents based on time of day or room occupancy.

• Schedule usage according to time of day or by room occupancy
• Set individual temperature points for individual rooms
• Manually adjust temperature and airflow according to needs
• Receive alerts and notifications when temperature points have been reached

The Ecovent app requires a mobile device running iOS 8.0 or Android 4.4 or later.

Download the Ecovent App. Click below
