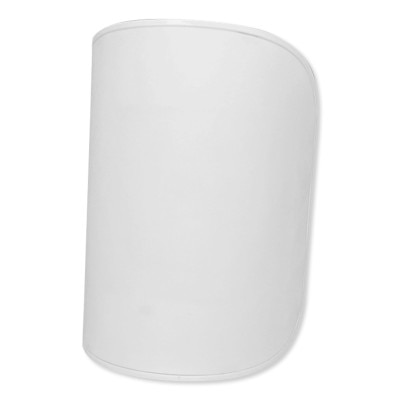

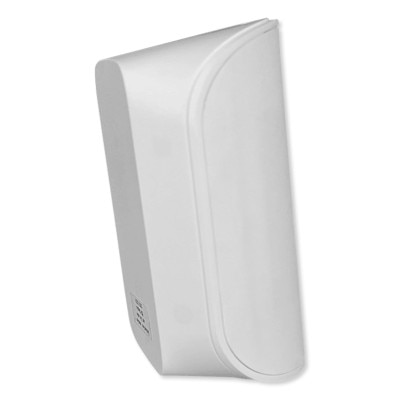

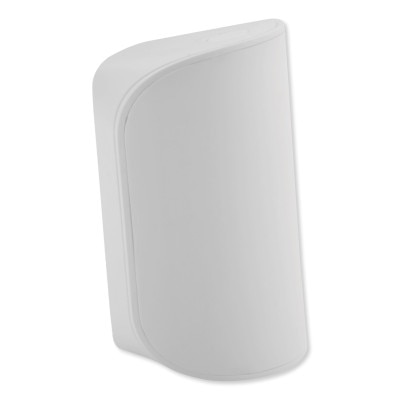

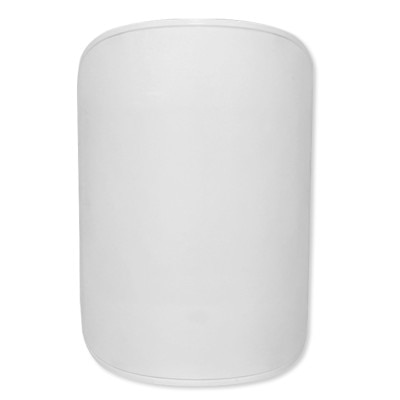

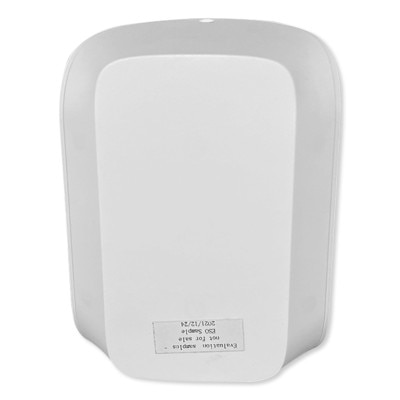

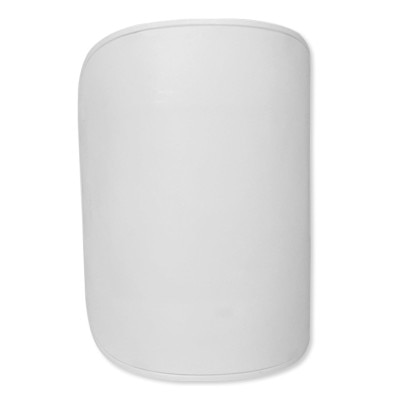

Ecolink Wireless PIR Motion Sensor with Pet Immunity

Indoor Motion Sensor With Pet Immunity Up To 85 lbs.

Improve your home security all while adding an option to automate other smart devices when motion is detected with the Ecolink Wireless PIR Motion Sensor with Pet Immunity. This motion sensor provides adjustable sensitivity levels of Normal and High and can cover a wide area measuring 40 feet by 40 feet (90° angle). Its Pet Immunity feature allows the sensor to ignore animal shaped movement up to 85 lbs. to help reduce false alarms. The sensor can be integrated into smart home automation scenes to trigger events such as turning on smart lights or adjusting the temperature when motion is detected within a room. The WST-741 Motion Sensor operates on the 319.5MHz frequency and is specifically designed to work with Interlogix and Quolsys panels.

• Covers up to 40 feet x 40 feet (90° angle) for reliable motion sensing
• Detection sensitivity levels from Normal to High with Pet Immunity up to 85 lbs.
• Works with Interlogix and Qolsys panels on the 319.5MHz frequency
• Battery-powered, no wiring required
• For indoor applications only

Contents

• Motion Sensor
• Vdc Lithium Battery (CR2450)
• Installation Guide

NOTE: For indoor use only.

Ecolink – Intelligent Security and Home Automation

Every Ecolink product originates as an insight – an idea generated by something that people want or something they want to do better. At Ecolink, it's not about the things they make, it's about the things they make possible. Ecolink was born from a pedigree of great distinction within the electronics industry. With countless years of design/development experience and numerous innovative and game-changing products, the Ecolink team designs and manufactures products to the highest standards of performance and quality.

• Manufacturer Part #: WST-741
• UPC: 851166005503
• Software Compatibility: GE, Interlogix and Qolsys
• Coverage Area: 40 feet by 40 feet, 90° angle
• Pet Immunity (max): 85 lbs
• Platform: Sub-GHz
• RF range (LoS): Up to 500 feet
• Radio / SOC: MAX7044
• Supervisory Interval (approx.): 60 minutes
• Light Immunity: 2000 lux
• Operating Humidity: 5-95% RH noncondensing
• Operating Frequency: 319.5 MHz
• Operating Temperature: 32° to 120°F (0° to 49°C)
• Battery: 3V Lithium CR123A
• Battery Life: 60 Months
• Dimensions: 3.5(L) x 2.6(W) x 1.72(H) inches (9 x 6.7 x 4.36 cm)

»Ecolink WST-741 Wireless PIR Motion Sensor with Pet Immunity Spec Sheet (.pdf)
