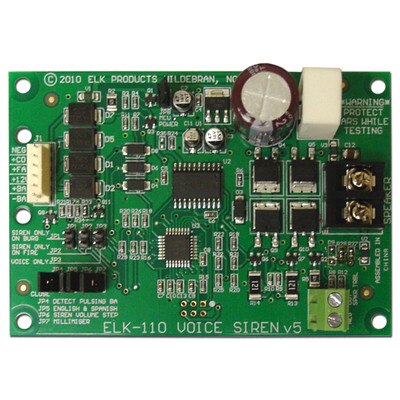

ELK Voice Siren Driver Module

SKU: ELK110

Order now and we'll ship same business day (if ordered before 3 pm PST).

$56.27

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Talking Alarm Tells You What's Happening

The Elk Voice Siren Driver Module has pre-recorded digital voice messages and siren sounds that trigger when connected with your home alarm system. When an alarm is activated, the corresponding voice message (Burglar, Fire, or Carbon Monoxide) and a loud siren alternately sound.

  • Compact and easy to mount
  • Siren only, voice only, or combined options
  • Bilingual voice (English, Spanish)
  • VolumeStep slowly increases siren volume
  • MilliMiser reduces current draw for controls with limited alarm output power
  • ComboTrigger: option for single alarm output controls which have the option of steady for burglar and pulsing for fire

Three Voice Messages

Voice messages are spoken in English only, or English followed by Spanish.

Burglar: "Intruder, intruder, the authorities have been notified, leave immediately." Followed by high/low alarm sound. This repeats until trigger is removed.

Intruder Message Complete

Fire: "Fire, fire, please evacuate the building." Followed by Temporal 3 Coded Tone. This repeats until the trigger is removed.

Fire Message Complete

Carbon Monoxide: "Warning, Carbon Monoxide, please evacuate the building." Followed by Temporal 4 Coded Tone. This repeats until the trigger is removed.

Carbon Monoxide Message Complete

Premium Products For Security & Automation

Elk Products designs and manufactures premium quality electronic equipment for the professional security and automation installer. ELK's M1 Cross Platform Control Family integrates rock solid security and full featured automation providing convenient user interfaces and remote control options. M1 can be integrated with other manufacturers systems for complete control of home or business.

Specifications

  • Manufacturer Part #: ELK-110
  • UPC: 762158001109
  • Three Input Channels: Burglar, Fire, and Carbon Monoxide
  • Speaker Trouble Supervision
  • Temporal Coded Tones: ANSI standard Audible Emergency Evacuation Signaling
  • Nom. Operating Voltage: 10-14 Volts D.C.
  • Nom. Current Draw: 1.25 Amps (8 Ohm Spkr)
  • Min. Low Current Trigger: 10.5VDC
  • Sound Level: 122 db at 1meter
  • Freq. Temporal 3=800Hz, Temporal 4=1000Hz
  • MilliMiser Current Drain 800 mA
  • Maximum Speaker Loading: 4 Ohms
  • Size: 2.75 x 4 inches (70 x 102mm)
