ELK Doorbell & Telephone Ring Detector

Converts Signal To Activate Automated Response

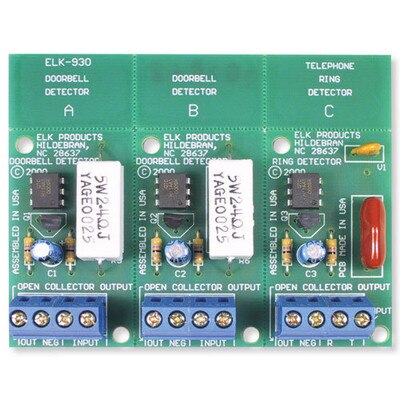

The ELK-930 performs three functions. It can detect ring activation from one or two doorbell buttons and a single telephone line. It conveniently isolates the voltage and current and produces a signal which can be used to trigger an automation controller, relay, timer, etc. The circuit board is pre-scored so that the individual detectors may be snapped off (separated) from each other.

• Small, Compact Size
• Double Sided Foam Tape Provided For Mounting
• Lifetime Limited Warranty

Doorbell

• Detects Doorbell Activation Current
• Inputs for Two Separate Pushbutton Locations
• No Interference With Lighted Pushbuttons
• Produces an Open Collector Output
• Powered by the Doorbell Transformer

Telephone

• Detects Telephone Ringing Voltage
• Provides an Open Collector Output that follows the ringing pattern

Doorbell & Telephone Automation

Communications systems are an important part of your automated home – from full-service Home PBX systems with voicemail, to intercom systems, to video door phones, to doorbell and phone detectors.

• Manufacturer Part #: ELK-930
• UPC: 762158009303

»Elk ELK-930 Doorbell & Telephone Ring Detector Spec Sheet (.pdf)
