ELK Alarm Engine Low Profile Keypad

SKU: ELKAEKP

Order now and we'll ship same business day (if ordered before 3 pm PST).

$135.71

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly To End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Control Your E27 System with a Programmable Keypad

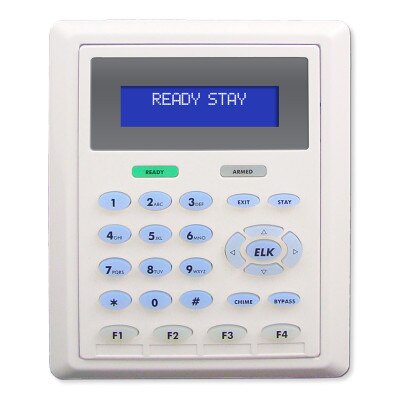

Add local control of your E27 Alarm Engine network with the ELK Alarm Engine Low Profile Keypad! The ELK-AEKP is a low profile, programmable LCD Keypad for theE27 Alarm Engine network. It features a 32 character blue/white backlit display and keys, 4 programmable function keys, plus the ELK menu navigation keys. The ELK-M1KP2 is compatible with "external" 26 bit Wiegand compatible proximity readers, allowing for the use of RFID keycards or keyfobs to be used for arming, disarming, accessing doors, and more.

ELK Products requires any professional installers of Elk E27 Alarm Engine Systems to create an ElkConnect account.

  • LCD keypad with programmable buttons provides local control of E27 Alarm Engine network
  • Blue/White Backlit Hi-Contrast LCD Display
  • Four Programmable Function Keys and Dedicated Menu Navigation Keys

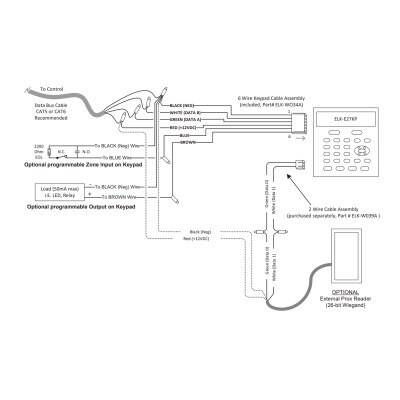

  • Connects to the E27CB via RS-485 Data Bus connection
  • Built-in Piezo Sounder with adjustable pitch
  • Input for 1 Supervised Zone
  • One Programmable "Switched Positive" Voltage Output

Installation Details

The Low Profile LCD Keypad surface mounts to a standard 1 or 2 gang electrical box. It may also be flush mounted if installed with a back box kit (ELK-M1BBK2, sold separately).

Contents

  • Low Profile LCD Keypad with Blue Display
  • Multicolor Labels
  • (4) #6 Flat Head Phillips Sheet Metal Screw
  • (4) #4-20 Pan Head Phillips Plastite Screw
  • 2200 Ohm Resistor
  • (5) Gel Filled B-Connector
  • Mini Jumper
  • 6-wire Flying Lead Cable Assembly
  • Instructions

Premium Products For Security And Automation

ELK Products designs and manufactures quality electronic equipment for the professional security alarm and home automation installer. Our products include siren drivers, speakers, relays, timers, programmable controls, surge suppressors, telephone equipment, amplifiers, recordable units, batteries and more.

Specifications

  • Manufacturer Part #: ELK-AEKP
  • UPC: 762158570018
  • Connection: 6 Pin Plug-in "Flying Lead" Connector (Included)
  • Color: White
  • Operating Voltage: 13.8 VDC
  • Current Draw:
    • ~30 mA Idle (low back light level, sounder silent)
    • ~85mA Fully Active (max. back light & sounder active)
  • Size: 4.658" W x 5.5" H x .95" D (.375" D with recess mount)
  • Warranty: 2-Year Limited
