DataComm Connected Media Box with Duplex Receptacle, Commercial Grade, 20A/125V

Wirelessly Connects Large Power Sources Behind Your TV & Includes A Duplex Commercial Grade Receptacle

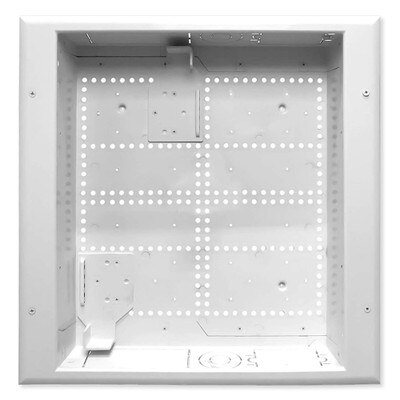

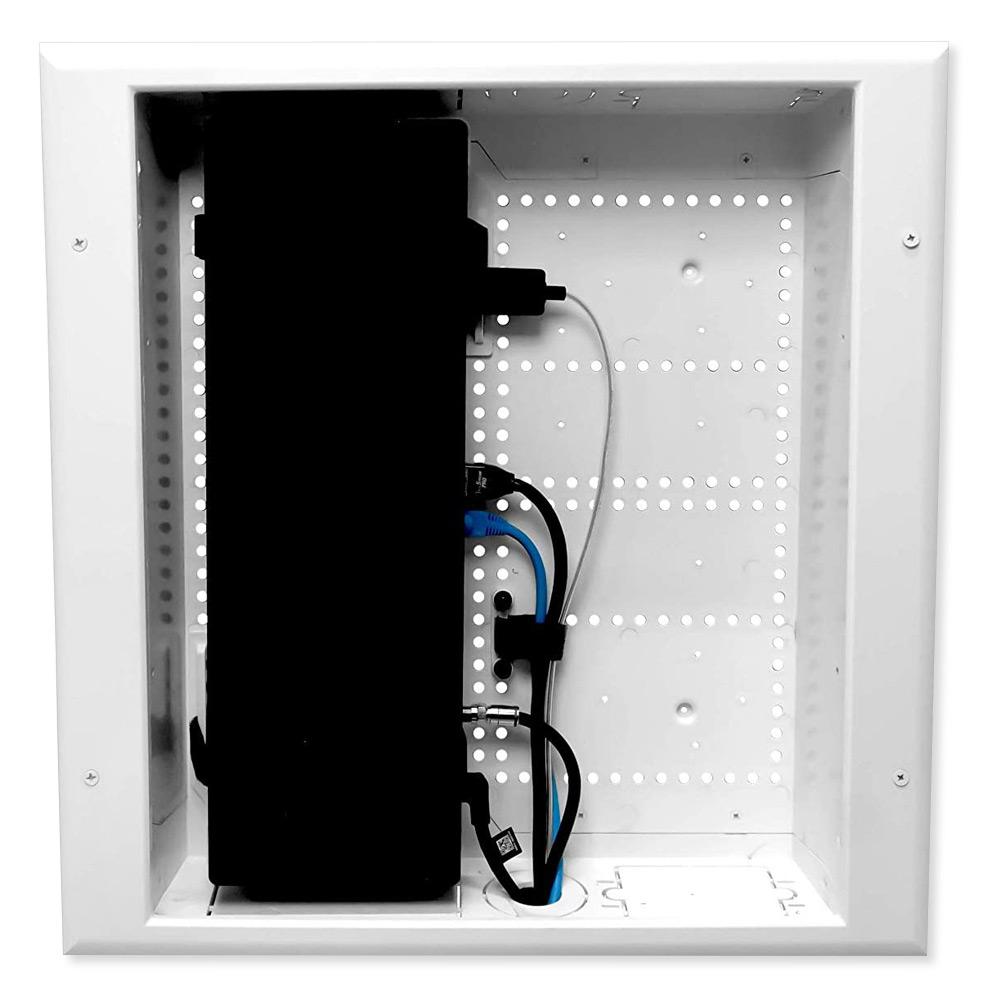

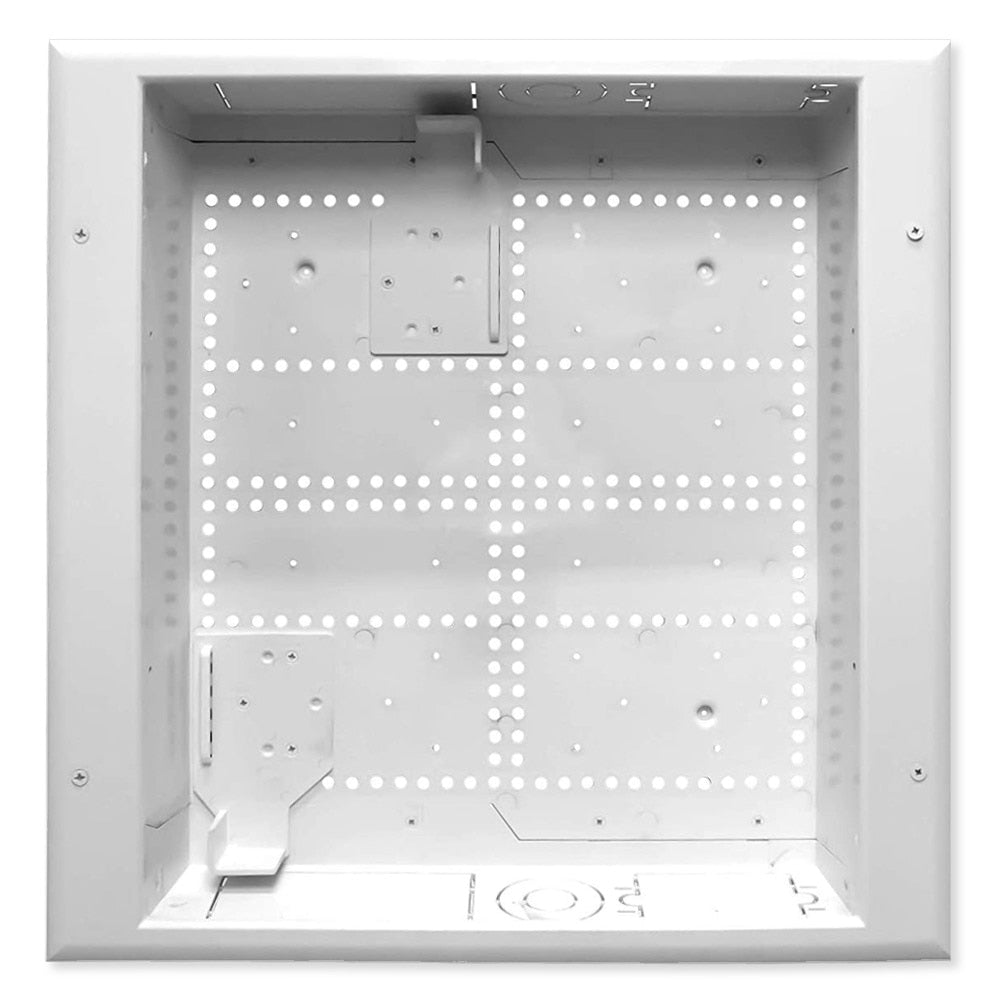

Give your TV a wireless look when connected to a large power source, like the Samsung One Connect Box, by installing the DataComm Connected Media Box with 20A/125V Duplex Commercial Grade Receptacle. This Connected Media Box features mounting brackets, two large knockouts for USB port access, multiple knockouts for a 2-inch diameter conduit, and knockouts for a single gang J-Box power module. The Connected Media Box can be mounted inside of studs or in front of them, and once installed is flush with the wall.

• Connects a large power source, like the Samsung One Connect Box, to your TV with a wireless look
• Includes a 20A/125V duplex commercial-grade receptacle and metal outlet box
• Knockouts allow access to USB ports, 2-inch conduit, and connection to a single-gang J-Box power module
• The hole pattern is standard 1x6 inches
• Airflow allowed due to open trim ring
• Can be mounted to the front or inside of studs
• Flush with the wall installation

Contents

• DataComm Connected Media Box with 20A/125V Duplex Commercial Grade Receptacle
• Trim Ring
• (2) Power Supply Mounting Brackets
• (2) 20-inch Hook and Loop Fasteners
• Installation Guide

Customize & Connect With DataComm

Long-known for enabling top-quality multimedia connections, manufacturer DataComm Electronics has bolstered its product offering with a complete collection of keystone-style wallplates and inserts. DataComm's Keystone line gives home theater and other multimedia installers the customization options they need from the media experts they trust. Keep data flowing smoothly with solid custom connections by DataComm Electronics.

• Manufacturer Part #: 45-8031-1C
• UPC: 660559016725
• Material: UL Rated ABS Plastic
• Volt Duplex Receptacle: 20 Amp/125
• Technical Features:
• 2 pole
• 3W
• Rear connection with side screw terminals
• Tamper-resistant
• Dimensions:
• With Trim: 17.50(W) x 18(H) inches
• Without Trim: 14.26(W) x 17.8(H) inches
• Certifications: UL 2416 (Audio/Video, Information, and Communication Technology Equipment Cabinet, Enclosure And Rack Systems)
