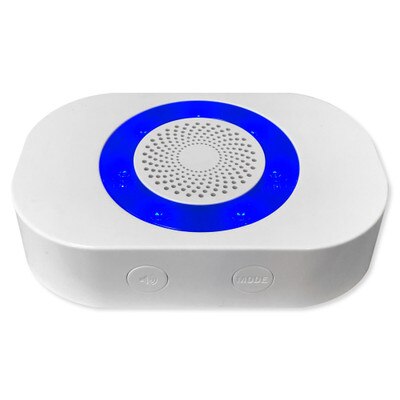

Dakota Alert 4000 Series Receiver with Relays

Receive Alerts From Up to 16 Transmitters

The Dakota Alert 4000 Series Receiver with Relays receives alert signals from Dakota Alert 4000 Series products. This updated model includes three outputs: two form "C" relay outputs and one 12VDC voltage output, that enable it to receive and pass along alert signals from multiple transmitters and sensors at the same time. Each of these outputs can be set to trigger after a specified delay of either 1 second, 5 seconds, 15 seconds, or 5 minutes after a sensor or transmitter is activated.

This receiver plugs into a standard electrical outlet and can be wall-mounted or placed on a table. Up to 16 Dakota Alert transmitters can be connected to the receiver and you can choose from up to 12 different tones to sound when it receives a signal from the transmitter, which will help distinguish various zones. The receiver also provides volume control and LED flashes so you can customize how you are alerted for easy distinguishment between zones.

Contents

• Receiver
• Power Adapter
• User Guide

NOTE: Dakota Alert's various series of products are not cross-compatible. The 4000 series transmitters are not compatible with 3000 series or 2500 series receivers.

Dakota Alert Wireless Security Equipment

Dakota Alert is the leading manufacturer of wireless alert products. Whether you're trying to keep an eye on outbuildings or just want to know if someone is coming up your driveway, our wireless alerts and accessories allow you to be completely aware of any presence on your property.

Product Features

• Volume Control
• LED Indicator Lights

Technical Details

• Manufacturer Part #: RE-4k Plus
• Number of Sensors: Up to 16 Sensors
• Outputs:
• 2 x form C (normally open and normally closed) relays, rated 3A
• 1 x 12VDC output max 400mA
• Operating Voltage: 12VDC – Power Supply Included
• Frequency: 433.92 MHz
• Wireless Range: up to 1 mile line of sight
• Product Dimensions: 3.3in (H) x 5in (W) x 1.3in (D)
• Warranty: 1 Year

»Dakota Alert RE-4K Plus Wireless Receiver User Manual (.pdf)
