Communication Security Wire, 18AWG, 6C, Shielded with Drain, 1,000'

Wire for Security & Audio Applications

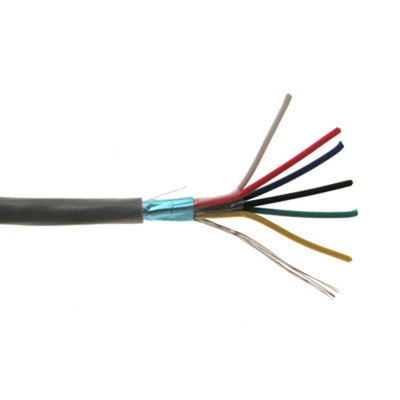

Ideal for various security applications, this indoor/outdoor Communication Security Wire (18AWG, 6C, Shielded with Drain, 1,000') can be used for alarms, intercoms, audio, signaling, and other power-limited control requirements. The wire's four stranded bare copper conductors and drain wire are twisted, shielded with overall AL mylar, and insulated within a sunlight-resistant PVC jacket. The cable includes a ripcord and the SCP Cable Labeling System with sequential markings for easy identification, and comes in spools of 1,000 feet.

• AWG (American Wire Gauge): 18
• Conductors: 6 (Black, Red, White, Green, Blue, Brown)
• Jacket Color: Gray
• Package: Spool
• Applications: Security systems, Intercom systems, Sound/Audio systems, Power-Limited controls.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

• Manufacturer Part #: 18/6SH-GY
• Marking: STRUCTURED CABLE PRODUCTS – – – P/N 18/6SH – – – 6 COND 18 AWG STRANDED SHIELDED TYPE CMR/CL2R FT4 75C — (UL) OR C(UL) E198137 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXXFT
• Regulatory: UL 444, UL 13, NEC Article 760, NEC Article 725
• Application: Security Cable for Outdoor

Construction Characteristics

Conductor

• Material: Stranded Bare Copper
• Size: 18AWG X 6C
• Construction: 16/0.24mm ±0.004mm

Insulation

• Material: PVC
• Min. Thickness: 0.27mm
• Avg. Thickness: 0.30mm
• Diameter: 1.70mm ±0.05mm
• Colors: Black, Red, White, Green, Blue, Brown

Shield

• Core Wrap: PE Tape
• Drain Wire (TC): 7/0.20 ±0.004mm
• Shield: AL Foil

Jacket

• Material: PVC
• Min. Thickness: 0.50mm
• Avg. Thickness: 0.55mm
• Diameter: 6.50mm ±0.10mm
• Rip Cord: Nylon
• Color: Gray

Electrical & Physical Characteristics

• Rating: 75°C 300V
• Conductor Resistance: Max 24.4ohm/km at 20°C
• Dielectric Strength: Min AC1.5KV
• AC Leakage Current Through Overall Jacket: AC 1500V
• Twists Per Foot: 3.0
• Cold Bend Test: -20°C 4 hours; No Cracking

Insulation

• Unaged:
• Tensile Strength: 13.8Mpa
• Elongation: 150 percent
• Aged:
• Tensile Strength: 11.7Mpa (100°C 168h)
• Elongation: 80 percent (100°C 168h)

Jacket

• Unaged:
• Tensile Strength: 13.8Mpa
• Elongation: 150 percent
• Aged:
• Tensile Strength: 11.7Mpa (100°C 168h)
• Elongation: 80 percent (100°C 168h)

»SCP 18/6SH-GY AWG Stranded Shielded PVC Security Cable Spec Sheet (.pdf)
