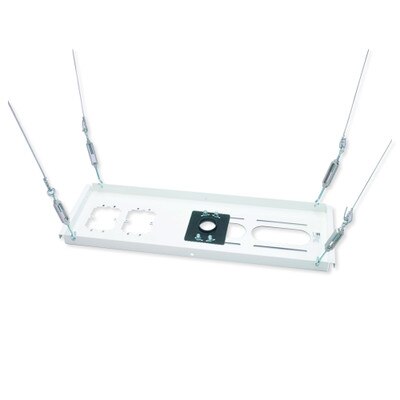

Chief Speed-Connect Above Tile Suspended Ceiling Kit

SKU: CMCMS440

Usually ships in 1-2 days.

$132.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Mount a Front Projector to Your Suspended Ceiling

When you need to mount a front projector to a suspended ceiling, use the Chief Speed-Connect Above Tile Suspended Ceiling Kit for easier installation. This complete kit is designed to support most front projectors less than 50 pounds (22.7 kg) and it installs above ceiling tiles either "600 x 600 mm" or "600 x 1200 mm".

  • Supports most front projectors less than 50 pounds
  • Installs above ceiling tiles "600 x 600 mm" or "600 x 1200 mm"
  • Includes all required installation hardware

The kit accommodates one 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum – ASTM B221) threaded extension column (not included). Everything you need is included for quick, minimal assembly and clamping to the ceiling tracks, including a 10-foot (304.8 cm) safety cable, 20 feet (609.6 cm) of strand wire, two outlet knockouts, four turnbuckles, wood eye bolts, concrete anchors, and a chrome ring.

Kit Includes

  • Ceiling Tray
  • Safety Cable
  • Support Wire, 20-foot
  • (2) Wire Clamps
  • Chrome Plate Ring, 1-1/2" NPT
  • Ceiling Mount Plate Bracket
  • Center Bolt Bracket
  • Installation Hardware

NOTE: Projector not included. Must be installed on top of an existing suspended ceiling tile. If the true ceiling is more than 36 inches (914mm) above the suspended ceiling, you must obtain additional anchoring wire. Use 14-gauge soft galvanized wire. A longer safety cable may also be required.

IMPORTANT NOTE: Chief Mounts products are not available to ship outside the U.S. Please contact Chief Mounts directly for international orders.

About Chief Manufacturing

Chief Manufacturing designs state-of-the-art mount and rack solutions that complement the technology they support. Chief made its mark in the industry by producing the original projector mount roll, pitch and yaw adjustments in 1978, making registration quick and easy. Today, Chief continues to break new ground with new products and unique, patented features that focus on ease of installation and flexibility for the professional installer.

Specifications

  • Manufacturer Part #: CMA440
  • Color: White
  • Weight Capacity: 50 pounds (22.7 kg)
  • Dimensions: 1.2(H) x 24.4(W) x 8.0(D) inches (30 x 619 x 203 mm)
  • Approvals: UL
  • Warranty: 10 Years
