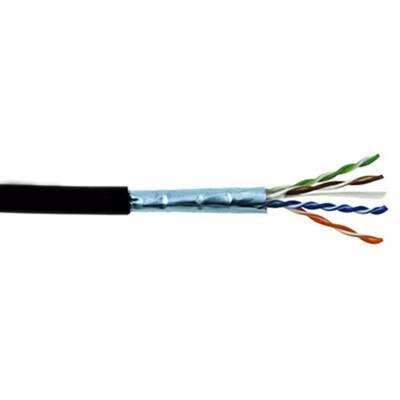

Cat6e Cable, Direct Burial, Shielded, Gel-Filled, 1,000'

Usually ships within 1-2 business days

SKU: WRCAT6SHDB
$333.95

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Strong, Flexible Cat6e Cable for Direct Burial

Ideal for carrying signals in high-speed applications for structured wiring, computers, and networks, this Cat6e Cable (Direct Burial, Shielded, Gel-Filled, 1,000') is a twisted pair cable (550 MHz 23 AWG) with insulated solid bare copper conductors and drain wire overall shielded by aluminum foil in an LLDPE jacket. The jacket is CMX rated for direct burial without conduit, providing high impact protection and superior puncture resistance to support underground wiring applications. Because this Class E model is gel-filled (flooded), it offers even greater resistance to moisture than the standard Cat6 model. The round, flexible cable includes a ripcord and the SCP Cable Labeling System with sequential markings for easy identification, and comes in spools of 1,000 feet.

  • Cat6e cable in a UV-resistant LLDP jacket rated for direct burial
  • Gel-filled (flooded) to provide superior moisture resistance
  • Ideal for use in structured wiring, computers, and networks
  • Meets TIA/EIA 568-C.2 Cat6 and ISO/IEC 11801 Ed2 Class E standards
  • Solid bare copper center conductor (23 AWG, 550 MHz)
  • High-density polyethylene (HDPE) insulation surrounds conductor

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

  • Manufacturer Part #: CAT6SH-DB
  • Sheath Printing: STRUCTURED CABLE PRODUCTS – – – P/N CAT6SH-DB – – – CAT6 SHIELDED DIRECT BURIAL ENHANCED 550 MHz 4 PR 23 AWG SOLID F/UTP GEL FILLED LLDPE VERIFIED TO ANSI/TIA-568-C.2 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXX FEET MM/YY
  • Category: F/UTP- GEL CAT6-4P-PE
  • Test Standard: ISO/IEC11801, TIA-568-C.2 YD/T1019
  • Conductor:
    • Material: SOLID-Bare Copper
    • Nom. O.D.: 0.565 mm, ±0.005 mm
  • Insulation:
    • Material: HDPE
    • Diameter: 1.12 mm ± 0.03 mm
  • Screening Material: Mylar plus AL/Mylar
  • Sheath:
    • Thickness: 0.60 ±0.05 mm
    • External O.D.: 7.8 mm ± 0.4 mm
    • U.V Stability: U.V Resistant
    • Material: LLDPE (complies RoHS)
    • Color: Black
  • Surface Printing:
    • Letter Height: 3.0 mm ±0.3mm
    • Color: White
    • Print Error / Space: <= ±0.5 percent, 1m
  • Core Color:
    • White: Blue/Blue
    • White: Orange/Orange
    • White: Green/Green
    • White: Brown/Brown
  • Packing: Wooden reel
  • Weight: NW: 19.5kg; GW: 22.3kg
  • Packing Length: 305m ±1.5m
  • Rip-Cord: Yes
  • Drain Wire: Yes

Sheath Physical Properties

  • Before Aging:
    • Tensile Strength: >=10.0 Mpa
    • Elongation: >=350 percent
  • Aging Period: 100°C x 24hrs x 10d
  • After Aging: Elongation: >=300 percent
  • Cold Bend Test: -20°C 4 hours; No Cracking; 8x Cable O.D.

Electrical Characteristics (20°C)

  • Delay Skew: <=45 ns/100m
  • Velocity Of Propagation: 68 percent
  • Unbalanced-to-Ground Capacitance: Max 330 pf/100m
  • DC Resistance Max: 9.38 ohms/100m
  • DC Conductor Resistance Unbalance Max: 5.0 percent
