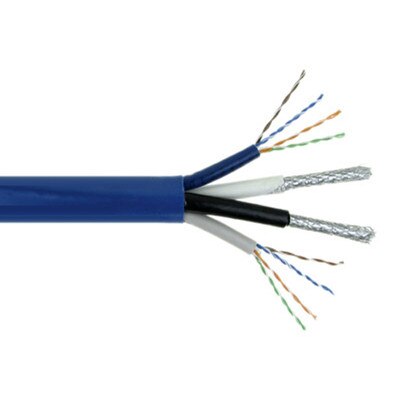

Bundled Cable (2 RG6/U Quad Shield, 2 Cat6), 500'

Perfect For Media Installation

This power limited circuit cable for general purpose applications consists of two standard 23/4 pair Category 6 cables (97272) and two RG6/U quad shield coax cables (92041) cabled together with a tubed PVC jacket. It’s great for home audio, home theater, and home automation applications.

• 500-foot spool of bundled cable in a tubed PVC jacket
• With two RG6/U Quad Shield coaxial and two standard 23/4 pair Cat6 cables
• In-wall rated, UL listed, approvals for NEC CM, CEC CMG FT4, RoHS, CE

It All Starts With The Wire!

If you want to enjoy the wonders that technology can bring to your home today and in the future, let me tell you ... IT ALL STARTS WITH THE WIRE. A small expenditure today, while your home is being built, will insure that you can have multimedia excitement delivered to every room in your home. Avoid more costly and messy retrofitting on later on, put Multi Mode Bundled Cable inside your walls while you are building. Even if you don’t use all of the capability of this cable you can leave it unfinished inside the walls until such time as you upgrade your home’s technology level later on. Can you imagine tearing open the walls to do this? It will add value to your home. Multi-mode cabling gives you the flexibility to meet the demands of the future.

• Manufacturer Part #: HNC-8
• Cable 1: Green 23/4PR Cat 6
• Cable 2: Blue 23/4PR Cat 6
• Cable 3: Black 18ga Quad Shielded RG 6/U Coax
• Cable 4: White 18ga Quad Shielded RG 6/U Coax
• Diameters:
• Cable 1 0.230" Nom.
• Cable 2 0.230" Nom.
• Cable 3 0.295" Nom.
• Cable 4 0.295" Nom.
• Overall Jacket Material: PVC
• Overall Jacket Thickness: 0.021" Nom.
• Overall Cable Diameter: 0.692" Nom.
• Approximate Cable Weight: 166.7 Lbs/1M’ Nom.
• Flame Rating: UL 1581 Vertical Tray Flame Test

Electrical Properties:

• Temperature Rating: -20 to 60 degrees C
• Operating Voltage: 300 V RMS Max.

»SCP HNC-8 Bundled Cable (2 RG6/U Quad Shield, 2 Cat6) Specifications (.pdf)
