Autoslide Microwave Wired Sensor, Twin Pack

Activate Your Autoslide System As Your Approach the Doors

Make your Autoslide system truly automated with the Autoslide Microwave Motion Sensor, Twin Pack. This pair of RF microwave motion sensors detect movement within their area of detection and signals your Autoslide system to Open in time for someone to pass through the door. These microwave sensors are a great choice to install in sunny areas, where an IR sensor could be inhibited by constant sun exposure.

• Compatible with all Autoslide systems
• Senses motion via disturbances within 10 x 13ft radar range
• Great for heavy sun areas where IR sensors are less effective
• Battery life lasts up to 2 years
• Directly wired to Autoslide sensors for reliable performance and continuous power

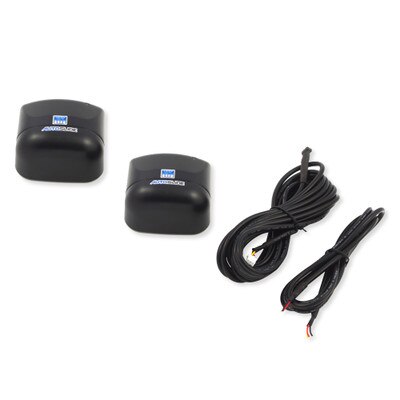

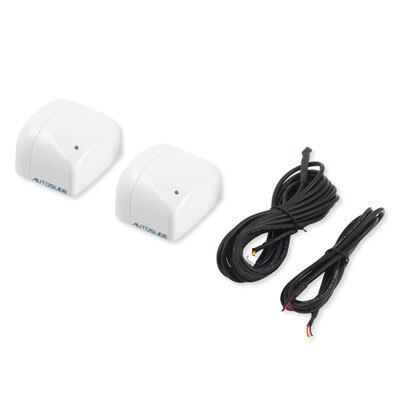

Contents

• (2) Microwave Sensors
• (2) 8ft Sensor Cables
• (4) Screws

NOTE: Do not install the sensor above 3m in height, as it may not detect pets or small children.

Automatic Sliding Doors For Your Home

Autoslide is recognized as an affordable, convenient, and practical solution for everyday's little inconveniences. It is a long awaited necessity for elderly and physically challenged, and a welcome convenience for pet owners who want less hassle when their pets want to come in and go out.

• Manufacturer Part #:
• Black: AS051MWBT
• White: AS051MWWT
• UPC:
• Black: 636836370118
• White: 636836370125
• Outer Dimensions: 64mm x 55mm x 35mm
• Launch Power Density: 5m W/cm^2
• Launch Frequency: 24.125 GHz
• Installation Height: Below 3.5m
• Supply Voltage: 12V to 24V, AC/DC
• *Angle Adjustment: 0° to 90°
• Power Consumption: 1W (max)
• Max Detecon Range: 4m (width) x 3m (depth)
• Temperature Range: -20°C to +65°C
• Output Relay Maintain Time: 1.5s
• IP Protection Rate: IP54
• Warranty: 2-Year Limited

»Autoslide Microwave Sensor Installation Manual (.pdf)
