Autoslide Elite Sliding Door Starter Kit

Automatically Open and Close Heavy Sliding Doors

Easily open and close your heavy sliding doors with the Autoslide Elite Automatic Patio Door Kit. This automatic door opening system is designed to automate opening and closing of heavy sliding doors, including patio doors, hurricane impact doors, thermal doors, or heavy internal doors. The Autoslide Elite includes new software, a stronger motor, and a larger power supply compared to the standard Autoslide.

• Automated motorized sliding door system opens/closes sliding doors
• Compatible with heavy sliding patio doors, hurricane doors, etc
• Light Indicator for 4 different modes: Automatic, Hold Open, Standby, and Pet
• Moves door panels with a drag force between 12 to 35 pounds
• Controlled by push-buttons and motion sensors
• Voice Control Compatible with Amazon Alexa

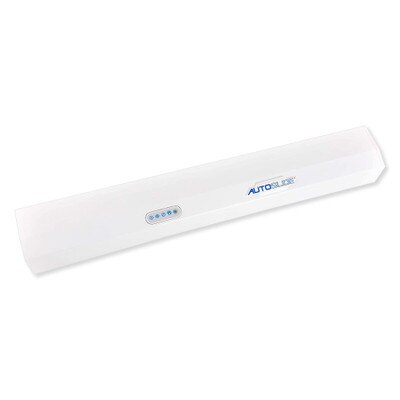

Autoslide Elite is an automatic door system designed to move heavy sliding door panels with up to 35lbs of drag force, creating smooth and steady open/close operation. The Autoslide electronic controller is encased in aluminum housing, providing a clean aesthetic and a functional defense from the elements.

The Autoslide system features four operating modes with corresponding colored LED lights:

• Automatic Mode (green LED): The door will open when a push button or sensor is triggered and close after a preset time has elapsed.
• Hold Open/Toggle Mode (blue LED): The door will open and remain open until another mode is selected.
• Standby Mode (red LED): The Autoslide will not drive the door, allowing for manual operation.
• Pet Mode (orange LED): For use with Autoslide pet sensors and when a pet opening width has been set. The door will open a preset width when any Autoslide pet sensor is triggered and close after the preset time has elapsed.

The Autoslide Elite system comes standard with two wall mounted push buttons for easy activation. Up to 15 push buttons can be included into a single Autoslide system. Additional sensors, like infrared motion sensors, are sold separately and add other ways to control your sliding doors.

The Autoslide Elite controller can mount on to three different positions onto your sliding doors, over the fixed panel, over the sliding panel/opening, or underneath the fixed panel. Selecting a position depends on the direction the doors slide and preferred aesthetic. To power the Autoslide, simply plug it into a regular wall outlet.

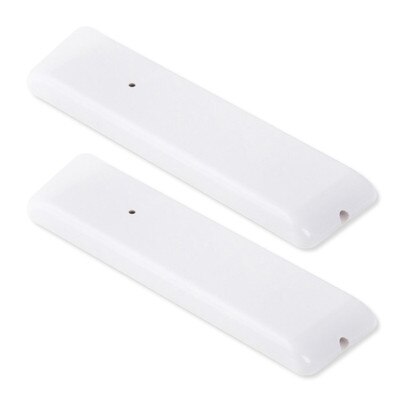

The included wireless pushbuttons mount onto nearby flat surfaces with included double sided tape.

Contents

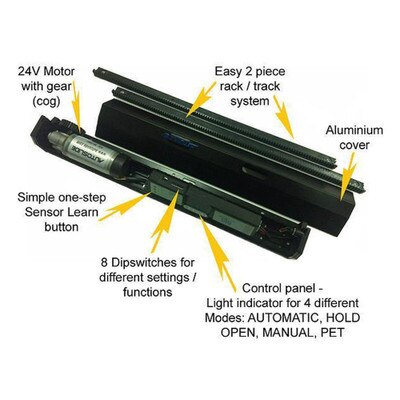

• Autoslide drive system with Elite Motor
• Aluminum cover
• (2) Wall mounted wireless push buttons
• (2) 20" racks with assembly kit
• Power supply
• Installation hardware
• Instruction booklet & Installation DVD

NOTE: Common household installation tools and a powered drill are required for installation.

Automatic Sliding Doors For Your Home

Autoslide is recognized as an affordable, convenient, and practical solution for everyday's little inconveniences. It is a long awaited necessity for elderly and physically challenged, and a welcome convenience for pet owners who want less hassle when their pets want to come in and go out.

• Manufacturer Part #:
• Black: ASE01BC
• White: ASE02WC
• UPC:
• Black: 647923341171
• White: 647923341188
• Maximum Drag Weight: 35 lbs.
• Maximum Door Width: 38 inches with included tracks (additional width possible with purchase of Extension Track)
• Power Supply: 110-240 VAC, 24 VDC Power Pack
• Safety Cut Off: Yes
• Weight: 8 lbs.
• Dimensions (L x H x W): 19in x 2.75in x 2.5in (490mm x 70mm x 65mm)
• Warranty: 2 Year

»Autoslide Installation Manual (.pdf)
»Autoslide AS05PBT Wall Mounted Push Button Installation Manual (.pdf)
