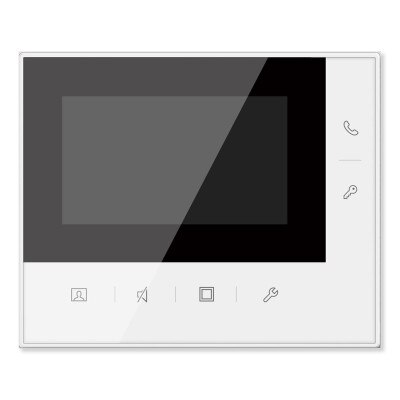

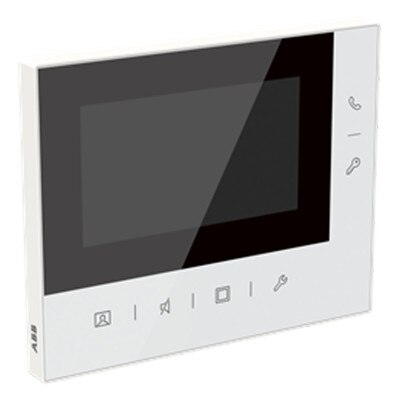

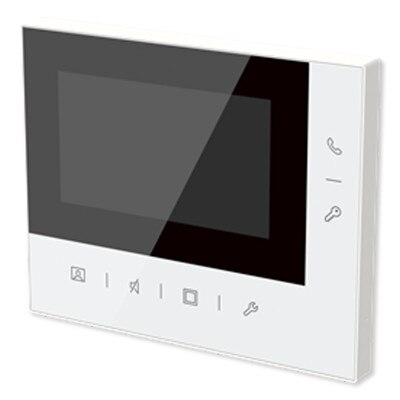

ABB-Welcome 4.3" Basic Video Indoor Station

Indoor Video Station For ABB-Welcome Systems

Stay connected to your outdoor stations or other indoor stations with the ABB Basic Video Indoor Station 4.3, White. This video intercom station is specifically designed to work with the ABB-Welcome Door Communication System and will allow you to see live video of visitors at your door, talk with people in other rooms inside and outside your home or building, and control select security and auxiliary functions. The video indoor station is designed with multiple buttons for communication, programming, unlocking, surveillance, muting, and adjusting the settings. It features a sleek white design and offers intuitive touch-sensitive controls, making it easy to use and install on a wall or desktop area.

• 4.3" color display for video communication with system cameras and door stations
• 6 buttons provide quick access to intercom, door entry, surveillance, mute, programming, and settings
• Supports quick access to up to 3 intercom or programming functions
• Up to four different ringtones to differentiate between various sources of incoming calls
• Surface mount or desktop installation

The station is installed indoors and connects to outdoor stations or any additional ABB indoor units (hands-free models only) using 2-wire connections. When the station rings, simply press a button to answer. The built-in speaker and microphone provide clear audio communication, and the six touch-sensitive buttons make it easy to access other functions in the system, including triggering door lock release, manually switching video feed, calling another connected station, and more.

6 Buttons for Various Applications

The station has six touch-sensitive buttons that are pre-programmed for various functions, and one that is custom programmable. These buttons function as follows:

• Call: Press to accept or terminate a call as well as to activate a manual call.
• Unlock: Unlocks the default lock of the Outdoor Station that is calling during a call request, or during surveillance it unlocks the default lock of the Outdoor Station that is under surveillance.
• Surveillance: View footage from connected cameras.
• Mute: Activates or mutes the ringtone and can activate or mute the microphone.
• Program: Customize the function of this button to release the 2nd lock of a connected Outdoor Station or for programming other functions.
• Settings: Adjust the station's settings.

Contents

• Video Indoor Station 4.3
• Manual

Notes

• For indoor use only.
• Requires 2-wire connection to an ABB System Controller, sold separately.
• Only compatible with the ABB-Welcome Door Communication System (indoor and outdoor stations).

ABB: Power & Productivity For A Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

• Manufacturer Part #: M22484-W
• EAN: 6955891822917
• Operating Voltage Range: 20-30 V
• Standby Current: 24 V, 6 mA
• Operating Current (incoming call current):
• 24 V, 150 mA
• 24 V, 200 mA (with induction loop)
• Setting Current: 150 mA
• Door Bell Current: 50 mA
• Display Size: 4.3"
• Display Resolution: 480 x 272 pixels
• Single-Wire Clamps: 2 x 0.28 mm² ..to 2 x 0.75 mm²
• Fine-Wire Clamps: 2 x 0.28 mm² ..to 2 x 0.75 mm²
• Operating Temperature: 5 °C to +45 °C
• Storage Temperature: -20 °C to +60 °C
• Dimensions: 5.98(D) x 4.8 (H) x 0.89 inches (152 x 124 x 22.6 mm)

»ABB-Welcome M22484-W Video Indoor Station 4.3 User Manual (.pdf)
