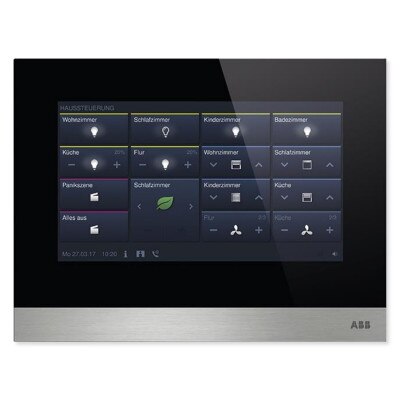

ABB-Welcome IP Touch 7", LAN + WiFi Interface with Induction Loop

Command Every ABB Application From One Touchscreen Panel

Control smart home and security devices, talk via video intercoms, and manage access into your building with the ABB Welcome IP Touch 7 In., LAN + WiFi Interface with Induction Loop. This powerful touchscreen panel combines the features of a smart home hub, a video intercom, a security panel, and more into a single, centrally located device. The ABB Welcome IP Touch unifies ABB's three signature product lines (free@home, i-Bus KNX, and Welcome IP) via Wi-Fi and PoE connections for simple installation and seamless control over a variety of devices and functions.

• 7" color touchscreen functions as smart home hub, video intercom, security and surveillance station, and more
• Touchscreen provides access to automation, intercom, door entry, security, and surveillance functions
• Communicates with ABB devices via WiFi or LAN connections using your network switch or router
• Fully programmable menus, interface, and smart applications via i-BUS web tool
• Supports room-to-room and broadcast communication
• Built-in induction loop for the hearing impaired
• Supports SD card (not included) to store voice messages, photos, and ringtones

About The ABB Welcome IP System

The ABB-Welcome IP System is a modular automation, intercom, security, and access control system that offers one flexible solution for various smart applications. The system is easy to install and perfect for any building, from a small single-family home to a residential complex. The IP Touch Station installs indoors and works with ABB devices including Welcome IP indoor and outdoor stations, free@home switches, compatible surveillance cameras, and various system modules. Applications across compatible devices include the following:

• Lights and Small Appliances: On/Off, Dim/Brighten, RGBW control
• Fans, Blinds, and Curtains: On/Off, Slider
• Automation: Scene Activation/Deactivation, Timer Programs, Notifications
• Video Intercom: Room to Room Communication, Room to Door Communication
• Access Control: Lock/Unlock Door Release Mechanism
• Security: Surveillance Feed Selection, Fault + Alarm Messages

How To Build Your System

Once your ABB-Welcome IP Touch Station is installed, the system can be expanded and customized as needed. Depending on available equipment and construction of the building, ABB-Welcome IP devices share the LAN network cables with other systems for exchanging information and providing power to connected ABB-Welcome IP devices. IP gateways can be used when interlacing seperate networks, which is practical when connecting a door system with a home network. Compatible ABB devices include:

• Custom or Pre-Assembled Outdoor Stations
• Hands-Free Indoor Stations (with or without video screen and/or induction loop)
• Handset Indoor Stations (with or without video screen and/or induction loop)
• Guard Unit (specialized station for security monitoring)
• Mobile Devices (requires Telephone Gateway and/or IP Gateway)
• IP Actuator (for enabling remote Internet access)
• Switch Actuator (for relay control)
• Elevator Lift Control Relay Module (for elevator/floor access control)

Installation Details

The station can be used in single-home residences or multi-unit residential or commercial buildings. The station connects to your network switch or router using a single PoE LAN connection and can be installed in a surface mount box (included), flush mount with recessed box (42361F-03), or placed on a desktop bracket. The IP Touch Station station functions in two modes: Master mode and Subsidiary mode. Only one indoor station can be set to Master mode within a single ABB-Welcome IP system.

Contents

• ABB Welcome IP Touch 7 In.
• Surface Mount Box

NOTE: The Touch 7" Station should be installed at least 5 feet above the floor. Requires PoE over Ethernet connection to a router or network switch. Requires use with at least one outdoor station that includes an audio module OR at least one additional indoor station, and at least one camera to transmit video. Installation hardware and SD card not included.

ABB: Power & Productivity For A Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

• Manufacturer Part #:
• H82364-B: Black
• H82364-W: White
• EAN:
• H82364-B (Black): 6955891808782
• H82364-W (White): 6955891808782
• Display size: 7" capacitive touchscreen
• Display resolution: 1024 x 600
• Power Supply: PoE or 24V
• PoE Standard: IEEE802.3 af
• IP Connection: LAN/WLAN
• Mounting Options: Flush mount or surface mount
• Number of pages: 8
• Number of control elements: 64, 8 per page
• Wireless transmission band:
• 802.11 b/g/n: for United States and Europe;
• 802.11a/n: for United States
• Wireless Transmission Power:
• Max. 20 dBm@12 Mbps OFDM 2.4 G
• Max. 20 dBm@12 Mbps OFDM 5.8 G
• KNX & free@home Functions:
• Switch, Dimmer, RGBW control
• Value Slider, Blinds, Fan, Scene, Display, RTC Control Frame
• Page Link
• Audio Control
• Other Functions:
• Door Communication
• Fault + Alarm Messages
• Scene Actuators, Presence simulation, Time Programs, Logic Functions
• RTC Internal
• Operating Temperature: -14° to 131°F (-10° to 55°C)
• Ratings and Certifications: IP 30
• Dimensions: (L x W x D) : 7.79 x 6.39 x 0.66 inches (149.8 x 198.5 x 17 mm)
• Warranty: 2 Year
