ABB-Welcome IP Round Push Button with NFC/IC
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Round Pushbutton Module For ABB-Welcome IP Door Entry Systems
The ABB-Welcome IP Round Pushbutton Module installs in a custom ABB-Welcome IP outdoor station to allow a visitor at the door to initiate a call with an indoor station or to unlock a door in your ABB-Welcome IP System. The module has a built-in proximity card reader (NFC or IC), and is available with one, two, or three buttons.
- Button(s) initiate calls to indoor stations in the ABB-Welcome IP Door Entry System
- Each button calls either one station or one entire residence
- Opens door by proximity card/tag (NFC or IC)
- Backlit nameplate next to button(s) offers labelling option
- High-quality nameplate printing through supporting software
- Easily snaps into place with other ABB-Welcome IP modules

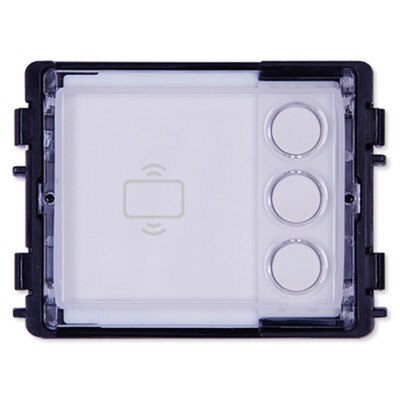

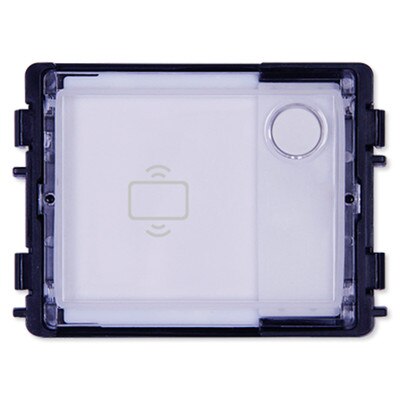

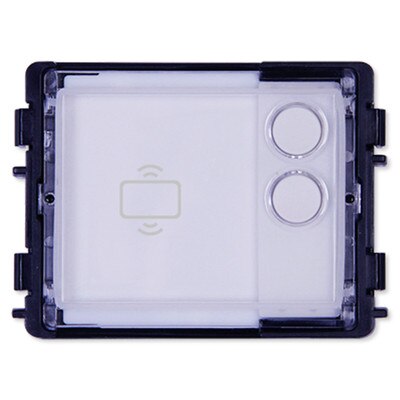

Available Options: 1-Button, 2-Button, 3-Button
Three different options are available with either a 1-button, 2-button, or 3-button pushbutton module. When using either the 2-button or 3-button model, you may program one of the additional pushbuttons to trigger an output, such as a switched light, or another indoor station/residence.
At the side of the pushbutton(s) is a backlit nameplate, giving you the option of labeling the button(s). The backlight allows easy use at night. High-quality nameplate printing is accomplished with free downloadable supporting software.
The built-in NFC/IC reader can be used to unlock a connected door lock. When a visitor or resident waves an authorized proximity card/tag (sold separately) in front of the module, the lock release is activated. The reader is compatible with any third-party NFC/IC cards and tags, not included.
Installation Details
As an outdoor station module, the ABB-Welcome IP Round Pushbutton Module is designed as a modular device that easily snaps into place with other modules, either above or below, depending on your custom outdoor station configuration. It's then installed into an ABB Flush Mounted Box (sold separately) at the size of your choosing. The module should be combined with at least a video/audio module (sold separately) in a multi-gang box. Once your box size is chosen, a same-size ABB Faceplate is also required to finish the custom-built outdoor station.
After the module is connected, it simply snaps into the box and the faceplate snaps over it onto the box. The box can be flush- or surface-mounted with accessories.
Contents
- ABB-Welcome IP Round Push Button Module
- Manual
NOTES: Only compatible with ABB-Welcome IP outdoor stations.
ABB-Welcome IP: Power and Connectivity
Bringing innovative features and design to a new door communication system, ABB-Welcome IP unfolds the true potential of IP technology. It uses the power of LAN connectivity and PoE connections to integrate ABB-Welcome IP devices with other devices, such as IP surveillance cameras, creating one system for all needs. PoE connection makes additional wires needless, making installation easier and quicker.
Depending on available equipment and construction of the building, ABB-Welcome IP devices share the LAN network cables with other systems for exchanging information and providing power to connected ABB-Welcome IP devices. IP gateways can be used when interlacing seperate networks, which is practical when connecting a door system with a home network.
ABB: Power & Productivity For A Better World
ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.
Specifications
- Manufacturer Part #:
- 51382RP1 (1 Button)
- 51382RP2 (2 Button)
- 51382RP3 (3 Button)
- Rating Voltage: 24 V DC
- Operating Voltage Range: 20-27 V DC
- Rating Current:
- 27 V DC, 35 mA
- 24 V DC, 40 mA
- Operating Temperature: -40°F to 131°F ( -40 °C to 55 °C)
- Dimensions: 3.81 x 2.83 x 0.91 inches (97 x 72 x 23 mm)
