ABB-Welcome Outdoor Station Cover Frame

SKU: ABB5102xCFA

Huge Savings! (All Sales Final.)

Please Select Option To View Availability

$60.75 to $311.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Snap-On Cover for the Flush Mounted Box

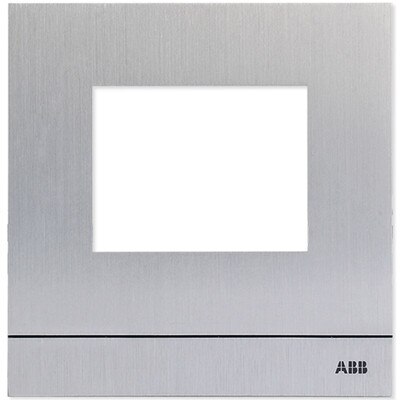

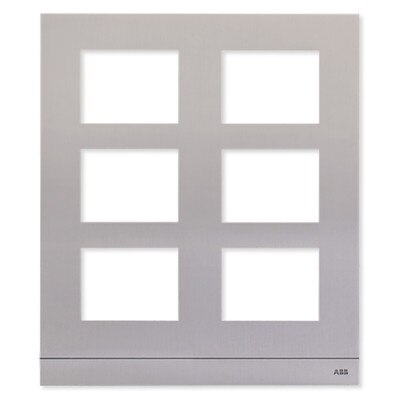

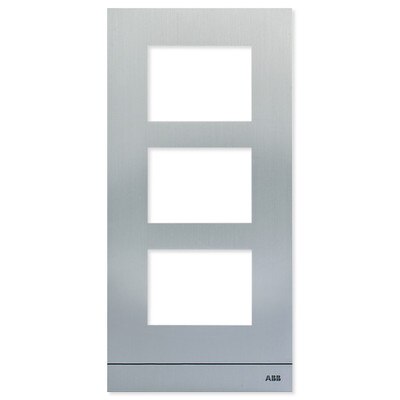

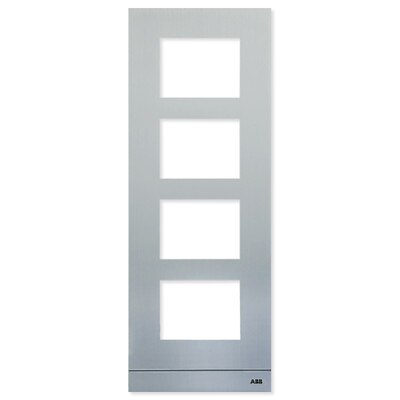

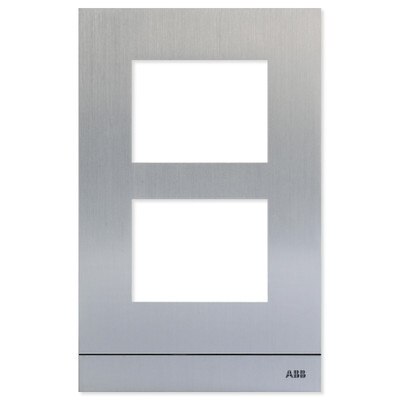

The ABB Aluminum Faceplate provides the cover for any custom-built ABB outdoor station. Available in four different sizes, the faceplate snaps onto the same-size Flush Mounted Box (sold separately), over the installed modules. Its snap-on screwless design requires no tools to attach to the box. A simple tool to dismount the faceplate's end strip is included.

Contents

  • Aluminum Faceplate
  • End Strip Dismount Tool

NOTE: Requires the same-size Flush Mounted Box, sold separately. If surface-mounting the box, a Rain Hood is required, sold separately (optional when flush-mounting).

ABB: Power & Productivity for a Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

Specifications

  • Manufacturer Part #:
    • 1 Gang: 51021CF-A
    • 2 Gang: 51022CF-A
    • 3 Gang: 51023CF-A
    • 4 Gang: 51024CF-A
    • 6 Gang: 51025CF-A
  • Material: Aluminum
  • Size:
    • 1 Gang: 1/1
    • 2 Gang: 1/2
    • 3 Gang: 1/3
    • 4 Gang: 1/4
    • 6 Gang: 1/6
  • Dimensions:
    • 1 Gang: 5.04 x 4.92 x 0.75 inches
    • 2 Gang: 7.91 x 4.92 x 0.75 inches
    • 3 Gang: 10.79 x 4.92 x 0.75 inches
    • 4 Gang: 13.66 x 4.92 x 0.75 inches
    • 6 Gang: 10.79 x 9.06 x 0.75 inches
  • Warranty: 2 Years

System Capacity

  • 9 Guard Units per System
  • 60 Buildings per System
  • 250 Indoor Stations per Building
  • 9 Outdoor Stations per Building (including gate and other outdoor stations)
  • 2 Locks per Outdoor Station
