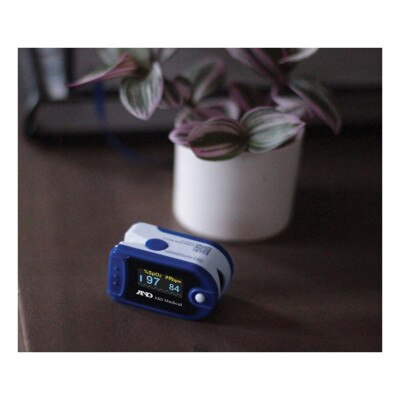

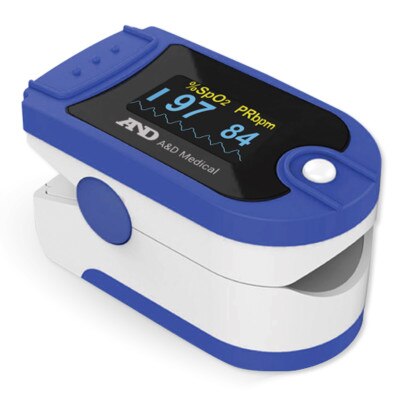

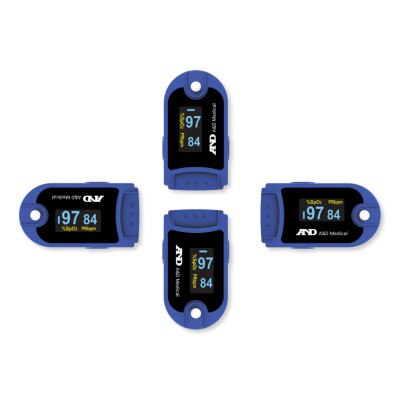

A&D Medical Fingertip Pulse Oximeter

SKU: ANUP200

Order now and we'll ship same business day (if ordered before 3 pm PST).

$25.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Easily and Quickly Check Your O2 and Pulse Levels

Obtain a non-invasive method of checking your O2 levels and pulse rate with the A&D Medical Fingertip Pulse Oximeter! This blood monitor and pulse oximeter provides an easy way to quickly check your blood's O2 levels without pricking your finger. Simply slide a finger into the device and it will immediately display real-time measurements.

  • Fingertip Pulse Oximeter measures oxygen (O2) levels in your blood cells
  • Digital LCD display auto rotates and show real-time measurements
  • One touch operation turns on the oximeter and it automatically turns off after a period of inactivity

Contents

  • Pulse Oximeter
  • Instruction Manual
  • Carrying Case
  • Lanyard
  • (2) AAA Batteries

A&D Telemedicine Sensors

A&D has established a global market leadership position in serving the healthcare industry. A&D's foundation of providing oscillometric blood pressure monitors for both professional and home use since 1980 provided a solid foundation for the development of this next generation line of products. A&D's telemedicine product line was introduced in 1995 in response to growing demand in the research sector for telemedicine solutions. At that time, leading Japanese electronics companies turned to A&D due to our solid reputation as a specialist in innovative, high-quality blood pressure monitoring solutions.

Since then, A&D is recognized as the supplier of choice for the development of telemedicine sensors in partnership with medical research and commercial companies worldwide.

Specifications

  • Manufacturer Part #: UP-200
  • UPC: 093764604133
  • Resolution: SpO2: 1%, Pulse rate: 1 bpm
  • Optical Sensor: Red light (wavelength is 660nm, 6.65mW) Infrared (wavelength is 905nm, 6.75mW)
  • Measurement of Pulse Rate:
    • Measurement Range: 30 bpm – 250 bpm
    • Accuracy: ±2 bpm
  • Measurement Accuracy:
    • Measurement Range: 0-100%
    • Accuracy: 70-100%, ±2%; Below 70% unspecified
  • Power Requirements: 2 x 1.5V AAA alkaline battery (2.6-3.6V)
  • Power Consumption: Smaller than 25 mA
  • Operating Environment:
    • Temperature: 10°C – 40°C
    • Relative humidity: <=75%
    • Atmospheric pressure: 700hPa – 1060hPa
  • Storage Environment:
    • Temperature: -40°C – +60°C
    • Relative humidity: <=95%
    • Atmospheric pressure: 500hPa – 1060hPa
  • Dimensions: 2.3 x 1.3 x 1.3" (5.9 x 3.3 x 3.2 cm)
  • Weight: 1.8 oz (52 g) with the batteries
  • Warranty: 2-Years

Downloads

»A&D UP-200 Pulse Oximeter Spec Sheet (.pdf)
»A&DUP-200 Pulse Oximeter User Manual (.pdf)
»A&D UP-200 Manual de usuario del oxímetro de pulso (.pdf)
