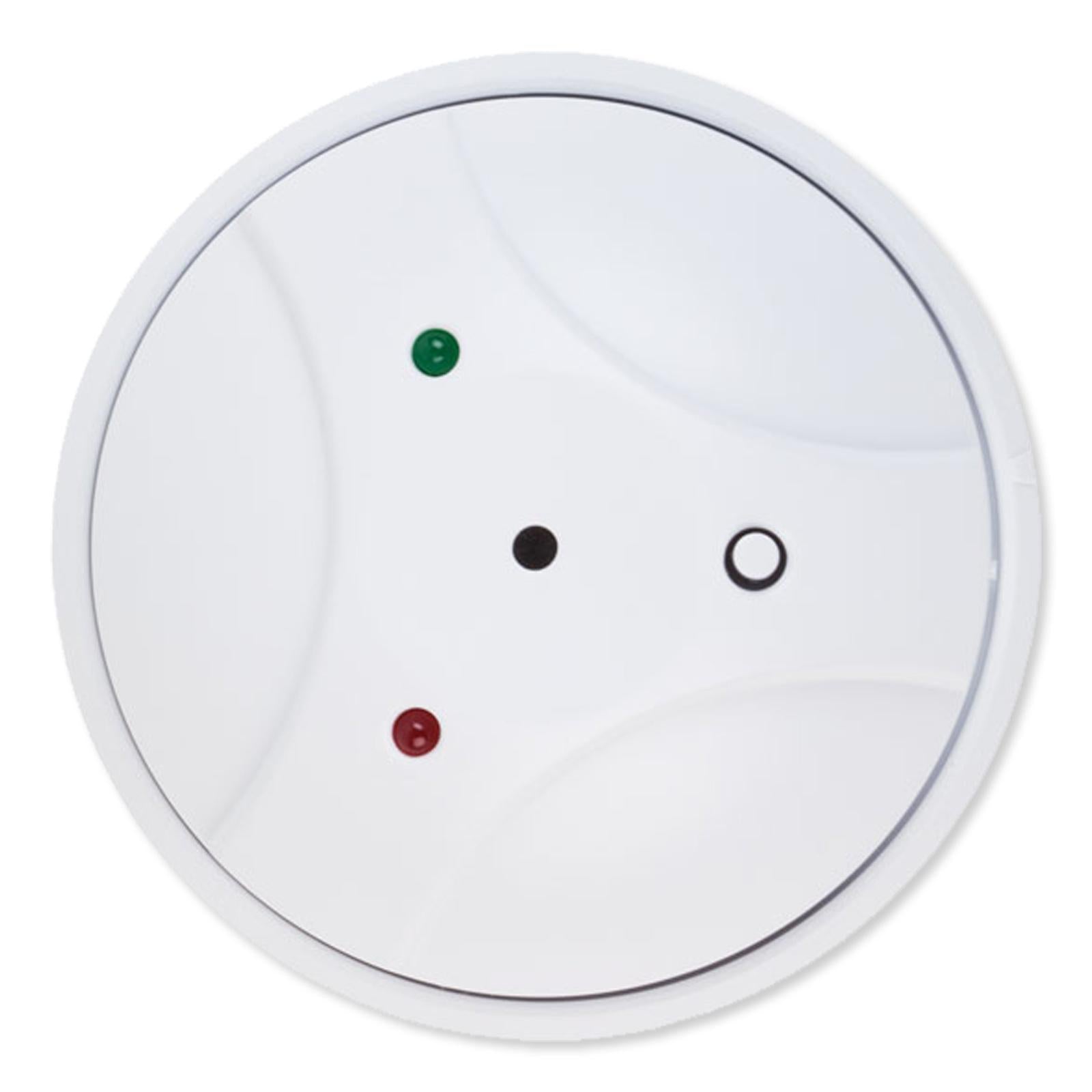

2GIG Wireless Glass Break Detector

SKU: LN2GIGGB1345

Usually ships in 3-5 days.

$73.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Monitor for Shattering Window Glass

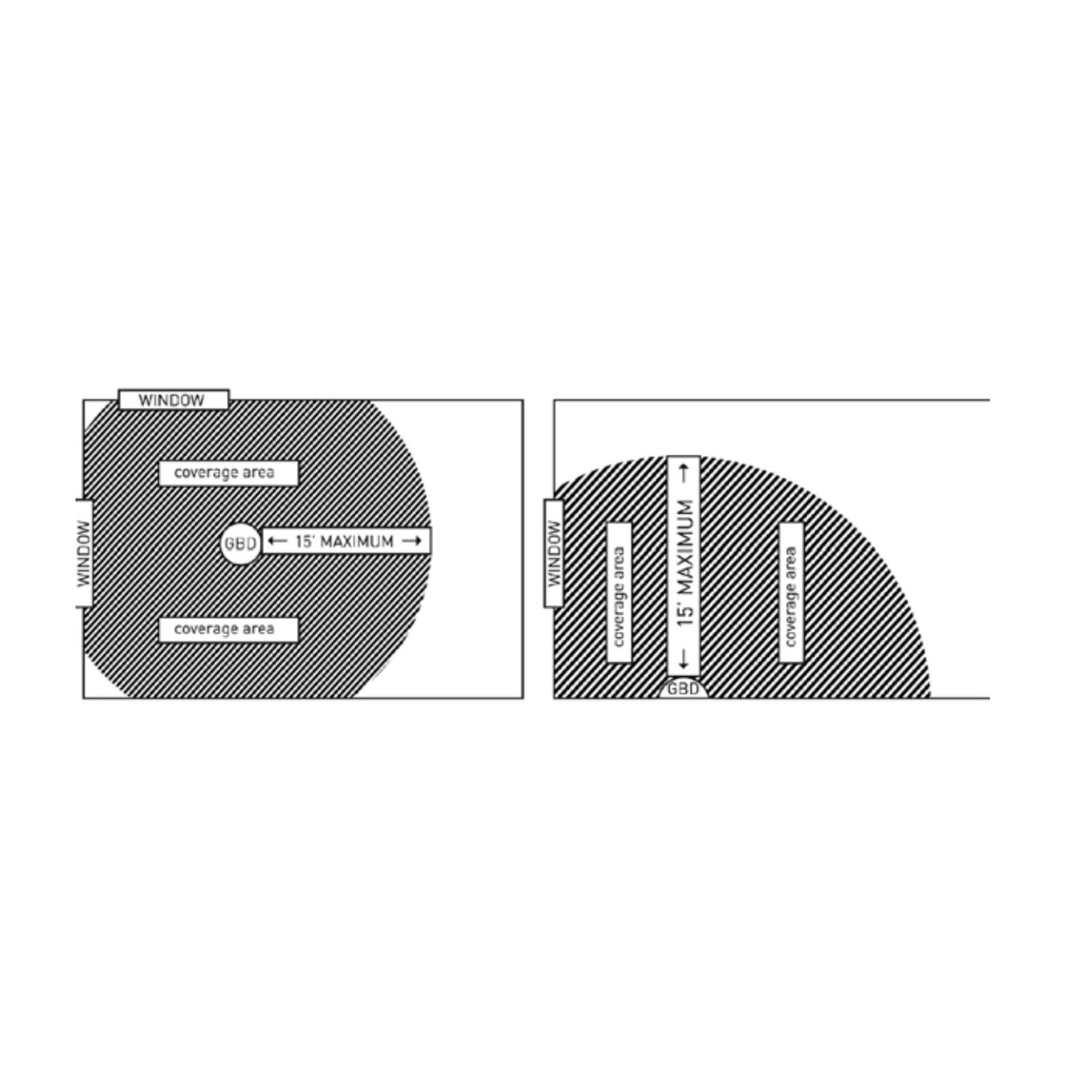

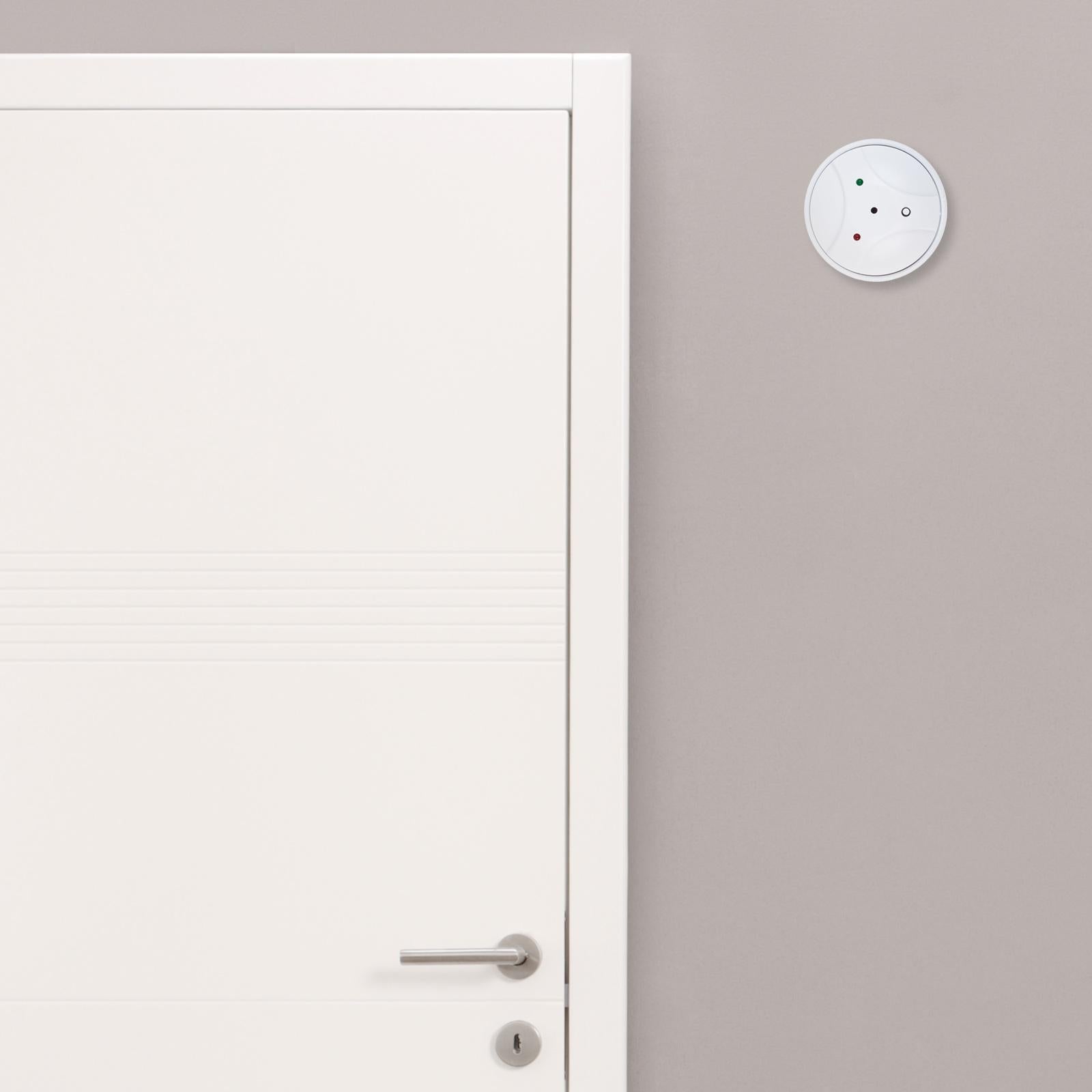

Mount the 2GIG Wireless Glass Break Detector near any window(s) you wish to monitor, and if a window pane breaks, the detector will alert you through your GoControl security system or Vario wireless receiver. The lightweight, battery-powered sensor detects the sound of breaking glass up to 15 feet away. When wall-mounted, it provides a full 360-degree detection field of view, and when ceiling-mounted, 180 degrees. The detector has two LEDs to indicate detection of broken glass, power status, and test mode.

  • Detects the sound and vibration of breaking glass
  • Sensing range up to 15 feet from window(s)
  • Dual shatter recognition technology
  • Easy to install with included hardware
  • Works with 2GIG wireless systems (345 MHz)

To reduce false alarms, the Glass Break Detector uses dual shatter recognition technology to assess possible alarms. The dual technology sensor detects both the acoustical sound of broken glass and the sound vibrations (low frequency soundwaves).

Contents

  • Glass Break Detector
  • Mounting Base
  • (2) Lithium Batteries
  • (3) Screws
  • (3) Wall Anchors
  • Instructions

NOTE: Requires connection to a 2GIG wireless system, such as a GoControl Panel or a Vario wireless-enabled system.

Innovation Drives 2GIG Technology

Now under Nortek's family of Linear products, 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

Specifications

  • Manufacturer Part #: 2GIG-GB1-345
  • Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
  • Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery
  • Transmitter Frequency: 345.000 MHz (crystal controlled)
  • Transmitter Frequency Tolerance: ±15kHz
  • Transmitter Bandwidth: 24kHz
  • Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
  • Unique ID Codes: Over one million different code combinations
  • Supervisory Interval: 70 minutes
  • External Input Sampling Current: 20 uA
  • External Input: 24V AC Standard doorbell circuit
  • Sensor Dimensions: 2.57 x 1.17 x 0.63 inches (6.98 x 2.97 x 1.60 cm)
  • Weight: 1.1 ounces (31.2 g), including battery and magnet
  • Housing Material: ABS plastic
  • Color: White
  • Operating Temperature: 14° to 104° F (-10° to 40° C)
  • Relative Humidity: 5 to 95 percent Non-Condensing
  • Battery: One Panasonic CR2032 or equivalent Lithium battery (installed)
  • Included Accessories: Four Phillip's flat-head screws
  • Warranty: 2-Year Limited
