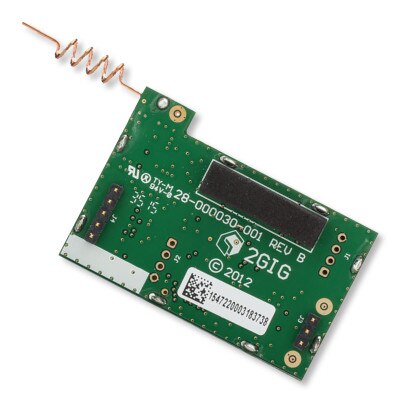

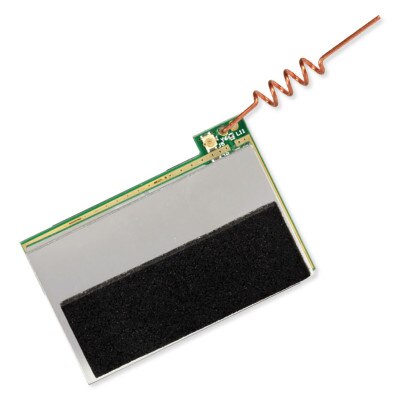

2GIG GC2e 900 MHz Transceiver and 345 MHz Receiver for eSeries Sensors and TS1

Enable Bi-Directional Communication With The 2GIG-TS1 Keypad & IMAGE1

The 2GIG 900 MHz Transceiver and 345 MHz Receiver is specifically designed to work with any 2GIG GC2e panel. It's easy to install and replaces the GC2e existing 345 MHz receiver to provide both a 900 MHz transceiver and 345 MHz receiver to support eSeries encrypted 345 sensors, legacy 345 sensors, the 2GIG-TS1 Wireless Touchscreen Keypad, and the IMAGE1.

• Only compatible with the GC2e panels
• Replaces existing 345 MHz receiver and provides both a 900 MHz transceiver and 345 MHz receiver
• Supports legacy 345 sensors, eSeries encrypted 345 sensors, the 2GIG-TS1 Wireless Touchscreen Keypad, and the IMAGE1
• Easy to install

Contents

• 2GIG-XCVR2e-345 (345MHz/900MHz Transceiver)
• Manual

NOTE: Requires GC2e security panel with firmware 1.23 or later.

Innovation Drives 2GIG Technology

Now under Nortek's family of Linear products, 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, and has won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-XCVR2e-345
• UPC: 017082148346
• Wireless: 900 MHz transceiver, 345 MHz receiver
• Software Requirements: GC2e security panel with firmware 1.23 or later
• Supports: Legacy 345 sensors, eSeries encrypted 345 sensors, the 2GIG-TS1 Wireless Touchscreen Keypad, and the IMAGE1
