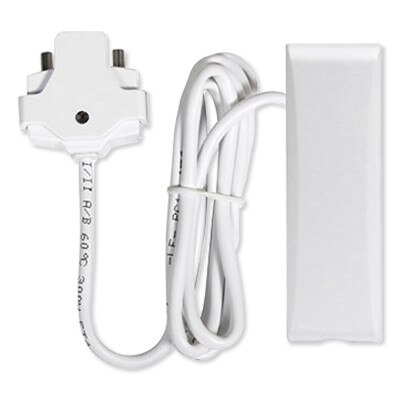

2GIG Dual Flood/Temperature Sensor

Monitor Flood or Excessive Change in Temperature

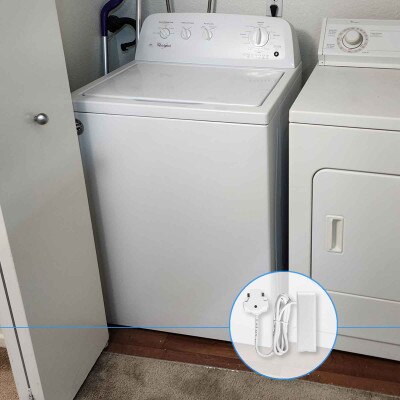

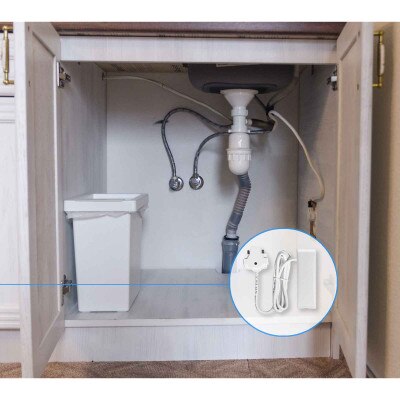

Monitor for water leaks and extreme temperatures within a selected area of your home or business with the 2GIG Dual Flood/Temperature Sensor. The sensor works with GC2 and GC3 security panels (sold separately). It can be placed near water-using appliances such as a water heater, sink, or washing machine to detect water leakage as soon as it occurs. To monitor ambient temperature, place the sensor within an area that needs to stay at certain temperature, such as a server room or computer lab, where a cold temperature is ideal.

• Monitors wet/dry conditions and ambient temperature
• Battery-powered, no wiring required
• Wireless range up to 275 feet
• Can also detect clean/dirty fresh water, salt water, or tap water
• Includes lithium battery (5 year battery life)
• Works with GC2 and GC3 security panels
• ETL listed

When the dual flood/temperature sensor detects standing water (for 3 minutes) it will send a wet alarm transmission to the GoControl security panel (sold separately). When it no longer senses liquid (for 3 minutes) it will send a restore (dry) report. It will also send a trouble alert to the panel if the ambient room temperature exceeds 95° F or falls below 42° F.

Notes: Requires Firmware Version 1.14 or later for GC2 panel and 3.1 or later for GC3

Innovation Drives 2GIG Technology

Now under Nortek's family of Linear products, 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-FT1-345
• Wireless Signal Range: 275 ft. (80 m) open-air with Wireless Control Panel
• Code Outputs: Alarm; Alarm Restore; Supervisory Low Battery; Tamper; Tamper Restore; Trouble; Trouble Restore
• Transmitter Frequency: 345 MHz (crystal controlled)
• Supervisory Interval: 70 minutes
• Battery: CR 2.3V Lithium (included)
• Battery Life: 5 Years
• Housing Material: ABS Plastic
• Dimensions:
• Sensor Probe: 2.92(H) x 0.94(W) x 0.85(D) inches (74.17 x 23.88 x 21.59 mm)
• Sensor Probe in Probe Bracket: 1.46(H) x 1.54(W) x 0.57(D) inches (37.08 x 39.12 x 14.48 mm)
• Cord between Sensor and Probe: 45-inch cord with 0.169-inch diameter (114.3 cord, 4.29mm diameter)
• Warranty: 2-Year Limited
