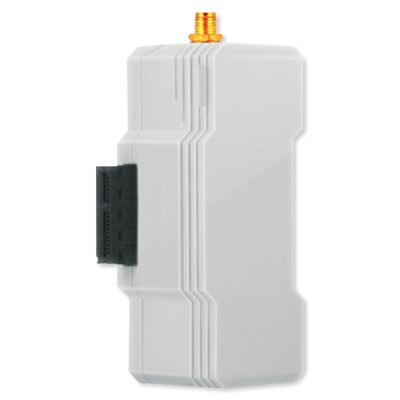

Zipato Zipabox Z-Wave US Expansion Module

Connect To All Z-Wave Enabled Devices

The Zipato Zipabox Z-Wave US Expansion Module enables the Zipabox2 to seamlessly communicate with all Z-Wave friendly devices. It snaps into an expansion slot of the Zipabox2 and will integrate all of your Z-Wave enabled devices into your home automation network.

• Allows Zipabox2 to seamlessly communicate with all Z-Wave enabled devices
• Integrates Z-Wave enabled devices into your home automation network
• Easily snaps into a Zipabox expansion slot
• 1 status LED
• 1 year standard warranty

Installation Details

This device is meant for mounting only with the Zipato Zipabox. Disconnect the Zipabox from the power supply and align the connector of Z-Wave expansion module to expansion Slot 2 of the Zipabox (or to the module connected into Slot 2). Then join the module and Zipabox together until the gap between them is completely closed. Connect the Zipabox to a power supply.

Contents

• Zipabox Z-Wave US Expansion Module
• Manual

NOTE: Requires connection to the Zipato Zipabox or Zipabox2.

Security ' Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!

• Manufacturer Part #: ZBM.ZWUS
• I/O ' LEDS: 1 status LED
• Operating Temperature Range: 14°F to 104°F (-10°C to 40°C)
• Humidity: 5% to 95% non-condensing
• Storage: -13°F to 158°F (-25°C to 70°C)
• Dimensions: 1.2(W) x 3.4(H) x 1.8 in (29 x 87 x 46 mm)
• Certifications: EMC, FCC, CE
• Warranty: 1 Year

»Zipato ZBM.ZWUS Zipabox Z-Wave US Expansion Module User Manual (.pdf)
