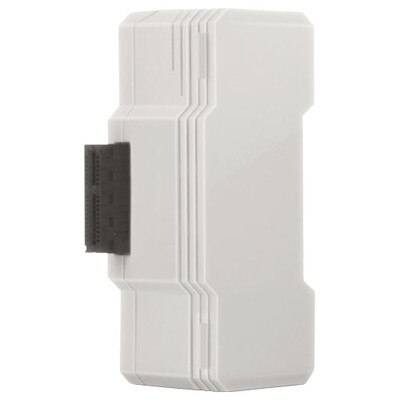

Zipato Zipabox Serial Expansion Module

Adds Serial PinOuts To Zipato

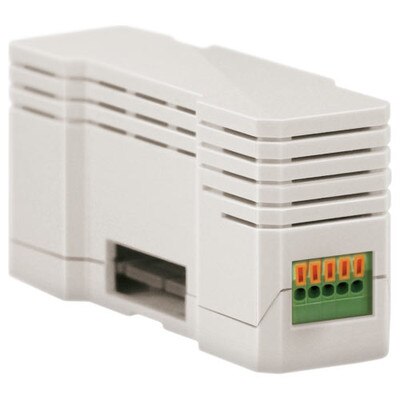

You can integrate a variety of serial devices into your Zipato system with the Zipato Zipabox Serial Module. The module has five different pinouts: RS-232-RX, RS-232-TX, RS-485-A. RS-485-B, and COM. It snaps into a Zipato expansion slot to immediately enable serial communication. Another module can be snapped onto the Serial Module's expansion slot.

• Adds 5 serial pinouts to Zipato
• Snaps into expansion slot
• Slot for another expansion module

Security & Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!

• Communication Frequency: 433 MHz
• Wireless Range: Up to 100 feet (30m) indoors, 200 feet (70m) line of sight
• Power Supply: Receives power from Zipabox
• Mounting: Snaps into expansion slot of Zipabox
• Dimensions: 29 x 87 x 46 mm (without antenna)
• Weight: 62g (with antenna)
• Color: White
• Temperature Range:
• Operating: 0 to 40° C (32 to 104° F)
• Storage: -25 to 70° C (-13 to 158° F)
• Humidity: 5 to 95 percent non-condensing
• Regulatory Compliance (pending):
• Safety: UL
• EMC: FCC, CE
• RoHS
• Warranty: 1 Year

»Zipato ZBMSERIALV1 Zipabox Serial Expansion Module Installation Manual (.pdf)
