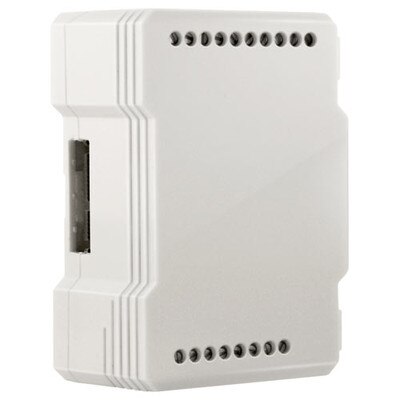

Zipato Zipabox Security Expansion Module

Connects Wired Security Devices To Zipato

Integrate wired security sensors and accessories into your Zipato control system by adding the Zipato Zipabox Security Module. The module snaps into a Zipato expansion slot to immediately add a variety of wired inputs. Another expansion module can be snapped onto the Security Module.

• Adds wired inputs to Zipato
• Snaps into expansion slot
• Outputs can power connected devices
• Input for optional siren/bell

The expansion security module features six zone inputs, one supervised siren output, one siren input, one solid state relay PGM output, and one general purpose serial port (user-selectable between RS-232 and half-duplex RS-485 mode). The PGM output offers user-selectable positive or negative triggering.

The module also has a supervised auxiliary power output and a lead-acid battery charger, allowing you to power connected devices. Up to four Security Modules can be added to the Zipabox for up to 24 additional zone inputs.

Security & Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!

Product Features

• 6 on-board wire zones
• 1 siren input
• 1 on-board solid state relay PGM output, negative or positive triggering (user selectable)
• 1 supervised bell/siren output
• 1 supervised auxiliary power output
• 1 general purpose serial port
• 1 lead-acid battery charger

Technical Details

• Power: Powered by Zipabox
• Battery: External 12VDC, 7Ah minimum
• Aux. Power: 12VDC 600mA
• Bell/Siren Out: 800mA
• Siren In: 12VDC, 20mA
• PGM Out: 100mA solid state relay with selectable trigger
• Dimensions: 86(L) x 55(W) x 48(H) mm
• Color: White
• Temperature Range:
• Operating: 0 to 40° C (32 to 104° F)
• Storage: -25 to 70° C (-13 to 158° F)
• Humidity: 5 to 95 percent non-condensing
• Regulatory Compliance (pending):
• Safety: UL
• EMC: FCC, CE
• RoHS
• Warranty: 1 Year

»Zipato ZBMSECURITYV1 Zipabox Security Module Spec Sheet (.pdf)
