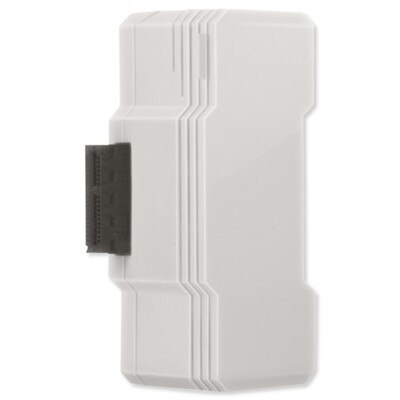

Zipato Zipabox P1 Expansion Module

Connect Your P1 Energy Meter to the Zipabox

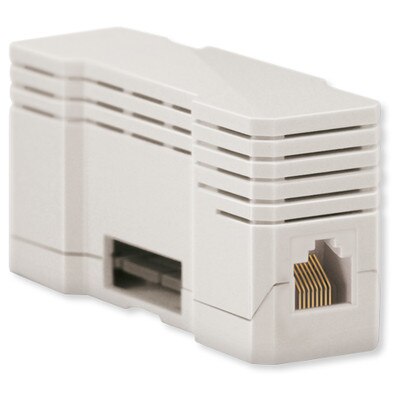

Integrate your energy meter into your Zipato system with the Zipato Zipabox P1 Expansion Module. This add-on module snaps into a Zipato Zipabox expansion slot and provides a standard P1 port, allowing a meter that supports the P1 standard to connect via the included RJ-11 cable. Once your meter is integrated with Zipato, you can monitor and control your household energy consumption from anywhere, anytime.

• Allows connection of a P1 energy meter to the Zipabox
• Enables remote energy monitoring
• Includes RJ-11 cable for meter connection to P1 port

Installation Details

This device is meant for mounting only with Zipabox. The P1 Expansion Module must always be installed in expansion slot 2 of the Zipabox, or if you have another module already connected to slot 2, you can connect the P1 Module onto that module. Other modules can also be attached to the P1 Module.

Contents

• P1 Expansion Module
• RJ-11 Cable

Notes

• Requires connection to the Zipato Zipabox and a P1 meter, both sold separately.
• The values that a P1 Expansion Module can report is dependent upon the type of your metering system and which values it is setup to display.

Security & Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!

• Manufacturer Part #: ZBM.P1
• Communication Protocol: P1
• Power: Powered by Zipabox
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Operating Humidity: 0 to 95 percent RH
• Dimensions: 1.14 x 3.43 x 1.81 inches (29 x 87 x 46 mm)
• Weight: 2.19 ounces (62g)
• Approvals: FCC, CE
• Warranty: 1 Year

»Zipato ZBM.P1 Zipabox P1 Module User Manual (.pdf)
