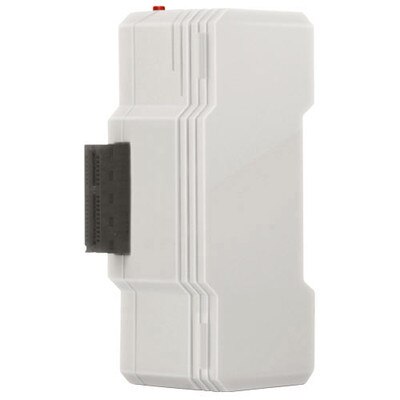

Zipato Zipabox KNX Expansion Module

Adds KNX Support To Zipato

You can integrate up to 250 KNX devices into your Zipato system by using the Zipato Zipabox KNX Module. The module links the Zipabox main unit with a KNX BAOS Module 820 (not included). This allows the Zipabox to interface with KNX/EIB both at the telegraph and data point levels (KNX Application Layer).

• Adds KNX capability to Zipato
• Supports up to 250 devices
• Allows ETS configuration
• Reports status via two-way communication

The KNX module communicates with the BAOS Module 820 via the FT1.2 serial protocol. Once setup, you can remotely manage KNX devices through the Zipato web portal and control any device within your KNX network. The module snaps into a Zipato expansion slot, and another module can be snapped onto the KNX Module's expansion slot.

NOTE: Requires a KNX BAOS Module 820 (not included) to connect the Zipabox to your KNX network.

Security & Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!

• Dimensions: 86(L) x 30(W) x 48(H) mm
• Color: White
• Communication Protocol: KNX Bus
• External Supply: 3.3-5V DC
• Bus Current Consumption: 9 mA
• Standby Power Consumption:< 0.5W
• Ambient Temperature During Operation: -5 to 45° C
• Storage Temperature: -25 to 70° C
• Relative Humidity: 5 to 93 percent, non-condensing
• Regulatory Compliance (pending):
• Safety: UL
• EMC: FCC, CE
• RoHS
• Safety extra low voltage: SELV DC 24 V
• Warranty: 1 Year

Electrical Safety

• Protection Classification: EN 60529 IP 20
• Safety Extra Low Voltage: SELV DC 30 V
• Galvanic Isolation: 2,5 kV DC

EMC Requirements

• Complies with EN 50090-2-2 and EN 50491-5-2 CE norm
• Complies with the EMC regulations (residential and functional buildings) and low voltage directive Certification
• KNX

Mechanical

• Housing: Plastic
• Weight: approx. 45 g Indicator
• LED: Signal-LED (green) for KNX-Connection Power supply
• Current Consumption: ca. 10 mA

Protocol

• Frame Format: FT1.2 (IEC 870-5-1 and 870-5-2)
• Protocol Telegrams: EMI2
• Protocol Data Points: BAOS Binary V1
• Capacity: Up to 250 group objects and 250 parameters

»Zipato ZBMKNXV1 Zipabox KNX Expansion Module Installation Manual (.pdf)
