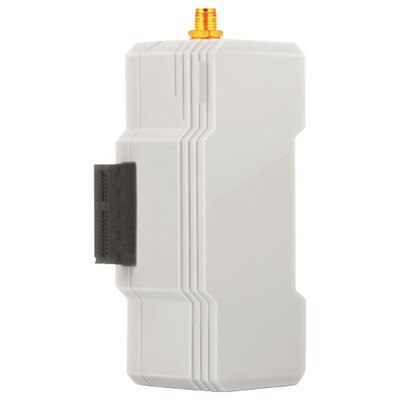

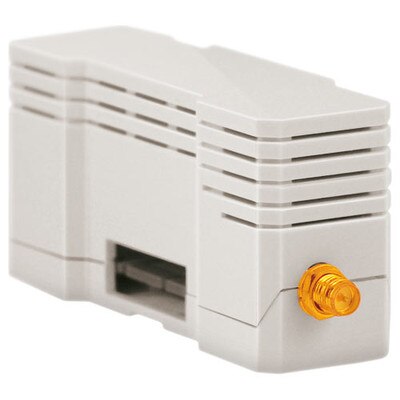

Zipato Zipabox 433 Mhz Expansion Module

Adds 433 MHz Support To Zipato

Integrate devices that operate on the 433.92 MHz frequency into your Zipato control system by adding the Zipato Zipabox 433 MHz Module. The module supports LightwaveRF, X10, CoCo, Chacon, and Oregon Scientific devices. The module snaps into a Zipato expansion slot to immediately enable 433.92 MHz communication. Another expansion module can be snapped onto the 433 MHz Module.

Compatible Technologies:

• LightwaveRF
• X10
• CoCo
• Chacon
• Oregon Scientific

Contents

• Expansion Module
• 433 MHz Antenna

Security & Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!

• Compatible Technologies: LightwaveRF, X10, CoCo, Chacon, Oregon Scientific
• Communication Frequency: 433 MHz
• Wireless Range: Up to 100 feet (30m) indoors, 200 feet (70m) line of sight
• Power Supply: Receives power from Zipabox
• Dimensions: 29 x 87 x 46 mm (without antenna)
• Weight: 62g (with antenna)
• Color: White
• Temperature Range:
• Operating: 0 to 40° C (32 to 104° F)
• Storage: -25 to 70° C (-13 to 158° F)
• Humidity: 5 to 95 percent non-condensing
• Regulatory Compliance (pending):
• Safety: UL
• EMC: FCC, CE
• RoHS
• Warranty: 1 Year

»Zipato ZBM433V2 Zipabox 433 Mhz Expansion Module Installation Manual (.pdf)
